(022A) - ELECTRICAL FRAME FRONT

Запчасти Case IH WDX901 (022A) - ELECTRICAL FRAME FRONT (55) - ELECTRICAL SYSTEMS

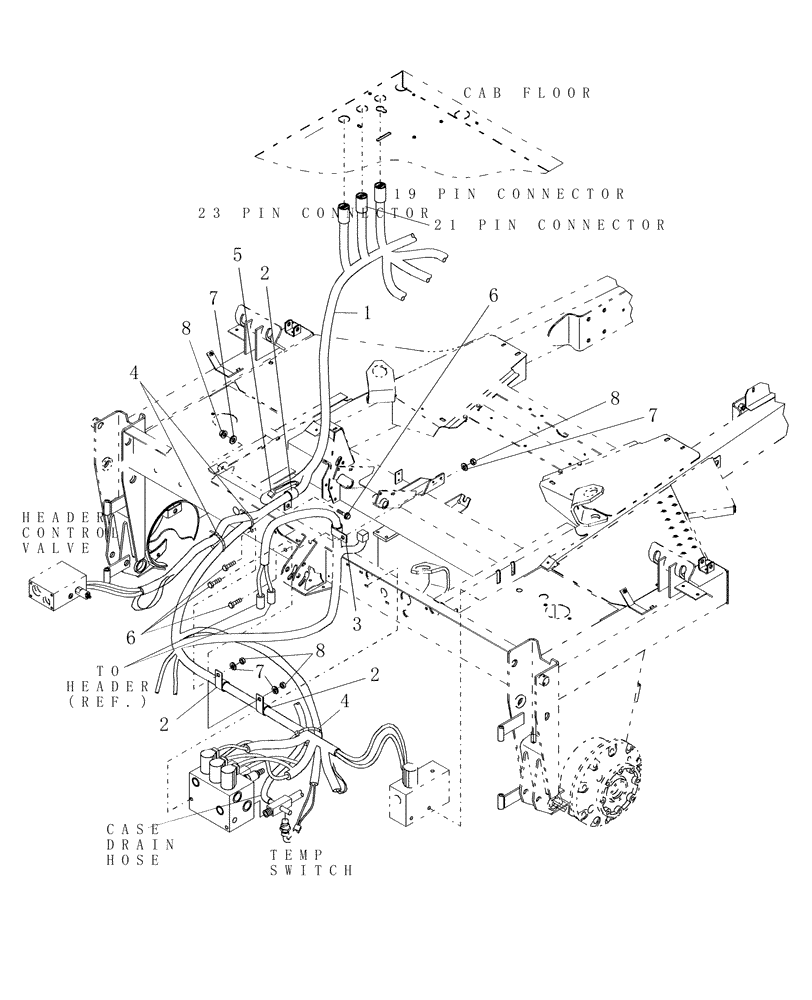

Схема запчастей Case IH WDX901 - (022A) - ELECTRICAL FRAME FRONT (55) - ELECTRICAL SYSTEMS
temp
switch
7
23 pin connector
to
case
1
header
8
hose
7
2
19 pin connector
drain
4
cab floor
valve
2
header
8
4
21 pin connector
3
6
control
5
2
(ref.)
7
6
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86626486

WIRE HARNESS

Main Frame

1шт.

2

700514

CLAMP,3.8mm, Coat, M8 Bolt

.94" x 5/16" Bolt

3шт.

3

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

5

86551044

COVER

1шт.

6

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

7

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

8

425-104

NUT,1/4"-20, Cl 5

4шт.
