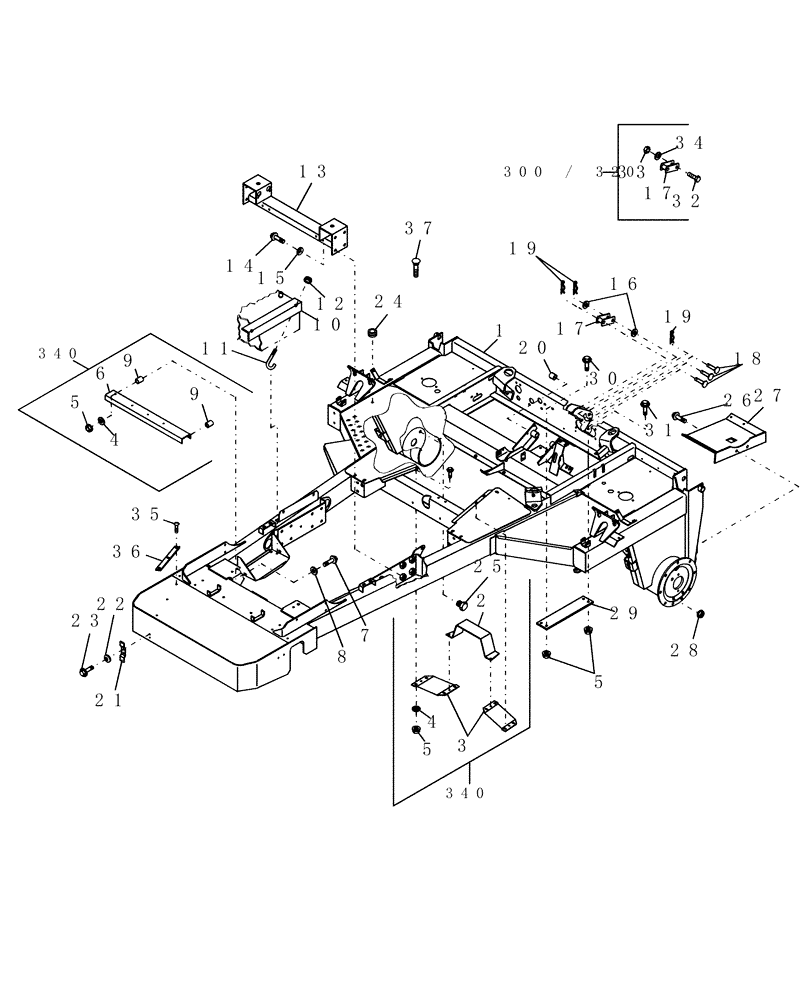

Запчасти Case IH WDX901 (001) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

86636471

FRAME ASSY

Includes: (2) Ref 20

1шт.

2

86551305

SUPPORT

1шт.

WDX1701- Only

1шт.

3

86535200

BRACKET

2шт.

WDX1701- Only

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

WDX1701- Only

1шт.

5

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

(4) WDX901 & WDX1101; (10) WDX1701

1шт.

6

86634113

CHANNEL

1шт.

WDX1701- Only

1шт.

7

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

WDX1701- Only

1шт.

8

495-21044

WASHER,3/8"

2шт.

WDX1701- Only

1шт.

9

86625698

TUBE,1" OD x 1.50" L

2шт.

WDX1701- Only

1шт.

10

794967

SUPPORT

2шт.

11

798180

BOLT

J, 3/8"-16 x 10", Battery Hold Down

4шт.

12

231-5346

FLANGE NUT,Flg, 3/8"-16

4шт.

13

86634114

SUPPORT

1шт.

14

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

8шт.

15

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

16

495-21081

WASHER,3/4"

2шт.

17

86625549

CONNECTING LINK

1шт.

18

86510381

PIN

3шт.

19

86000109

COTTER PIN

1/8" x 3-1/4"

3шт.

20

86628558

BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L

Component of Ref., 1

2шт.

21

86634164

BRACKET

1шт.

22

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

23

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

24

46288

GROMMET

2шт.

25

214389

PLUG,3/4" - 16 ORB

1шт.

26

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

27

86625351

SHOE

2шт.

28

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

29

86625349

PLATE

1шт.

30

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

31

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

32

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

WDX901 & WDX1101 Only

1шт.

33

425-1012

NUT,3/4"-10, G5

1шт.

WDX901 & WDX1101 Only

1шт.

34

492-11075

LOCK WASHER,3/4"

1шт.

WDX901 & WDX1101 Only

1шт.

35

86616032

SELF-TAP SCREW,Pan HD, 1/4" - 20 x 1"

3шт.

36

86567543

WEAR STRIP

1шт.

37

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

WDX1701- Only

1шт.
