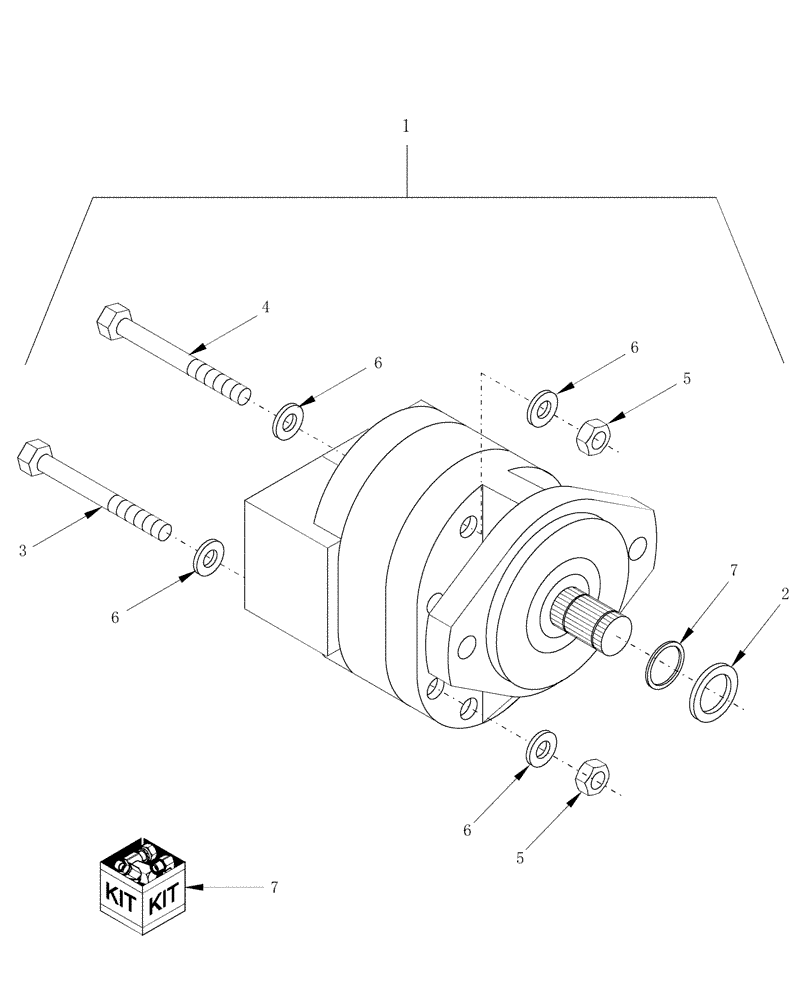

Запчасти Case IH WDX901 (050C) - GEAR PUMP, HYDRAULIC HEADER DRIVE (35) - HYDRAULIC SYSTEMS

1

86503291

HYDRAULIC PUMP

Includes: Ref. 2 - 6

1шт.

87588019R

REMAN-HYD PUMP

WDX1101 (10/01-11/04),WDX901 (12/01-11/04) Reman for New P/N 86503291

1шт.

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

100-21150

SNAP RING,1.50", Int, #150

1шт.

3

86520697

BOLT,Hex, 7/16" - 20 x 3 3/4", Gr 8

4шт.

4

86050014

BOLT,Hex, 7/16" - 20 x 3", Gr 8

4шт.

5

429-117

NUT,7/16"-20, G8

12шт.

6

9790555

WASHER,11.79mm ID x 19.43mm OD x 3.07mm Thk

Hardened, 7/16"

12шт.

7

86529048

SEAL KIT

1шт.
