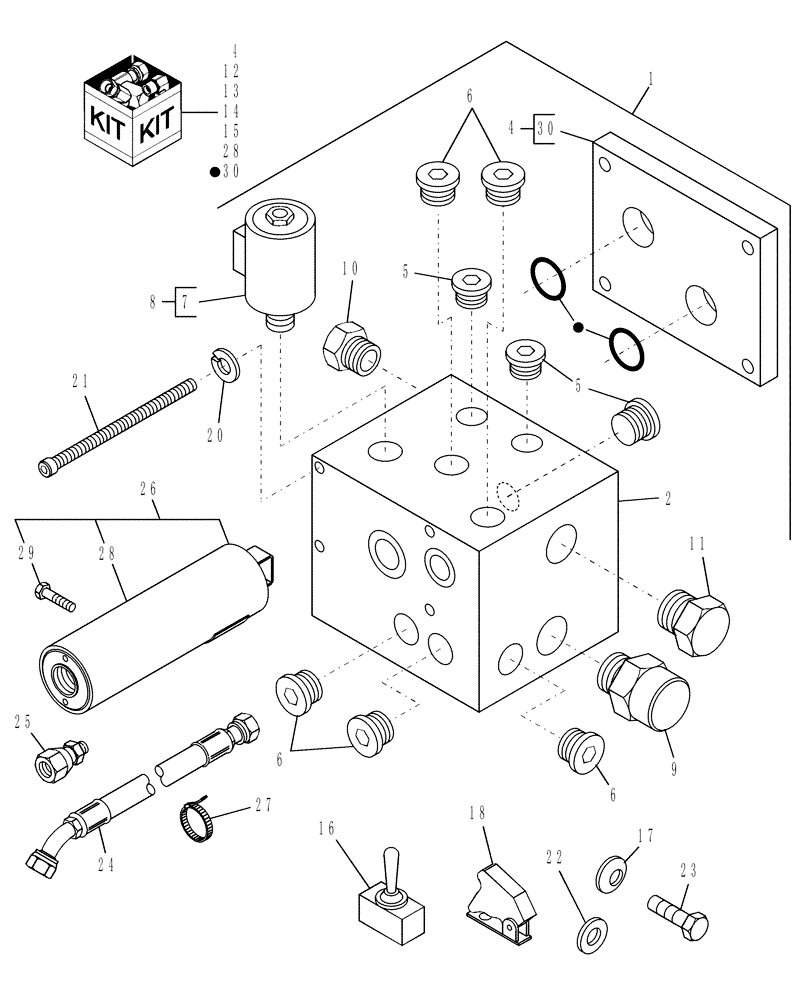

Запчасти Case IH WDX901 (040B) - HEADER REVERSER KIT (35) - HYDRAULIC SYSTEMS
№
Артикул
Название
Примечание
Количество
W0
ORDER WHOLEGOODS
Kit Includes: All Ref. 1 - 30 & Instructions
1шт.
1
87045652
HYDRAULIC VALVE
Includes: Ref. 2 - 11
1шт.
2
NSS
NOT SOLD SEPARAT
Block
1шт.
3
NSS
NOT SOLD SEPARAT
Plug - Not Illustrated
9шт.
4
87045651
KIT
Plate, Includes: Spacer Plate & Ref. 30
1шт.
5
9625178
PLUG,9/16" - 18 ORB
Incl. O-Ring
3шт.
6
278548
PLUG,Hex, 7/16"-20 ORB
Incl O-Ring
5шт.
6
86642448
O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro
5шт.
7
9605345
COIL
1шт.
8
86588828
SOLENOID VALVE
Valve, SV10-43-0-P-00
1шт.
Use Ref. 12 Seal Kit
1шт.
9
86588827
HYDRAULIC VALVE
PD-16-4401-0-P-30
1шт.
Use Ref. 13 Seal Kit
1шт.
10
86600265
HYDRAULIC VALVE
Cartridge, EV16-S3403-0-P-70
1шт.
Use Ref. 11 Seal Kit
1шт.
11
86588825
HYDRAULIC VALVE
EP16-S35-0-P-10
1шт.
Use Ref. 15 Seal Kit
1шт.
12
86588831
SEAL KIT
1шт.
13
86588830
SEAL KIT
1шт.
14
86509748
SEAL KIT
1шт.
15
86588829
SEAL KIT
1шт.
16
86536110
TOGGLE SWITCH
1шт.
17
86513238
LOCK WASHER,.515” ID x 1.070” OD x .120” TK
Belleville, 1/2"
1шт.
18
9845112
COVER
Guard
1шт.
20
80681
LOCK WASHER,5/16"
4шт.
21
86613354
HEX SOC SCREW,5/16" - 18 x 6", SST
4шт.
22
86622619
WASHER,0.53" ID x 1.62" OD x 0.25" Thk
1/2" ID x 1-5/8" OD x 1/4" Hardened
1шт.
23
414-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
1шт.
24
87010333
FLEXIBLE HOSE,25.4mm ID x 2108.2mm L, SAE 100R12
83" L
1шт.
24
86618641
HOSE
70-1/2" L
1шт.
25
86611777
SWIVEL CONNECTION
37°
1шт.
26
86600267
ACCUMULATOR
1шт.
27
82012728
COLLAR,50mm - 65mm, Worm Gear
1шт.
28
86610675
SEAL KIT
1шт.
Includes (1) V O-Ring; O-Ring, Valve (2) Back-Up Washer; End Seal, Body; End Seal, Back-Up & PTFE Ring
1шт.
29
440-1108
SCREW,Cross Pan Hd, #10-24 x 1/2"
1шт.
30
86588824
SEAL KIT
Includes: (4) O-Rings
1шт.
Prior To PIN 4/04
1шт.
30
87046305
SEAL KIT
Includes: (4) O-Rings
1шт.
After PIN 4/04
1шт.
Выбрано товаров: 41
