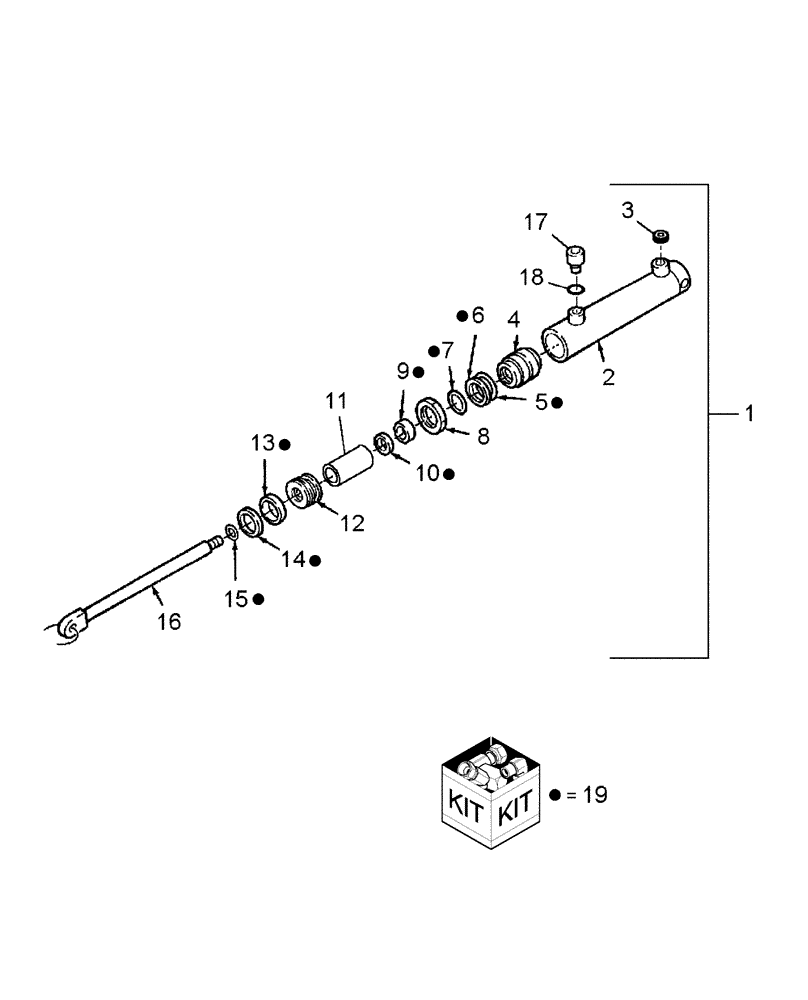

Запчасти Case IH WDX901 (040A[02]) - HYDRAULIC CYLINDER, 86548520, SINGLE HEADER FLOAT KIT (35) - HYDRAULIC SYSTEMS

1

86548520

HYDRAULIC CYLINDER

Includes : Ref 2 thru 18

1шт.

Prior to PIN

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

9612092

ORIFICE

1шт.

4

9826106

CYLINDER HEAD

1шт.

5

14463681

O-RING,31.34mm ID x 3.53" Width

1шт.

6

514099

WASHER,32.16mm ID x 38.16mm OD x 1.27mm Thk

Back-Up, 1.266" ID x .043" Thk

1шт.

7

86516844

SNAP RING,1-19/32" OD

Int, 1.5"

1шт.

8

86516845

BEARING LOCK NUT,Hex, 1-3/8" - 18

Bearing, 1-3/8"-18

1шт.

9

9826108

SEAL,19.28mm ID x 25.2mm OD x 5.03mm Thk

1шт.

10

272471

WIPER SEAL,19.05mm ID x 25.5mm OD x 3.17mm Thk

Wiper

1шт.

11

571755

HUB

1шт.

12

788150

PISTON

1шт.

13

782683

RING

Wear, 1.252" ID x .500" Thk

1шт.

14

782682

SEAL,31.39mm ID x 38.33mm OD x 4.17mm Thk

1шт.

15

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

1шт.

16

9843676

ROD

1шт.

17

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 18

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

19

9826105

REPAIR KIT

1шт.
