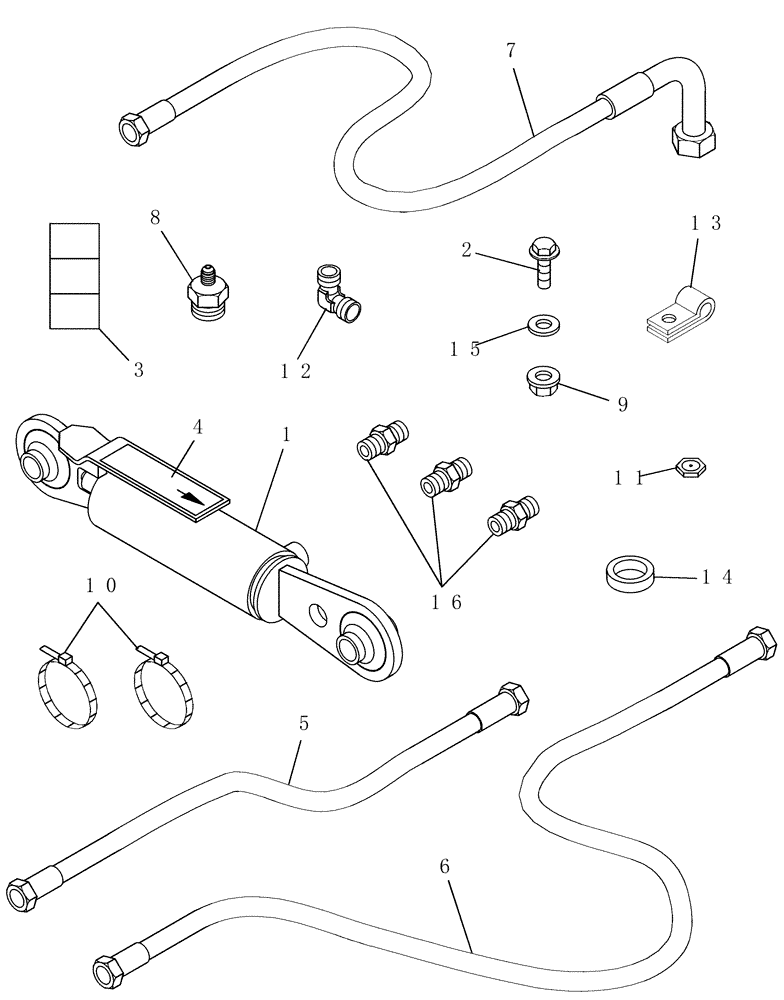

Запчасти Case IH WDX901 (040[02]) - HYDRAULIC HEADER TILT KIT (35) - HYDRAULIC SYSTEMS

86636926

KIT

Hydraulic Header Tilt, Includes: Ref. 1 - 16 & Instructions

1шт.

WDX901-Only

1шт.

86636927

KIT

Hydraulic Header Tilt, Includes: Ref. 1, 3 - 6, 10, 11, 14, 16 & Instructions

1шт.

WDX1101

1шт.

1

86633954

HYDRAULIC CYLINDER

Tilt, Refer to Fig. 040(03)

1шт.

1

87058437R

REMAN-HYD CYLINDER

WDX901 (12/01-11/04), WDX1101 (10/01-11/04), Both CASE IH SELF PROPELLED WINDROWER TRACTOR, Tilt, Prior to PIN, Reman for New PN 86633954

1шт.

1

87058437C

CORE-HYD CYLINDER

Return Number

1шт.

Prior to PIN

1шт.

1

87018040

HYDRAULIC CYLINDER

Tilt, Monarch, Refer to Fig. 040(04)

1шт.

1

87058437R

REMAN-HYD CYLINDER

WDX901 (12/01-11/04), WDX1101 (10/01-11/04), Both CASE IH SELF PROPELLED WINDROWER TRACTOR, Tilt, Monarch, After PIN, Reman for New PN 87018040

1шт.

1

87058437C

CORE-HYD CYLINDER

Return Number

1шт.

After PIN

1шт.

Used after July 1, 2003

1шт.

2

458-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

3

86541453

DECAL

1шт.

4

86541452

DECAL

Tilt

1шт.

5

9821682

FLEXIBLE HOSE,9.65 mm ID x 609.60 mm, SAE 100 R2

1шт.

6

9821461

FLEXIBLE HOSE,9.65 mm ID x 990.60 mm, SAE 100 R1

1шт.

7

9821457

HYDRAULIC HOSE,.375” ID x 84” L

84" Long

1шт.

WDX901-Only

1шт.

8

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

1шт.

WDX901-Only

1шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

10

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

11

261066

ORIFICE,9/16" - 18, 0.813" Orifice

.032"

1шт.

12

218-473

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male JIC

1шт.

WDX901-Only

1шт.

13

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

14

237915

GROMMET

1шт.

15

495-21031

WASHER,1/4"

1шт.

16

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

(3) WDX901; (4) WDX1101

1шт.
