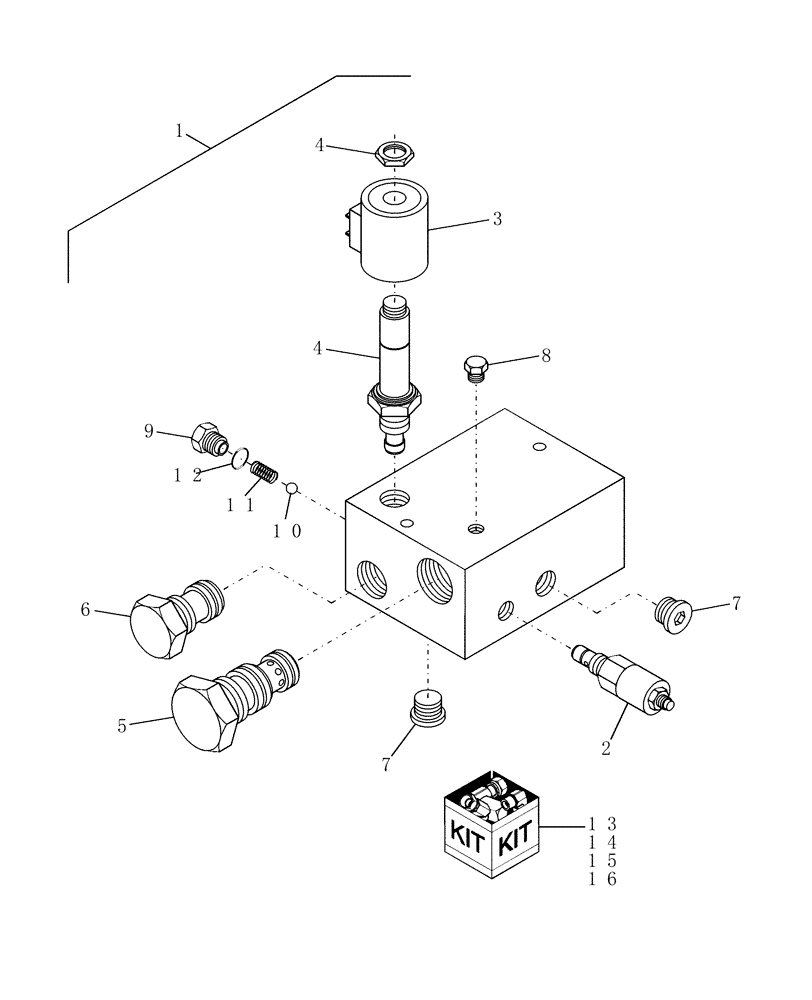

Запчасти Case IH WDX901 (039C) - HYDRAULIC LIFT HEADER CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

86503630

CONTROL VALVE

1шт.

2

86509742

VALVE PRESSURE RELIE

1шт.

3

9605345

COIL

1шт.

4

86509740

ELECTRO-VALVE

1шт.

5

86509741

CONTROL VALVE

Equalization

1шт.

6

86509743

HYDRAULIC VALVE

1шт.

7

214389

PLUG,3/4" - 16 ORB

2шт.

8

278548

PLUG,Hex, 7/16"-20 ORB

1шт.

9

86511077

ADAPTER

1шт.

10

86509744

BALL,8.73mm OD, Gr 25

1шт.

11

86509745

SPRING

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

86509746

SEAL KIT

For Relief Valve, Ref. 2

1шт.

14

87368984

SEAL KIT

For Solenoid Valve, Ref. 4

1шт.

15

86509748

SEAL KIT

For Equalization Valve, Ref. 5

1шт.

16

86509749

SEAL KIT

For Check Valve, Ref. 6

1шт.
