Запчасти Case IH WDX901 (039A[1]) - HYDRAULIC CYLINDER, HEADER LIFT, MONARCH (35) - HYDRAULIC SYSTEMS

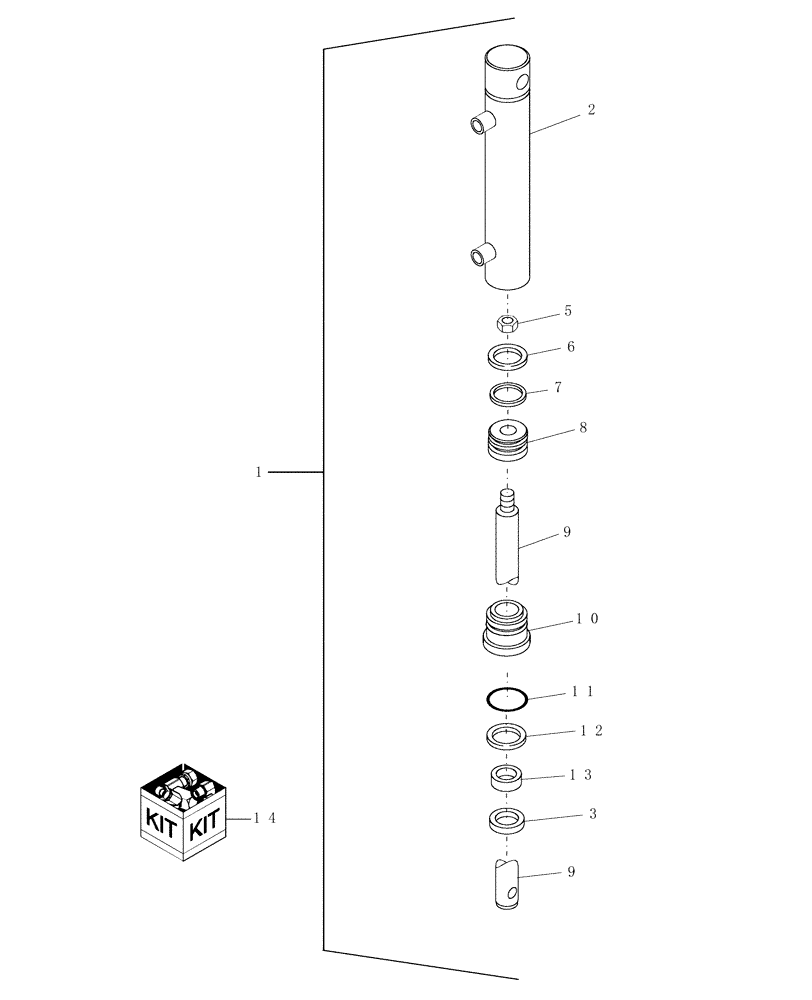

Схема запчастей Case IH WDX901 - (039A[1]) - HYDRAULIC CYLINDER, HEADER LIFT, MONARCH (35) - HYDRAULIC SYSTEMS
8
11
13
12
10
2
3
1
14
6
7
9
5
9

Артикул

Название

Примечание

Количество

1

87018059

CYLINDER ASSY.

Lift, Monarch

2шт.

After PIN HCA0021033 (WDX901), HCA0023031 (WDX1101), HCA0025001 (WDX1701)

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

5

231-46410

LOCK NUT,5/8"-18, GB

1шт.

6

771701

WEAR RING,Split, 50.8mm ID x 57.15mm OD x 9.53mm Thk

Wear, 2.002" ID x .375" Thk

1шт.

7

86570920

SEAL,46.35mm ID x 57.02mm OD x 6.99mm Thk

1шт.

8

87027474

PISTON

1шт.

9

87027478

PISTON ROD

1шт.

10

87027470

HEAD

1шт.

11

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

1шт.

12

86502705

SEAL,50.9mm ID x 56.74mm OD x 1.27mm Thk

Back-Up, 2.022" ID x .043" Thk

1шт.

13

86508637

SEAL

1шт.

14

87027482

SEAL KIT

Includes: Ref. 3, 6, 7, 11, 12, & 13

1шт.

Выбрано товаров: 14
