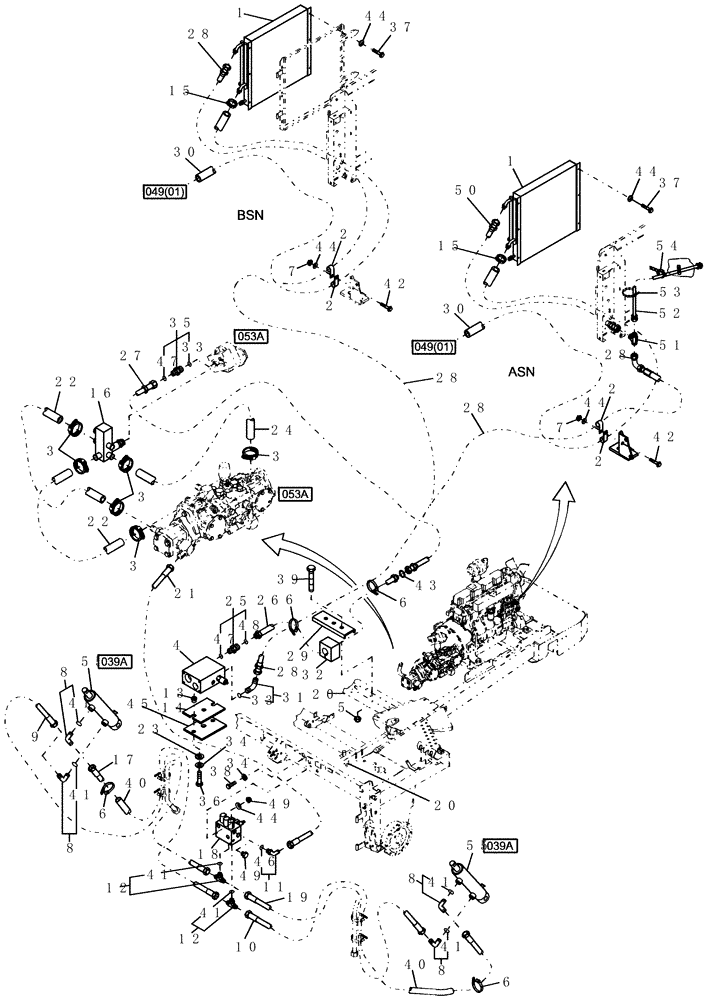

Запчасти Case IH WDX901 (039[01]) - HYDRAULIC HEADER LIFT (35) - HYDRAULIC SYSTEMS

1

86546052

OIL COOLER

1шт.

2

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

3

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

6шт.

4

86503630

CONTROL VALVE

Header, Refer to Fig. 039C

1шт.

5

280736

NUT,5/16"-18, GC

2шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

9шт.

7

425-285

FLANGE NUT,Flg, 5/16"-18, G5

3шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

9

9821469

HOSE,9.65 mm ID x 2032.00 mm, SAE 100 R2

18 UNF Female Swivel Fittings, 37° Flare

1шт.

10

86544242

HOSE,9.65 mm ID x 1651 mm

18 Female Swivel Fittings, 37° Flare

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

12

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

For Draper Head Operation, See Figure Note

1шт.

13

86509920

RUBBER PAD

1шт.

14

247006

RUBBER MOUNTING

Rubber

2шт.

15

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

High Torque

1шт.

16

86600256

MANIFOLD

1шт.

17

86544243

HOSE,9.65 mm ID x 2108.2 mm

18 Female Fittings, 37° Flare

1шт.

18

86618646

VALVE BLOCK

Lift Valve, Refer To Separate Breakdown

1шт.

19

9821474

HOSE,9.65 mm ID x 1524.00 mm, SAE 100 R2

3/8" ID x 7/8" OD x 60", 9/16"-18 UNF Female Swivel Fittings, 37° Flare

1шт.

20

617215

MOLDING

Molded, 72" Long, Serial Range: Cut-Fit

1шт.

21

9821466

FLEXIBLE HOSE,12.70 mm ID x 2209.80 mm, SAE 100 R2

1шт.

22

9821464

FLEXIBLE HOSE,0.75" ID x 47.00", SAE 100 R3

2шт.

23

492-11031

LOCK WASHER,5/16"

2шт.

24

9821527

HOSE

1шт.

25

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1.0 A

1шт.

26

86535587

HYD TUBE

1шт.

27

9810802

HOSE,19.05mm ID x 647.7mm L

1шт.

28

86609459

HOSE

1шт.

29

9846409

CHANNEL

1шт.

30

9604654

HOSE,19.00 mm ID x 2700.00 mm, SAE 100 R3

1шт.

31

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

32

9846668

GROMMET

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

34

495-21038

WASHER,5/16"

4шт.

35

9840329

HYD CONNECTOR

3/4" x 1"

1шт.

36

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

37

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

6шт.

38

413-568

BOLT,Hex, 5/16" - 18 x 4-1/4", Gr 5

2шт.

39

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

40

794839

PROTECTING COVER

1шт.

41

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6шт.

42

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

43

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

44

492-11031

LOCK WASHER,5/16"

9шт.

45

86596293

SPACER

1шт.

46

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

47

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

2шт.

48

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

49

76349

PLUG,9/16" - 18 ORB

1шт.

50

86609460

HOSE

1шт.

51

218-598

TEE,1 5/16"-12 37 Degree

(O-Ring Not Required When Replacing Part)

1шт.

52

86610668

HOSE

1шт.

53

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

54

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

2шт.

55

86621654

HYDRAULIC CYLINDER

Lift, Refer to Fig. 039A

2шт.

Prior to PIN HCA0021032 (WDX901), HCA0023030 (WDX1101)

1шт.

55

87018059

CYLINDER ASSY.

Lift, Monarch, Refer to Fig. 039A[1]

2шт.

After PIN HCA0021033 (WDX901), HCA0023031 (WDX1101)

1шт.
