Запчасти Case IH WDX901 (038B[1]) - HEADER DRIVE MOTOR, HDX SERIES, PRIOR TO PIN HAJ0013062 (901), HAJ0014163 (1101), HAJ0015101 (1701) (35) - HYDRAULIC SYSTEMS

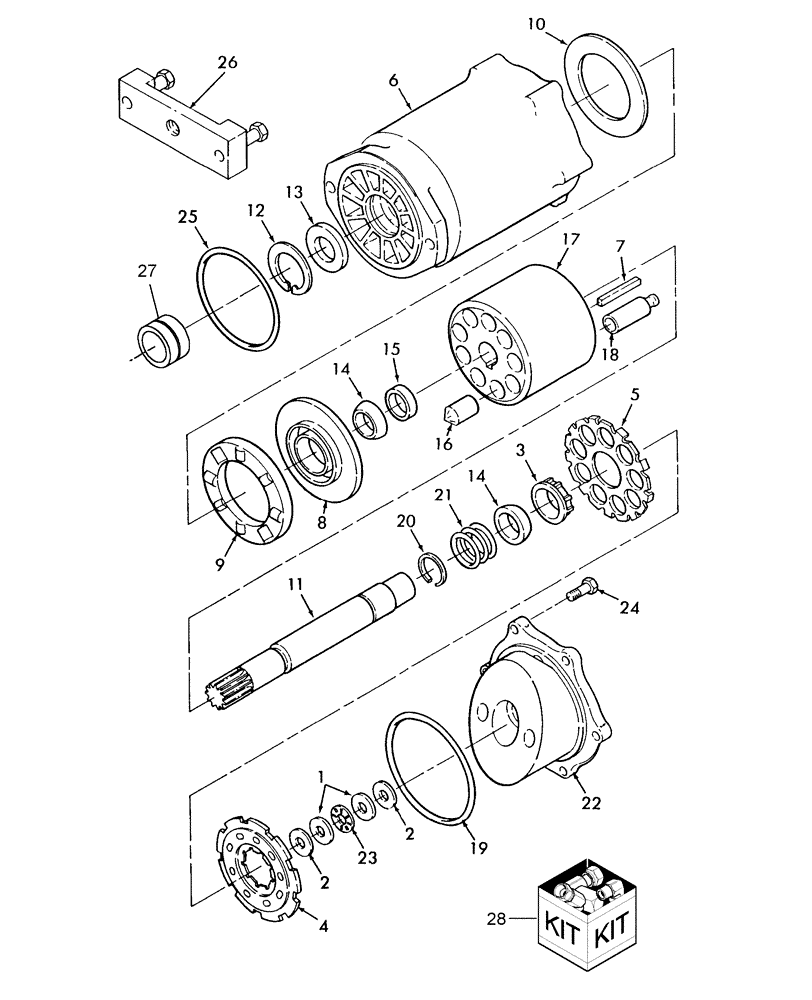

Схема запчастей Case IH WDX901 - (038B[1]) - HEADER DRIVE MOTOR, HDX SERIES, PRIOR TO PIN HAJ0013062 (901), HAJ0014163 (1101), HAJ0015101 (1701) (35) - HYDRAULIC SYSTEMS
11
2
20
6
15
9
2
22
26
7
28
3
21
13
24
27
12
14
17
5
14
25
4
23
19
8
18
16
1
10

Артикул

Название

Примечание

Количество

86516482

HYDRAULIC MOTOR

High Torque, Does Not Include: Ref. 26

1шт.

For HDX Series Headers

1шт.

86643697

REMAN-HYD MOTOR

Remanufactured HYDRAULIC MOTOR - N.A. Only

1шт.

86643698

CORE-MOTOR HYDRAULIC

Return No, HYDRAULIC MOTOR - N.A. Only

1шт.

1

9848755

BEARING ASSY,14.33mm ID x 25.15mm OD x 3.2mm Thk

Bearing, Includes: Ref. 59

2шт.

2

86628568

THRUST WASHER,14.32mm ID x 25.15mm OD x 0.81mm Thk

2шт.

3

NSS

NOT SOLD SEPARAT

Pilot

1шт.

4

274366

PLATE

1шт.

5

271407

SPIDER

1шт.

6

9848752

HOUSING

Includes: Ref. 27

1шт.

7

271395

KEY

1/4" x 3/16" x 2"

1шт.

8

86508442

PISTON

1шт.

9

D63332

THRUST BEARING,2.267" ID x 3.845" OD x 0.375"

Thrust

1шт.

10

271403

BEARING WASHER

Bearing

1шт.

11

9848753

DRIVEN SHAFT

1шт.

12

100-21162

SNAP RING,1.625", Int, #162

1шт.

13

274352

SEAL,25.4mm ID x 41.5mm OD x 7.9mm Thk

1шт.

14

271401

PIVOT

2шт.

15

271400

SPACER,35.18mm ID x 41.27mm OD x 9.7mm L

1шт.

16

NSS

NOT SOLD SEPARAT

Piston

9шт.

17

86516483

PISTON

Block, Does Not Include Pistons

1шт.

18

NSS

NOT SOLD SEPARAT

Piston

1шт.

19

238-5157

O-RING,0.103" Thk x 4.487" ID, -157, Cl 5, 75 Duro

1шт.

20

271415

BOLT

Ext, 1.1250"

1шт.

21

271413

SPRING

1шт.

22

9848750

PLATE

Includes: Ref. 27

1шт.

23

D63334

THRUST BEARING,0.569" ID x 0.99" OD x 0.0781"

Thrust

1шт.

24

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

25

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

26

86503935

LOCK

Motor

1шт.

27

D80554

NEEDLE BEARING CAGE

1шт.

28

86508431

SEAL KIT

1шт.

Выбрано товаров: 32
