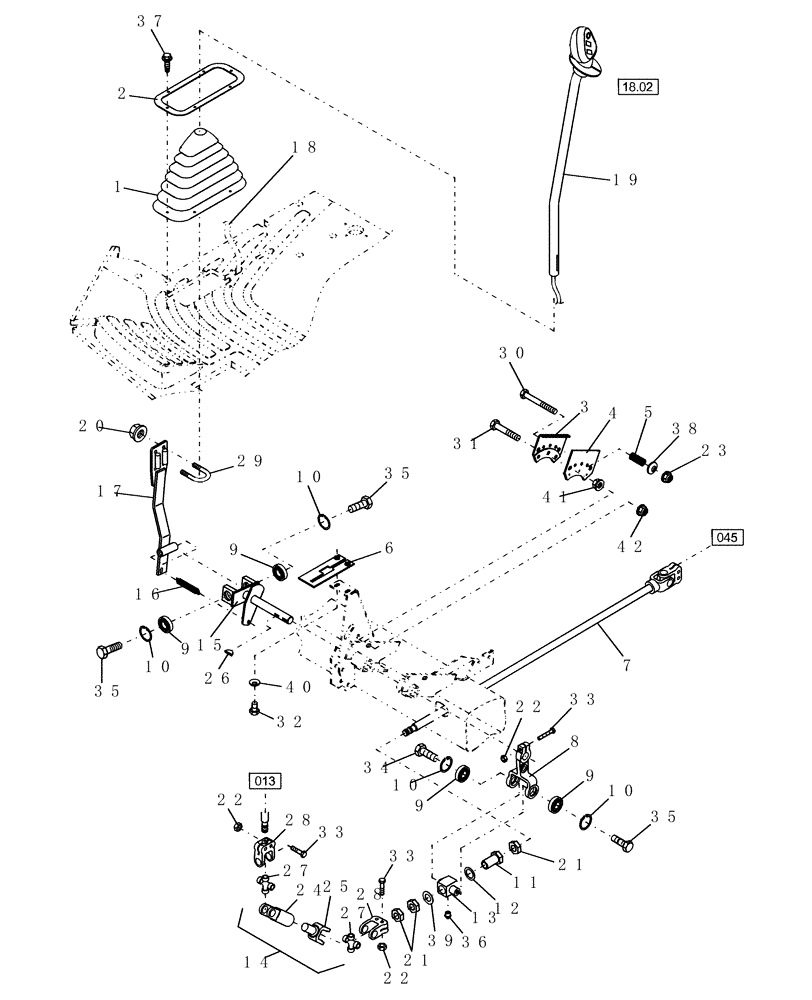

Запчасти Case IH WDX901 (018[1]) - FNR CONTROL (33) - BRAKES & CONTROLS

1

86621402

BOOT

1шт.

2

86627539

BASE PLATE

1шт.

3

791788

BRAKE SHOE

1шт.

4

791787

BRAKE SHOE

1шт.

5

37945

SPRING

2шт.

6

86557256

GUIDE

1шт.

7

9844643

SHAFT

1шт.

8

86641250

ARM

1шт.

9

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

4шт.

10

800-2132

SNAP RING,M32, Int

4шт.

11

86539340

SLEEVE

1шт.

Prior to PIN HAJ0013062 (WDX901)

1шт.

11

86586669

SLEEVE

1шт.

After PIN HAJ0013062 (WDX901)

1шт.

12

135065

WASHER

Hardened, 1-1/8"

1шт.

Prior to PIN HAJ0013062 (WDX901)

1шт.

12

86586680

THRUST BEARING

1шт.

After PIN HAJ0013062 (WDX901)

1шт.

13

86539339

UNIVERSAL JOINT

Shift

1шт.

14

0C

ORDER COMPONENTS

Steering PTO, Includes: Ref. 24, 25, 28, & 29

1шт.

15

86556929

SHAFT

1шт.

16

676397

SPRING

1шт.

17

86628707

LEVER ASSY.

FNR, Pivot

1шт.

18

86618787

WIRE HARNESS

1шт.

19

86624529

LEVER ASSY.

FNR

1шт.

20

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

21

425-1014

NUT,7/8"-9, G5

3шт.

Prior to PIN HAJ0013062 (WDX901)

1шт.

21

87314

JAM NUT,Jam, 7/8"-9, G2

3шт.

After PIN HAJ0013062 (WDX901)

1шт.

22

232-4146

NUT,3/8"-16, GC

5шт.

23

280129

NUT,1/4"-20

2шт.

24

9846539

YOKE

Part of Ref. #14

1шт.

25

9846538

YOKE

& Shaft, Part of Ref. #14

1шт.

26

126-17

WOODRUFF KEY,#91, 1/4" x 3/4"

1шт.

27

9847796

BEARING ASSY

Cross & Bearing Kit, Part of Ref. #14

2шт.

28

9846537

YOKE

Clamp, Part of Ref. #14

2шт.

29

86628699

U-BOLT

5/16" x 1-1/8" x 2"

2шт.

30

413-448

BOLT,Hex, 1/4" - 20 x 3", Gr 5

2шт.

31

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

2шт.

32

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

33

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

5шт.

34

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

1шт.

35

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

3шт.

36

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

37

86627785

SELF-TAP SCREW

HWH, #10-16 x 1-1/2"

6шт.

38

495-21031

WASHER,1/4"

2шт.

39

495-11094

WASHER,7/8", SAE

1шт.

Prior to PIN HAJ0013062 (WDX901)

1шт.

39

86586679

THRUST BEARING

1шт.

After PIN HAJ0013062 (WDX901)

1шт.

40

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

41

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

42

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.
