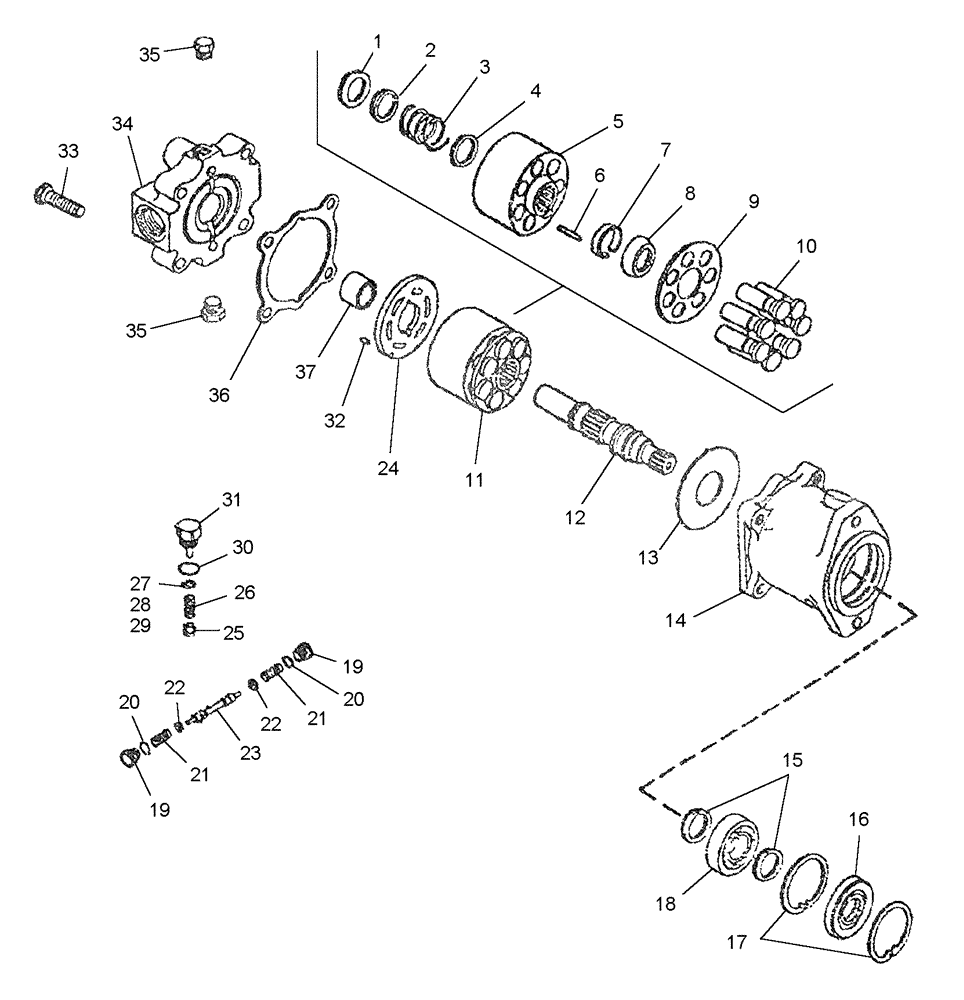

Запчасти Case IH WDX901 (052A) - WHEEL DRIVE MOTOR, PRIOR TO PIN HAJ0013062 (25) - FRONT AXLE SYSTEM

86513544

HYDRAULIC MOTOR

Fixed

1шт.

1

NSS

NOT SOLD SEPARAT

Ring, Retaining

1шт.

2

NSS

NOT SOLD SEPARAT

Washer

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Washer

1шт.

5

NSS

NOT SOLD SEPARAT

Block

1шт.

6

NSS

NOT SOLD SEPARAT

Pin, Slipper Hold Down

3шт.

7

NSS

NOT SOLD SEPARAT

Retainer

1шт.

8

NSS

NOT SOLD SEPARAT

Retainer

1шт.

9

NSS

NOT SOLD SEPARAT

Guide, Slipper

1шт.

10

NSS

NOT SOLD SEPARAT

Piston

7шт.

11

86542011

REPAIR KIT

Cylinder Block Includes: Ref. 1 thru 10

1шт.

12

86513545

SHAFT

Motor

1шт.

13

86502263

THRUST PLATE

1шт.

14

NSS

NOT SOLD SEPARAT

Motor Housing

1шт.

15

100-11137

SNAP RING,#137, Ext

2шт.

16

86502227

SEAL,32.99mm ID x 72.31mm OD x 9.53mm Thk

Lip

1шт.

17

100-21281

SNAP RING,2.812", Int, #281

2шт.

18

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

1шт.

19

87012446

PLUG

2шт.

21

86505739

SPRING

2шт.

22

86505740

GUIDE

2шт.

23

86505741

SPOOL

1шт.

24

277967

PLATE

1шт.

25

86505723

POPPET

1шт.

26

86505721

SPRING

1шт.

27

86505718

SHIM

.010"

1шт.

28

86505719

SHIM

.020"

1шт.

29

86505720

SHIM

.050"

1шт.

30

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Part of Ref 31

1шт.

31

86537387

PLUG

Includes: Ref. 30

1шт.

32

38-11208

LOCK PIN,3/16" x 1/2", Slotted

1шт.

33

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

34

86502229

CAP

1шт.

35

214389

PLUG,3/4" - 16 ORB

Includes 237-6008, O-Ring

2шт.

36

278531

GASKET

1шт.

37

1277297C1

NEEDLE BEARING

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.
