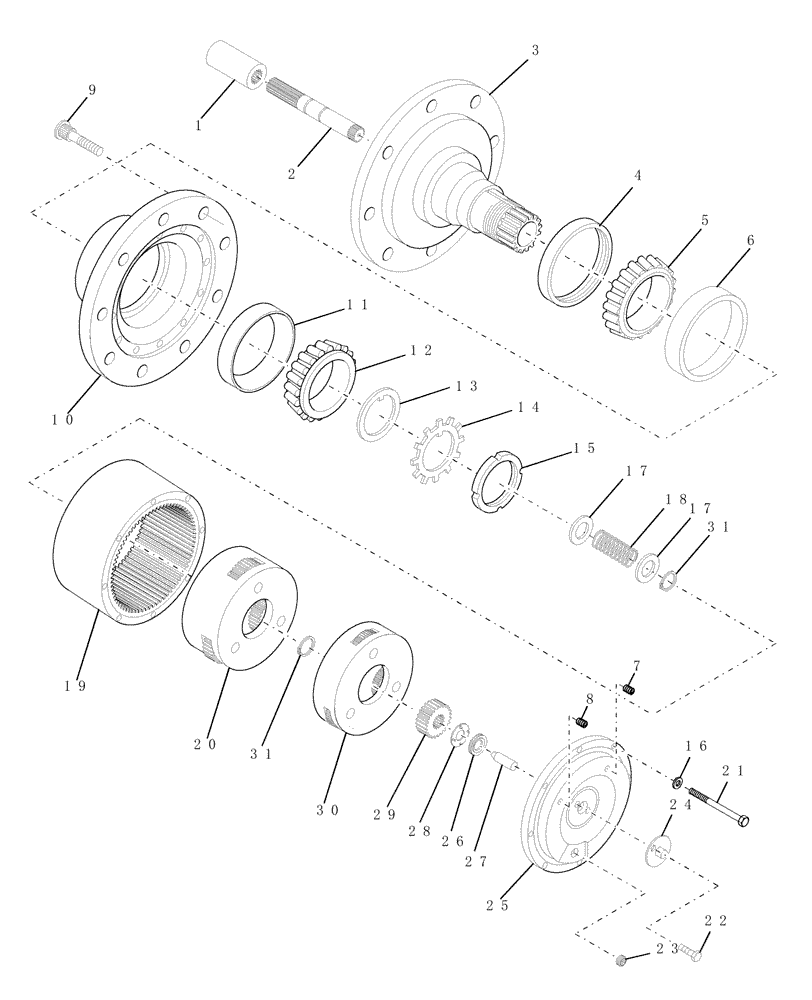

Запчасти Case IH WDX901 (004) - PLANETARY GEAR DRIVE, 41.42:1 (25) - FRONT AXLE SYSTEM

86621648

GEARBOX

Planetary, 41.42 ;1, Includes: Ref. 1 - 31

1шт.

1

108629

COUPLING

1шт.

2

86978950

SHAFT

Input

1шт.

3

86978961

SPINDLE

1шт.

4

86978960

OIL SEAL

1шт.

5

9823420

BEARING ASSY,85mm ID x 29mm W

& Roller

1шт.

6

9823418

BEARING CUP,130mm OD x 24mm W

1шт.

7

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

8

9617020

PLUG,1/4" - 18 x 0.48"

1шт.

9

86529260

STUD

9шт.

9

87041073

BOLT

Wheel; Use When Two Wheel Spacers 87011858 Are Required For Header Clearance w/ 18.4 x 26 Tires

8шт.

10

86978953

HUB

1шт.

11

9617935

BEARING CUP,130 mm OD x 28.5 mm

1шт.

12

147216

ROLLER BEARING,79.98mm ID x 34mm W

1шт.

13

86978959

THRUST WASHER

1шт.

14

86978958

LOCK WASHER

Tab

1шт.

15

86978957

LOCK NUT

Special

1шт.

16

213169

WASHER

Washer

12шт.

17

86978952

THRUST WASHER

2шт.

18

9849305

SPRING

1шт.

19

86978962

GEAR

Ring, 85 Tooth

1шт.

20

86978954

DIFF CARRIER & GEARS

Secondary

1шт.

21

88738

SCREW,Hex, 3/8" x 6 1/2", Gr 8

Cap, HH, G8, 3/8"-16 x 6-1/2"

12шт.

22

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

23

86504105

MAGNETIC PLUG

1шт.

24

108605

COVER

1шт.

25

86978963

COVER

1шт.

26

9844854

O-RING,0.44" ID x 0.106" Width

1шт.

27

9849310

PLUNGER

1шт.

28

N6363

WASHER

1шт.

29

86978956

GEAR

Primary

1шт.

30

86978955

DIFF CARRIER & GEARS

Primary

1шт.

31

9844855

SNAP RING

2шт.
