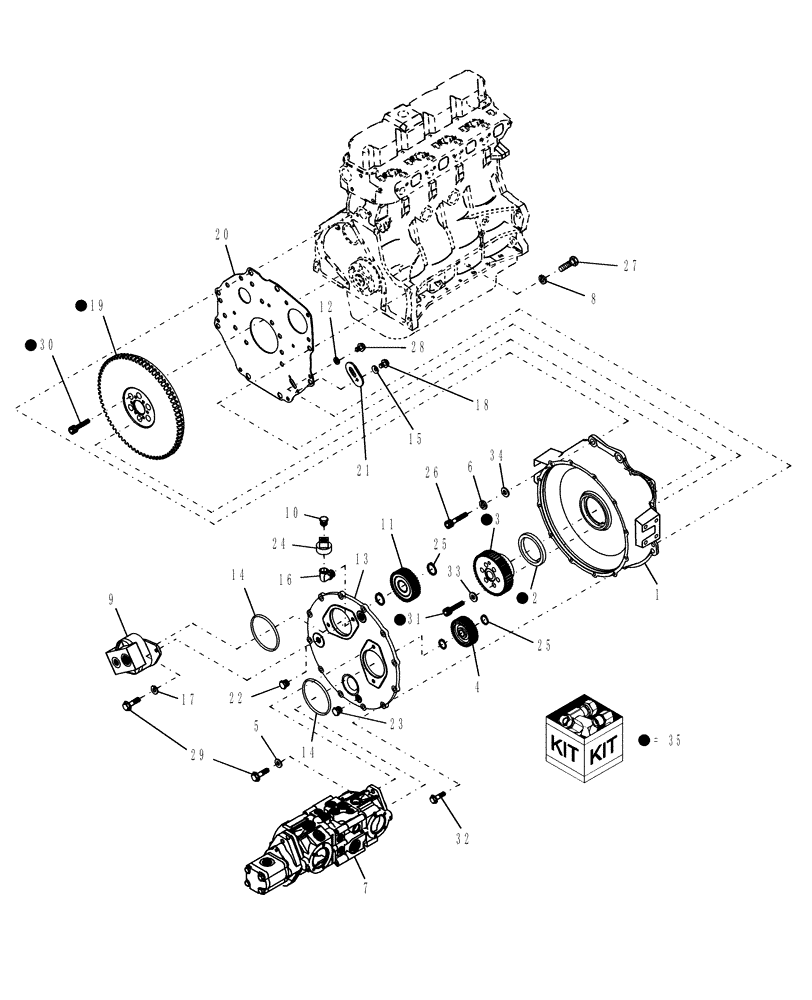

Запчасти Case IH WDX901 (053A) - FLYWHEEL & GEARBOX (14) - MAIN GEARBOX & DRIVE

1

86543187

HOUSING

Flywheel

1шт.

2

9790499

OIL SEAL,95.25mm ID x 117.65mm OD x 12.7mm Thk

1шт.

3

86627866

GEAR

1шт.

Used W/Kit 87046299

1шт.

4

9827614

GEAR

25T

1шт.

5

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

6

492-11075

LOCK WASHER,3/4"

2шт.

7

86624409

HYDRAULIC PUMP

Tandem

1шт.

8

492-11062

BEARING WASHER,5/8"

4шт.

9

86503291

HYDRAULIC PUMP

Gear, Refer To Fig. 050C

1шт.

87588019R

REMAN-HYD PUMP

WDX1101 (10/01-11/04),WDX901 (12/01-11/04) Reman for New P/N 86503291

1шт.

87588019C

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

46566

BREATHER

1шт.

11

9701486

GEAR

29T

1шт.

12

492-11044

LOCK WASHER,7/16"

2шт.

13

9809430

COVER

Gear Box

1шт.

14

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

15

492-11031

LOCK WASHER,5/16"

1шт.

16

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

18

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

19

86627869

ENGINE FLYWHEEL

1шт.

Used W/Kit 87046299

1шт.

19

83949153

RING GEAR

1шт.

20

83998895

PLATE

Rear, Engine

1шт.

21

81804217

COVER

1шт.

22

217-517

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

1шт.

23

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

24

9821756

PLUG

Pipe, Special

1шт.

25

100-1198

SNAP RING,#98, Ext

4шт.

26

86529420

HEX SOC SCREW,3/4" - 16 x 2 1/4"

2шт.

27

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

28

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

2шт.

29

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

30

D9NN6379AB

SCREW

Socket, G8, 9/16"-18 x 2"

6шт.

31

61-35044

HEX SOC SCREW,1/2" - 13 x 2-3/4"

6шт.

Used W/Kit 87046299

1шт.

32

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

12шт.

33

86596653

WASHER,10.3mm ID x 16.2mm OD x 1.91mm Thk

2шт.

34

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

35

87046299

ENGINE FLYWHEEL

Kit; See S.B. 2005/03-P4

1шт.
