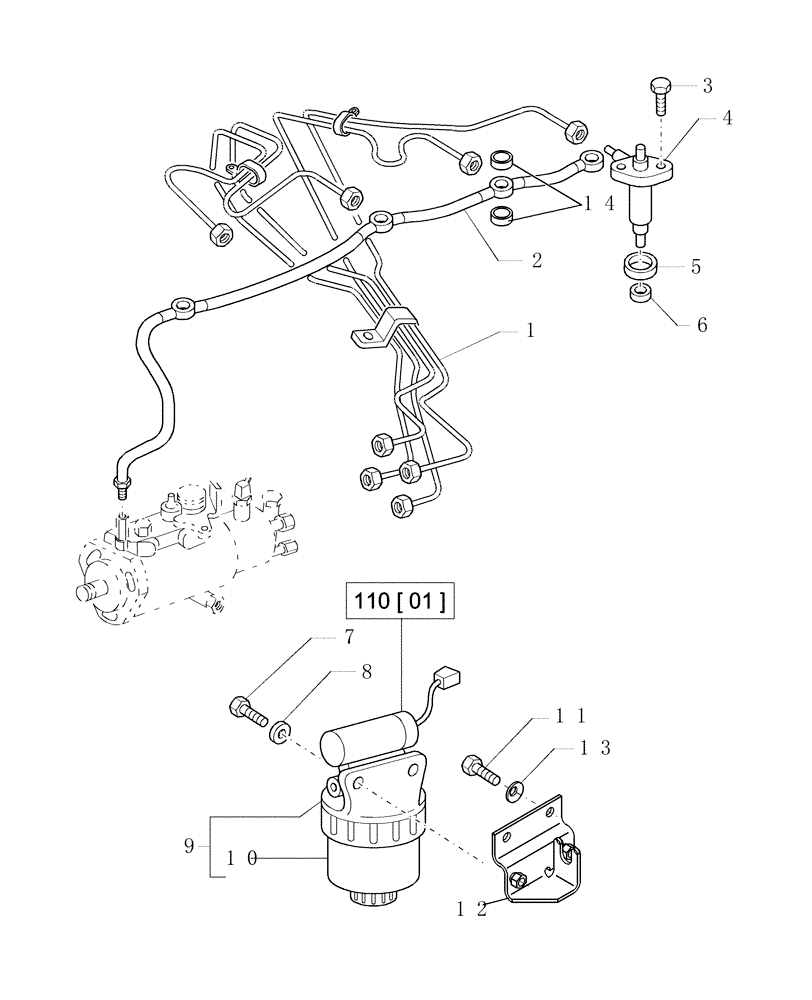

Запчасти Case IH WDX901 (110) - ENGINE, FUEL INJECTOR, LINES & FUEL FILTER/LIFT PUMP (10) - ENGINE

1

87801724

FUEL TUBE,6 mm DIA x 625 mm L

Fuel Injection

1шт.

Components NSS

1шт.

2

87801719

TUBE,8.1 mm OD x 475.5 mm L

Leak-Off

1шт.

3

87840522

BOLT,Hex Flg, 5/16" - 18 x 1.38"

8шт.

4

87801167

FUEL SYSTEM INJECTOR

1шт.

Components NSS

1шт.

87801167R

REMAN-FUEL INJECTOR

WDX901 (12/01-11/04)

1шт.

87801167C

CORE-FUEL INJECTOR

Return Number

1шт.

5

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

SEALRING

4шт.

6

81873921

SEALING WASHER,7.4mm ID x 13.75mm OD x 1.6mm Thk

4шт.

7

302264S36

SCREW

3/8"-16 x 1"

4шт.

8

44877S36

WASHER,10.41mm ID x 19.05mm OD x 2.41mm Thk

3/8"

2шт.

9

87802202

FUEL FILTER

Lift Pump Assy, Includes Element, Refer to fig. 110 (01)

1шт.

10

87802925

FILTER, FUEL

1шт.

11

61-33816

HEX SOC SCREW,3/8"-16 x 1"

2шт.

12

86640842

SUPPORT

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

14

81867564

GASKET,8.05mm ID x 11.3mm OD x 0.9mm Thk

Leak-Off Lines

8шт.
