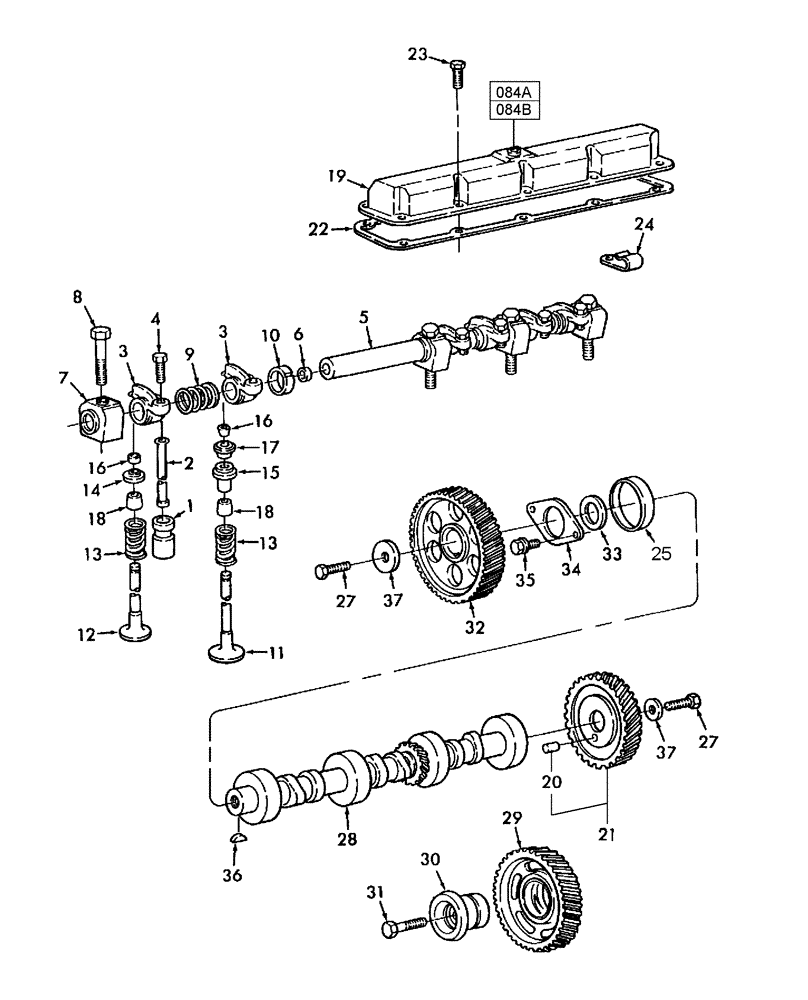

Запчасти Case IH WDX901 (104) - ENGINE, CAMSHAFT, ROCKER ARM, VALVES (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
E4HN6500AA
TAPPET
8шт.
2
81877890
ROD
Push
8шт.
3
83956710
ROCKER ARM
Intake
4шт.
3
81804316
ROCKER ARM
Exhaust, Includes: Ref. 4
4шт.
4
87801302
ADJUSTMENT SCREW
Adjusting, Rocker Arm, 7/16"-20 x 1-3/16"
8шт.
5
83960174
SHAFT,OAL 22-1/4"
Rocker Arm
1шт.
6
83417040
PLUG
Cup, .755"
2шт.
7
83903589
SUPPORT
5шт.
8
87801690
BOLT,Cyl Hd, 9/16" - 12 x 203.50mm
Cap, Flg Hd, G8, 9/16"-12 x 8"
5шт.
9
81804341
SPRING
4шт.
10
81818731
SPACER
4шт.
11
81865085
STD EXHAUST VALVE
STD ENGINE EXHAUST VALVE Standard
4шт.
11
81865086
VALVE, EXHAUST, OVER
.015" (.38mm)
1шт.
11
81865087
VALVE, EXHAUST, OVER
.030" (.76mm)
1шт.
12
81865092
STD INLET VALVE
STD ENGINE INLET VALVE Standard
4шт.
12
81865093
STD INLET VALVE
STD ENGINE INLET VALVE .015" (.38mm)
1шт.
12
81865094
OVERSIZE INLET VALVE
.030" (.76mm)
1шт.
14
83958102
COTTERS PLATE
Intake
4шт.
15
83952336
RETAINER
Exhaust
4шт.
16
81876796
KEY
16шт.
17
83952337
SLEEVE
Valve Spring Retainer, Exhaust
4шт.
19
87800919
COVER ASSY
1шт.
20
382015S
DOWEL
5/16" x 5/8"
1шт.
21
87802906
GEAR
Hydraulic Pump Drive
1шт.
23
83949109
BOLT,Flng, 5/16" x 5/8", Gr 5
HH, Flange, 5/16"-18 x 5/8"
10шт.
24
F0NN14N202AB
CLIP
Harness
2шт.
25
87800272
CAMSHAFT BEARING
Wall, 2.54" O.D. x .071"
3шт.
27
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
2шт.
28
83999236
CAMSHAFT
1шт.
29
83963174
GEAR
Camshaft Drive
1шт.
30
F2NN6A255AA
ADAPTER
Camshaft Gear
1шт.
31
82852337
BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8
Cap, HH, G8, 5/8"-11 x 2-1/4"
1шт.
32
83963173
GEAR
Camshaft
1шт.
33
81804020
SPACER
Camshaft Gear
1шт.
34
83957730
PLATE
Camshaft Thrust
1шт.
35
426-612
BOLT,Hex, 3/8" - 16 x 3/4", Gr 8
2шт.
36
126-16
WOODRUFF KEY,#9, 3/16" x 3/4"
1шт.
37
81804024
WASHER
2шт.
Выбрано товаров: 41
