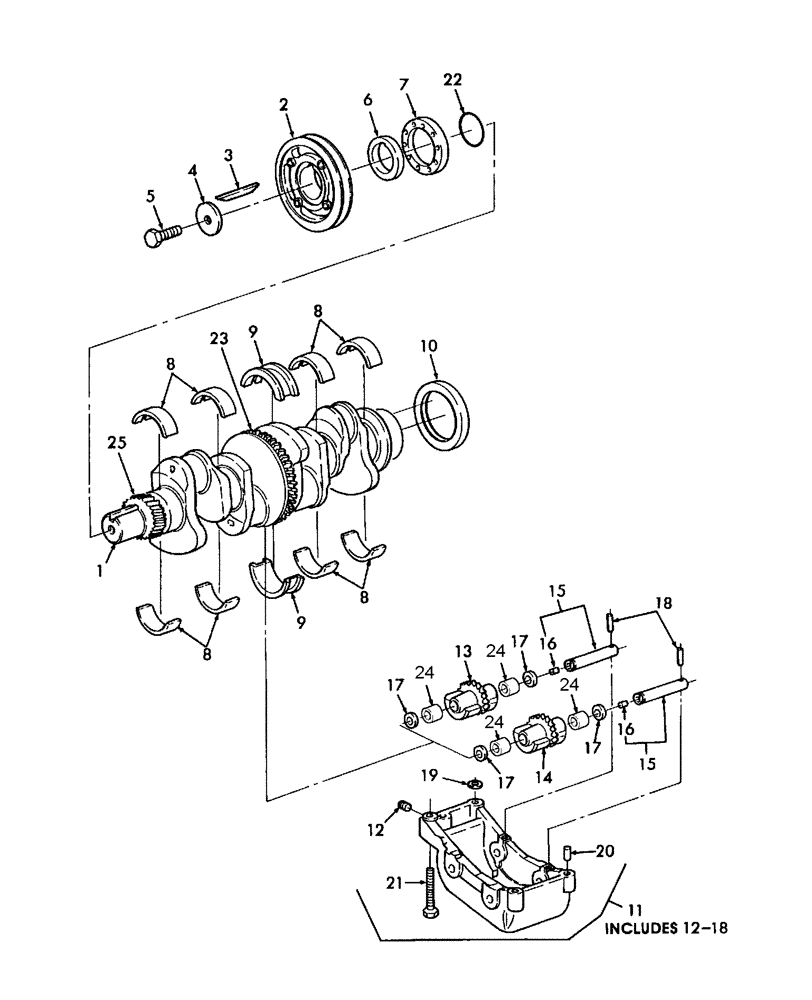

Запчасти Case IH WDX901 (103) - ENGINE, CRANKSHAFT (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
81869023
CRANKSHAFT
Includes: Ref.s 23 & 25
1шт.
2
F0NN6A312AA
PULLEY
1шт.
2
E9NN6316CB
DAMPER
1шт.
3
F0NN6N300AA
KEY
1шт.
4
83990589
WASHER,19.68mm ID x 59.689mm OD x 8.13mm Thk
Flat, 3/4"
1шт.
4
E8NN6A349AA
PLATE
Damper Stop
1шт.
5
SS30159ZDS
SCREW
HH, 3/4"-16 x 1-3/4"
1шт.
5
304899S2
SCREW
HH, 3/4"-16 x 2-1/2"
1шт.
6
87800706
SPACER,44mm ID x 60mm OD x 21mm L
1шт.
8
87790261
CRANKSHAFT BEARING
.002" (.0508mm) U/S, Green
1шт.
8
87790262
CRANKSHAFT BEARING
.010" (.254mm) U/S, White
1шт.
8
87790263
CRANKSHAFT BEARING
.020" (.508mm) U/S
1шт.
8
87790264
CRANKSHAFT BEARING,THRUST WASHERS +.762mm
.030" (.762mm) U/S
1шт.
8
87790265
SET OF MAIN BRGS -
.040" (1.016mm) U/S Kit, Liner, Thrust Bearing
1шт.
9
87790267
BEARING SET
Thrust. .002" (.0508mm) U/S, Green
1шт.
9
87790268
CRANKSHAFT BEARING
Thrust, .010" (.254mm) U/S, White
1шт.
9
87790269
CRANKSHAFT BEARING
Liner, Thrust Bearing, .020" (.508mm) U/S
1шт.
9
87790270
BEARING SET
Thrust, .030", U/S
1шт.
9
87790271
SET OF THRUST WASHER
Thrust, .040" (1.02mm) U/S
1шт.
10
83955247
SEAL,120.6mm ID x 141.12mm OD x 11.81mm Thk
See Service Bulletins Attached
1шт.
11
87802060
BALANCER
Includes: Ref. 12 - 18
1шт.
12
83998890
PLUG
Socket Hd., 1/16"-27 x .27"
1шт.
13
81868468
SHAFT,38T
Drive, Includes: Ref. 24
1шт.
14
81868470
SHAFT,38T
Driven, Includes: Ref. 24
1шт.
15
87802058
SHAFT
Includes: Ref. 16
2шт.
16
81825520
PLUG
Hex Socket, 1/8"-27 x .28"
2шт.
17
87802137
THRUST WASHER
Balancer Thrust, 1"
4шт.
18
83998857
PIN,7.94mm OD x 50.8mm L, Coiled
Coiled Spring, 5/16" x 2"
2шт.
19
83417161
O-RING,1.85mm Thk x 15.72mm ID
.614" I.D. x .070" W
1шт.
20
83960218
BUSHING,15.16mm ID x 17.21mm OD x 11.2mm L
2шт.
21
83946431
SCREW
Lock, 1/2"-13 x 2.50"
4шт.
23
81872682
GEAR
Crankshaft Dynamic Balancer
1шт.
24
NSS
NOT SOLD SEPARAT
Bushing
4шт.
25
83998053
GEAR
1шт.
Выбрано товаров: 38
