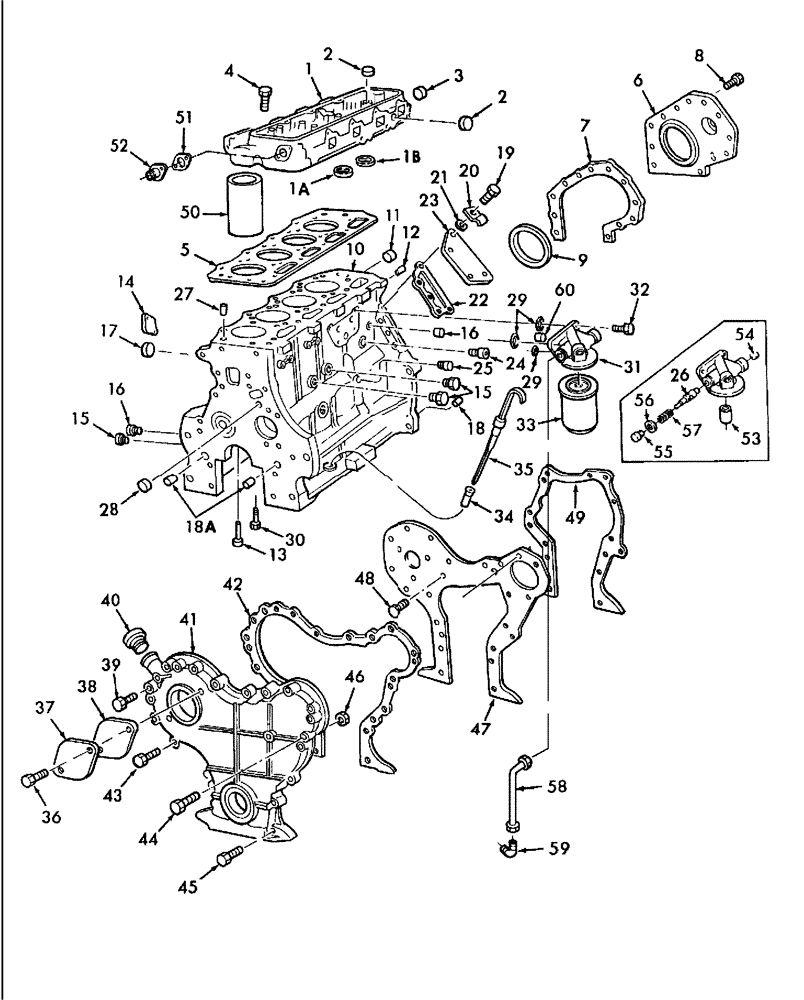

Запчасти Case IH WDX901 (102) - ENGINE, BLOCK, HEAD, OIL FILTER & RELATED PARTS (10) - ENGINE

87801488

ENGINE

1шт.

87801254

SHORT ENGINE

Block

1шт.

84215901R

REMAN-SHORT ENGINE

Reman for New PN 87801254

1шт.

84215901C

CORE-SHORT ENGINE

Return Number

1шт.

81878059

KIT, ENGINE TOP GASK

1шт.

81878060

ENGINE GASKET KIT

1шт.

1

84135237

CYLINDER HEAD

Includes: Ref. 1 - 3

1шт.

1

47682017R

REMAN-CYLINDER HEAD

Complete With Valves

1шт.

1

47682017C

CORE-CYLINDER HEAD

Return Number

1шт.

1a

81865194

INSERT

Standard, Exhaust

4шт.

1a

81865195

INSERT

Exhaust, .010" (.25mm) O/S

1шт.

1a

81865196

INSERT

Exhaust, .020" (.51mm) O/S

1шт.

1a

81865197

INSERT

Exhaust Valve Seat, .030" (.76mm) O/S

1шт.

1b

81876768

INSERT

Intake, .010" (.25mm) O/S

1шт.

1b

87803449

VALVE SEAT

Standard, Intake

4шт.

1b

81876768

INSERT

.020" (.51mm) O/S

1шт.

1b

81876778

INSERT

Intake Valve Seat, .030" (.76mm) O/S

1шт.

2

83957021

PLUG

1.13"

7шт.

3

83957025

PLUG

1.75"

1шт.

4

87801691

BOLT

9/16"-12 UNC 2A x 5-1/32"

13шт.

5

87800517

CYLINDER HEAD GASKET,1.6mm Thk

1шт.

6

87801621

PLATE

1шт.

7

87801610

GASKET,0.4mm Thk

Retainer

1шт.

8

83949109

BOLT,Flng, 5/16" x 5/8", Gr 5

HH, Flange, 5/16"-18 x 5/8"

12шт.

9

83955247

SEAL,120.6mm ID x 141.12mm OD x 11.81mm Thk

See Service Bulletins Attached

1шт.

10

87840579

CYLINDER BLOCK

1шт.

11

83957025

PLUG

1.75"

1шт.

12

390488S36

PLUG,1/2" - 14 x 0.42"

HS, 1/2"-14 x .42"

1шт.

13

81876966

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

4шт.

14

83957023

PLUG

1.50"

2шт.

15

81868411

PLUG,1/4" NPT

Pipe, 1/4"-18

3шт.

16

88071

PLUG

1/8"-27

2шт.

17

83957022

PLUG

1.18"

1шт.

18

86505157

DOWEL,1/2" x 1"

2шт.

18a

81808472

DOWEL

Dowel, 3/8" x 1.125"

2шт.

19

83925618

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Cap, HS, G8, 3/8"-16 x 5/8"

4шт.

20

83976853

CLIP,12.7mm, Coat, 11.5mm Bolt Hole, J Type

1шт.

21

495-21044

WASHER,3/8"

1шт.

22

81822547

GASKET,1.52mm Thk

Hydraulic Pump Cover

1шт.

23

87840555

COVER

Hydraulic Pump, Flange

1шт.

24

F1NN9D290AA

SENDER UNIT

Oil Pressure

1шт.

25

83984176

PLUG

HH, 3/8"-18

1шт.

26

F2NN6A809AA

VALVE PRESSURE RELIE

1шт.

27

83960218

BUSHING,15.16mm ID x 17.21mm OD x 11.2mm L

2шт.

28

83956679

PLUG

.824"

1шт.

29

14463881

O-RING,1.359" ID x 0.139" Width

3шт.

30

87801692

BOLT

Bearing Cap, 9/16"x 4-51/64"

10шт.

31

87802052

SUPPORT

Oil Filter Mounting

1шт.

32

83949104

BOLT

Flange Hd., 3/8"-16 x 1"

4шт.

33

86980031

ENGINE OIL FILTER

Oil

1шт.

34

83943981

TUBE,9.5936 mm OD, 102.6 mm Length

Oil Indicator

1шт.

35

87801533

DIPSTICK

Oil Indicator

1шт.

36

87800676

BOLT

5/16"-18 x 3/4"

2шт.

37

87800915

COVER

Power Steering Pump

1шт.

38

87800916

GASKET,0.89mm Thk

O-Ring, 3.237" I.D. x .103"

1шт.

39

81867943

BOLT

Flange Hd., 5/16"-18 x 2-1/2"

2шт.

40

F3AE6766BA

FILLER CAP

Oil

1шт.

41

87800905

COVER

Front Cylinder

1шт.

42

83959876

GASKET,0.89mm Thk

Front Cover

1шт.

43

81867931

BOLT

Hex Flange Hd., 5/16"-18 x 2"

4шт.

44

56546S36

SCREW

Cap, Flg, USR, 3/8"-16 x 2-1/2"

2шт.

45

56545S36

SCREW

Hex Flange Hd., 3/8"-16 x 2-1/4"

9шт.

46

81862931

NUT

HH, 3/8"-16

2шт.

47

87800904

FRONT PLATE

Cover

1шт.

48

45964S36

SCREW

HH, 5/16"-18 x 3/4"

4шт.

49

83959396

GASKET,0.89mm Thk

Front Plate

1шт.

50

D7NN6055A

LINER, ENGINE CYLIND

4шт.

51

87800983

GASKET,0.4mm Thk

1шт.

52

F0NN8A544AA

FLANGE

Water Inlet

1шт.

53

E5HN6890AA

INSERT

1шт.

54

82926938

PLUG

Socket Hd., 3/4"-14

3шт.

55

81869029

HYD CONNECTOR

1шт.

55

E0NNF947DA

PLUG,1 1/16"-12 SAE

1шт.

56

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

57

F2NN6670BA

SPRING

1шт.

58

81869030

TUBE,16 mm OD, 191.3, 76.2 mm Length

1шт.

59

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

1шт.

60

83417040

PLUG

1шт.
