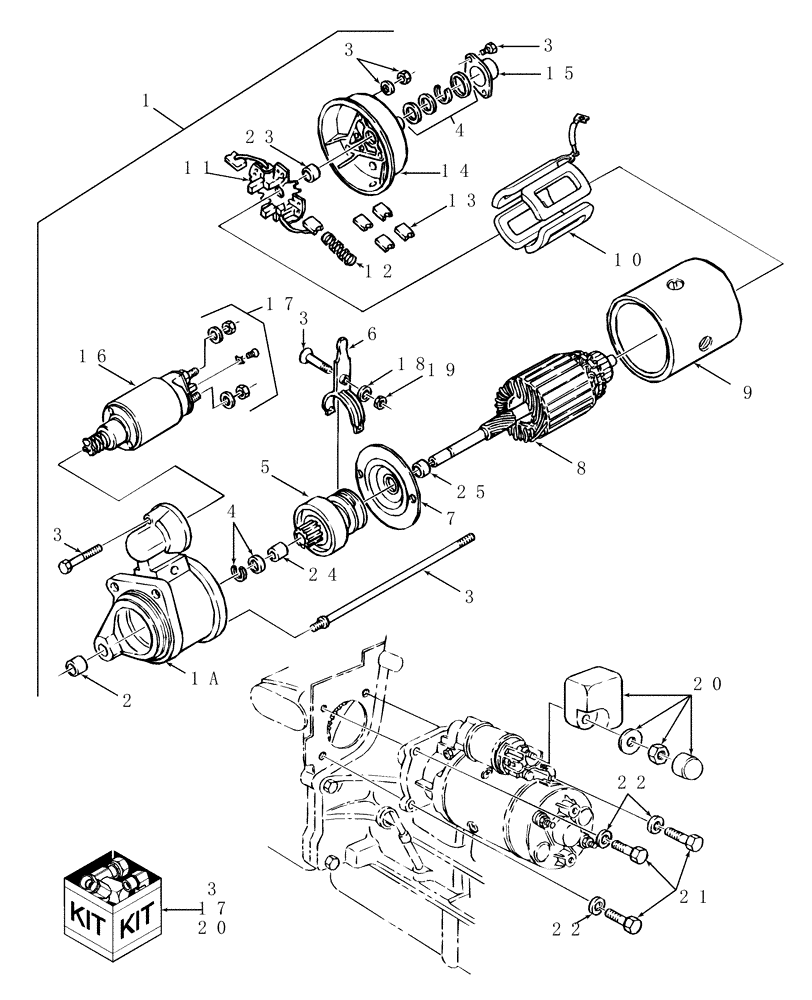

Запчасти Case IH WDX901 (101) - STARTER MOTOR (10) - ENGINE

1

82005342

STARTER MOTOR,12V, 3.1kW

1шт.

1

82005342R

REMAN-STARTER,12V, 3.1kW

Reman for New PN 82005342

1шт.

1

82005342C

CORE-STARTER,12V, 3.1kW

Return Number

1шт.

1a

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

81866060

BUSHING

1шт.

3

81866062

KIT

1шт.

4

F0NN11N085AA

COLLAR

Drive Thrust Collar & Ring

1шт.

5

86013253

DRIVING GEAR

Includes: Ref. 24

1шт.

6

81866061

LEVER

1шт.

7

81866058

PLATE

Center Bearing, Includes: Ref. 25

1шт.

8

86013252

ARMATURE

1шт.

9

NSS

NOT SOLD SEPARAT

Housing

1шт.

10

86013257

ELECTRICAL WINDING

1шт.

11

F0NN11434AA

BRUSH HOLDER

Brush

1шт.

12

86013258

SPRING

Brush

4шт.

13

81866054

COMMUTATOR BRUSH

Assy.

1шт.

14

81866051

COVER

Brush End

1шт.

15

NSS

NOT SOLD SEPARAT

Cap

1шт.

16

F0NN11390AA

SOLENOID,12V

1шт.

17

81866063

KIT

Hardware, Solenoid

1шт.

18

NSS

NOT SOLD SEPARAT

Washer, D1N 137-B8-FST

1шт.

19

NSS

NOT SOLD SEPARAT

Nut, D1N 439-BM8-04

1шт.

20

F1NN11K183AA

KIT

Solenoid Seal

1шт.

Components NSS

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

79026097

BUSHING

1шт.

24

9969375

BUSHING

1шт.

25

9926101

BUSHING

1шт.
