Запчасти Case IH WDX901 (058[2]) - ENGINE ATTACHING PARTS (10) - ENGINE

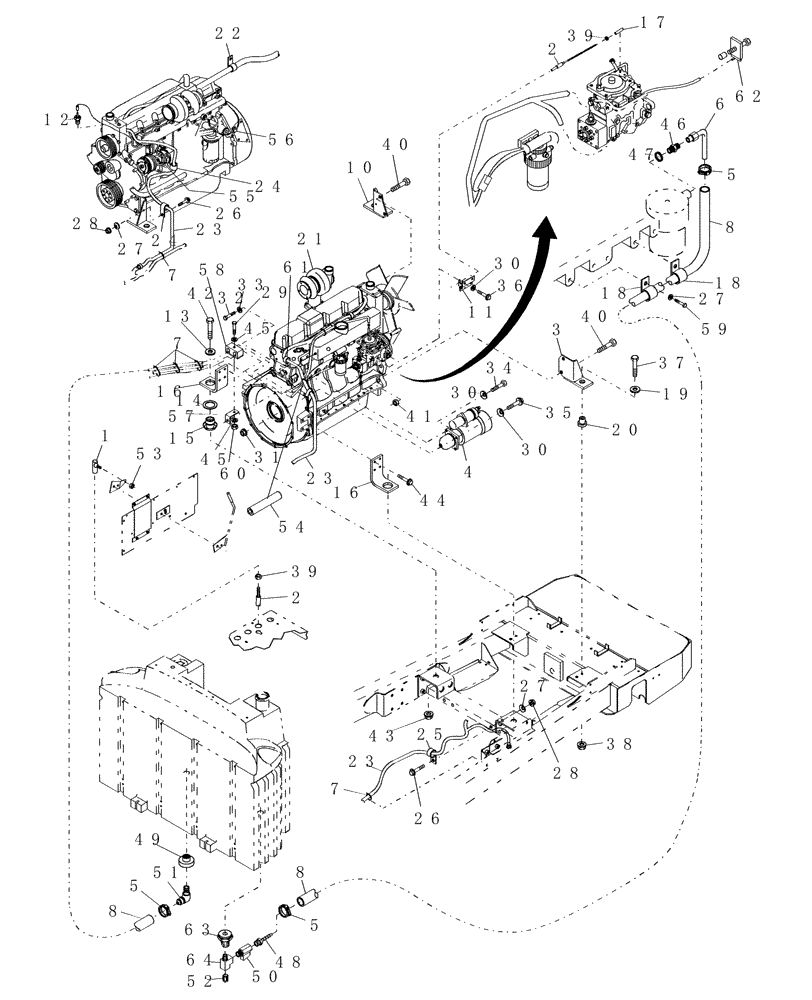

Схема запчастей Case IH WDX901 - (058[2]) - ENGINE ATTACHING PARTS (10) - ENGINE
14
34
8
30
28
5
1
19
27
26
45
25
41
51
27
32
61
60
57
46
58
12
53
52
27
3
21
7
50
16
40
17
36
15
47
18
8
55
10
9
16
42
6
40
23
8
29
39
18
5
63
11
2
45
44
56
59
38
64
62
24
54
20
2
13
23
24
33
37
7
31
30
26
7
39
4
28
35
49
22
23
43
48
5
30

Артикул

Название

Примечание

Количество

1

103557

BALL JOINT

1шт.

2

710412

CABLE

1шт.

3

86634849

SUPPORT

LH

1шт.

4

82005342

STARTER MOTOR,12V, 3.1kW

Refer to Fig. 101

1шт.

4

82005342R

REMAN-STARTER,12V, 3.1kW

Reman for New PN 82005342

1шт.

4

82005342C

CORE-STARTER,12V, 3.1kW

Return Number

1шт.

5

82012717

HOSE CLAMP,11 x 17mm

4шт.

6

86544108

TUBE,8 mm OD x 65.9, 40.9 mm L

Includes Nut

1шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

7шт.

8

690681

HOSE,7.94mm ID x 3352.8mm L, SAE 30R7

1шт.

9

81869698

SENDER UNIT

Oil Pressure

1шт.

10

86634848

SUPPORT

RH

1шт.

11

86640842

SUPPORT

Fuel Pump

1шт.

12

9712608

TEMPERATURE SENDER,3/8" - 18

Water Temperature

1шт.

13

86545287

WASHER,25.9mm ID x 101.6mm OD x 4.8mm thick

25.9mm I.D. x 101.6mm O.D. x 4.8mm Thick

2шт.

14

9823910

WASHER

65mm I. D. x 95mm O.D. x 3.5mm Thick

2шт.

15

86550697

INSULATOR

2шт.

16

86634853

SUPPORT

2шт.

17

C5NN9740A

HYD CONNECTOR

1шт.

18

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

2шт.

19

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

2шт.

20

86541277

INSULATOR

2шт.

21

87801481

ENGINE

5L, Emiss., WDX1101

1шт.

21

87801135

SHORT ENGINE

Block - WDX1101

1шт.

21

84215912R

REMAN-SHORT ENGINE

Reman for New PN 87801135

1шт.

21

84215912C

CORE-SHORT ENGINE

Return Number

1шт.

21

87801488

ENGINE

4 Cyl., WDX901

1шт.

21

87801488R

EXCHANGE ENGINE

4 Cyl., WDX901

1шт.

21

87801488C

CORE-ENGINE

Return Number

1шт.

21

87801254

SHORT ENGINE

WDX901

1шт.

21

84215901R

REMAN-SHORT ENGINE

Reman for New PN 87801254

1шт.

21

84215901C

CORE-SHORT ENGINE

Return Number

1шт.

21

81878059

KIT, ENGINE TOP GASK

WDX901, WDX1101

1шт.

21

81878060

ENGINE GASKET KIT

WDX901, WDX1101

1шт.

22

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

1шт.

23

86626488

WIRE HARNESS

Engine

1шт.

23

9609190

HYD CONNECTOR

1шт.

23

900363

TERMINAL

7шт.

23

900367

TERMINAL

Sealing

2шт.

24

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

25

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

26

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

27

492-11031

LOCK WASHER,5/16"

4шт.

28

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

29

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

31

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

32

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

33

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

34

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3шт.

35

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

Flg Hd, G5, 3/8"-16 x 1-3/4"

1шт.

36

61-33816

HEX SOC SCREW,3/8"-16 x 1"

2шт.

37

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

38

232-4148

NUT,1/2"-13, GC

2шт.

39

425-114

NUT,1/4"-28, G5

2шт.

40

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

41

86534279

FLANGE NUT,Flg, 3/4"-10, G8

4шт.

42

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

43

231-41416

NUT,1"-8, GB

2шт.

44

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

45

495-21031

WASHER,1/4"

2шт.

46

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

1шт.

48

86599523

HYD CONNECTOR

1шт.

49

86537556

BUSHING

1шт.

50

86599520

RESTRICTOR VALVE

1шт.

51

86537555

ELBOW

1шт.

52

NH772441

PLUG,Sq Hd, 3/8" NPTF, Brass

3/8"

1шт.

53

231-4644

LOCK NUT,1/4"-28, GB

1шт.

54

617215

MOLDING

1шт.

55

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

56

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

57

86640840

ANGLE

1шт.

58

781221

CLAMP

5/8" Tube

1шт.

59

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

60

280129

NUT,1/4"-20

1шт.

61

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

.687" x .531" Bolt

1шт.

62

86573028

STOP

1шт.

63

86599518

HYD CONNECTOR

Includes: O-Ring

1шт.

63

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

64

86599519

3 WAY CONNECTION

3/8"

1шт.

47

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

Выбрано товаров: 81
