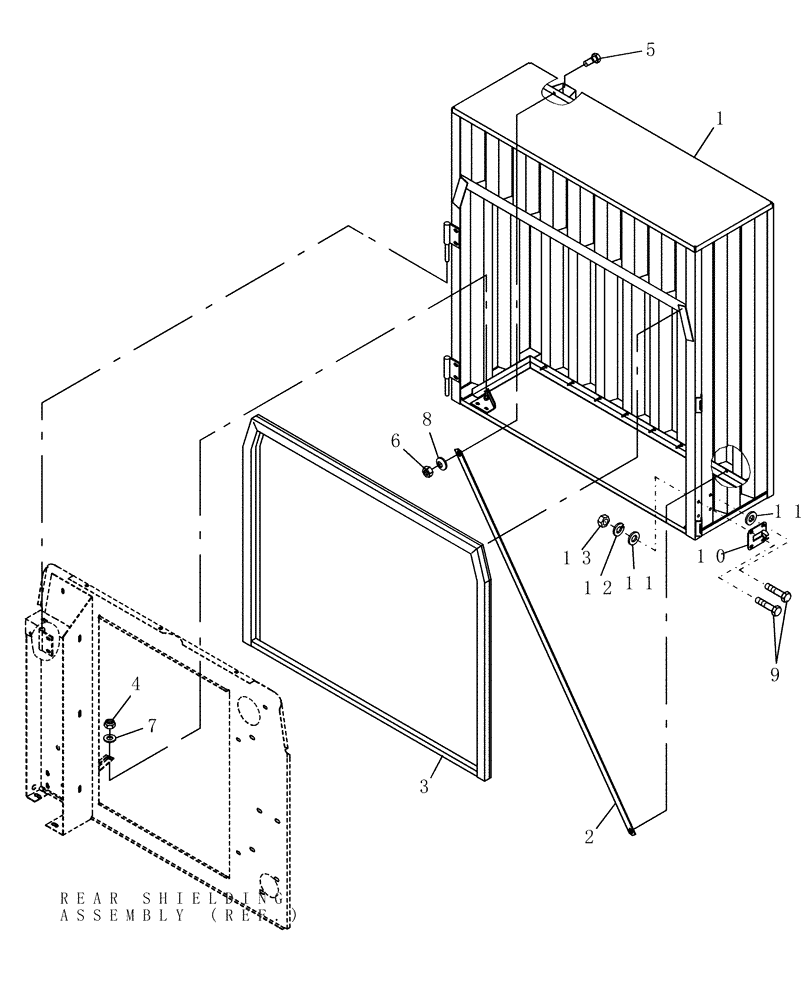

Запчасти Case IH WDX901 (057A) - STACK SCREEN (10) - ENGINE

1

86530576

SCREEN

Stack

1шт.

2

9828441

STRAP

1шт.

3

86531608

SEALING STRIP

16', Serial Range: Cut-Length

1шт.

4

280736

NUT,5/16"-18, GC

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

7

495-21038

WASHER,5/16"

1шт.

8

492-11031

LOCK WASHER,5/16"

2шт.

9

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

8шт.

10

86567551

LATCH

2шт.

11

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

12шт.

12

492-11025

LOCK WASHER,1/4"

8шт.

13

425-104

NUT,1/4"-20, Cl 5

8шт.
