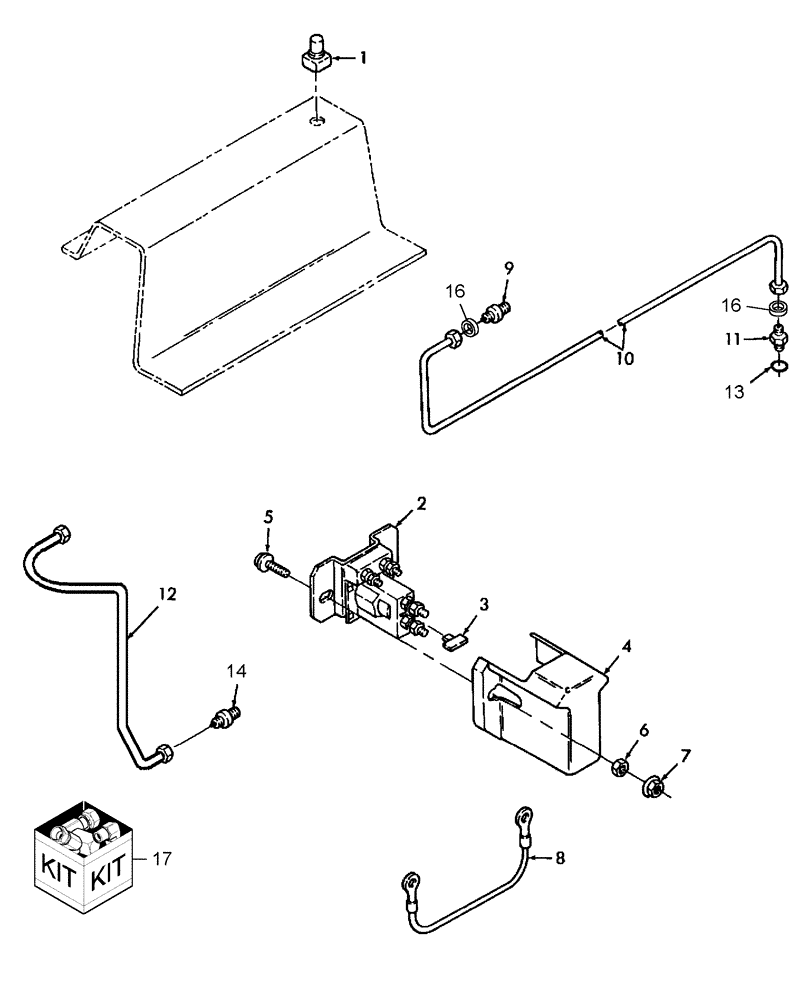

Запчасти Case IH WDX901 (037) - PRE-HEAT COLD START (10) - ENGINE

1

9804938

SWITCH

Cold Start

1шт.

2

9601073

RELAY,12V, 80A

1шт.

3

9612633

SHIELD

1шт.

4

9612631

COVER

1шт.

5

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

USR

2шт.

6

425-104

NUT,1/4"-20, Cl 5

2шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

8

NSS

NOT SOLD SEPARAT

Wire, Preheat Feed, 12 GA, 11" (279.4mm) Lg.

1шт.

9

87800843

THERMOSTART

1шт.

10

87801626

TUBE,4.75 mm OD

Intake Manifold Heater Inlet, 4 Cylinder only

1шт.

Includes: Ref. 16 Sleeve

1шт.

11

83976351

HYD CONNECTOR

1шт.

12

87801627

TUBE,4.75 mm OD x 178.3, 155.7 mm L

Intake Manifold Heater Inlet, 6 Cylinder

1шт.

13

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

1шт.

14

82894025

FITTING

3/16" Flareless Tube & 1/2" O Ring

1шт.

15

9804895

FUSE,20A, Micro, Yellow

(Not shown)

1шт.

16

NSS

NOT SOLD SEPARAT

Sleeve, Rubber, Part of Ref. 10

2шт.

17

715320016

KIT

Pre-heat, Cold Start, Includes: 1 Thru 16

1шт.
