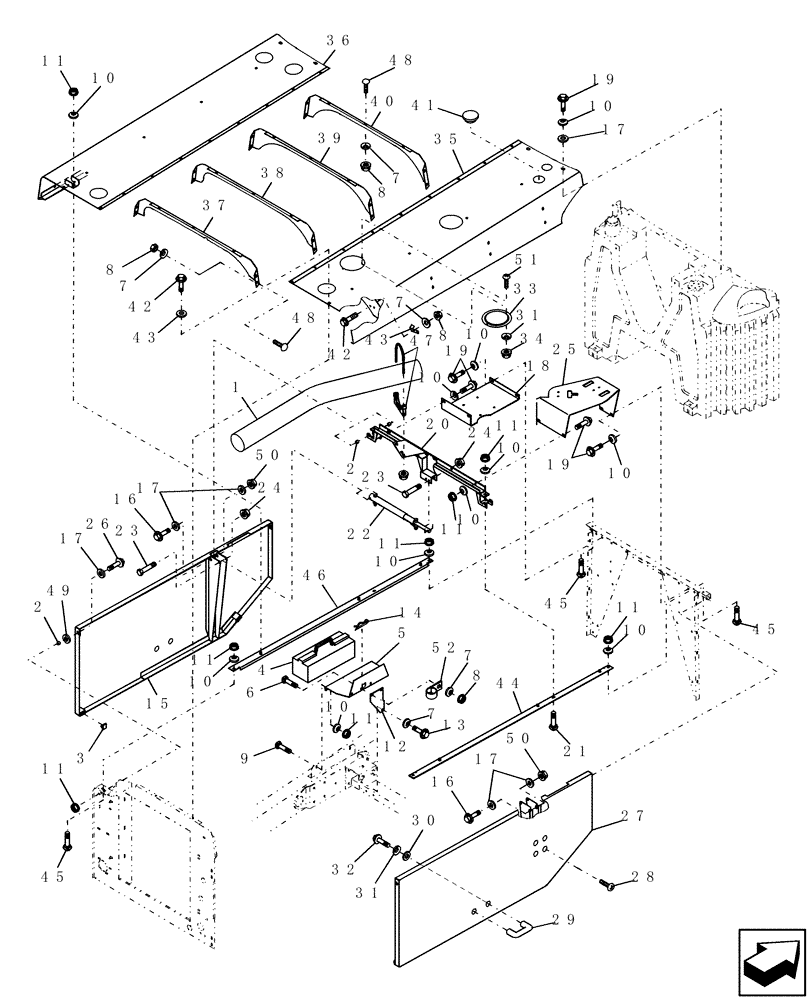

Запчасти Case IH WDX901 (055) - SHIELDING CENTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86522761

TUBE,127 mm OD

WDX1701

1шт.

1

86532315

TUBE,88.90 mm OD x 1458.8, 236.4 mm L

WDX901 & WDX1101

1шт.

2

86610677

SPACER,10.3mm ID X 19.05mm OD X 14.3mm L

8шт.

3

216328

BUMPER

4шт.

4

5135060

TOOL BOX

1шт.

5

86530640

SUPPORT

1шт.

6

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

2шт.

7

492-11031

LOCK WASHER,5/16"

1шт.

8

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

9

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

11

425-286

FLANGE NUT,Flg, 3/8"-16, G5

18шт.

12

86530641

BRACKET

1шт.

13

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

86627125

COTTER PIN,0.148" OD x 2.75" OAL, Internal

Hairpin, 5/32" x 2-3/4"

1шт.

15

86626901

DOOR ASSY.

LH

1шт.

16

413-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

2шт.

17

495-21044

WASHER,3/8"

10шт.

18

86522568

SUPPORT

WDX1701

1шт.

18

86524180

SUPPORT

WDX901 & WDX1101

1шт.

19

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

8шт.

20

86533275

SUPPORT

1шт.

21

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

22

86636329

LIFT CYLINDER

Spring

2шт.

23

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

3шт.

24

231-5345

FLANGE NUT,Flg, 5/16"-18

4шт.

25

86583530

SUPPORT

1шт.

26

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

27

86626903

DOOR ASSY.

RH

1шт.

28

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

8шт.

29

86544883

HANDLE

Plastic

2шт.

30

495-21031

WASHER,1/4"

4шт.

31

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

6шт.

32

458-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

33

86626052

COVER

1шт.

34

425-104

NUT,1/4"-20, Cl 5

2шт.

35

86625333

HOOD ASSY.

RH

1шт.

36

86625331

HOOD ASSY.

LH

1шт.

37

86533205

SUPPORT

Front

1шт.

38

86533206

SUPPORT

Middle

1шт.

39

86538129

SUPPORT

Middle

1шт.

40

86533207

SUPPORT

Rear

1шт.

41

86508688

PLUG

1шт.

42

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

3шт.

43

86596091

ANGLE

WDX901 & WDX1101

1шт.

44

86625395

ANGLE

RH

1шт.

45

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

46

86625393

ANGLE

LH

1шт.

47

86534869

CLAMP

WDX1701

1шт.

47

578013

CLAMP

WDX901 & WDX1101

1шт.

48

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

32шт.

49

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

50

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

51

84467

SCREW,Slotted Truss Hd, 1/4" - 20 x 1/2"

2шт.

52

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.
