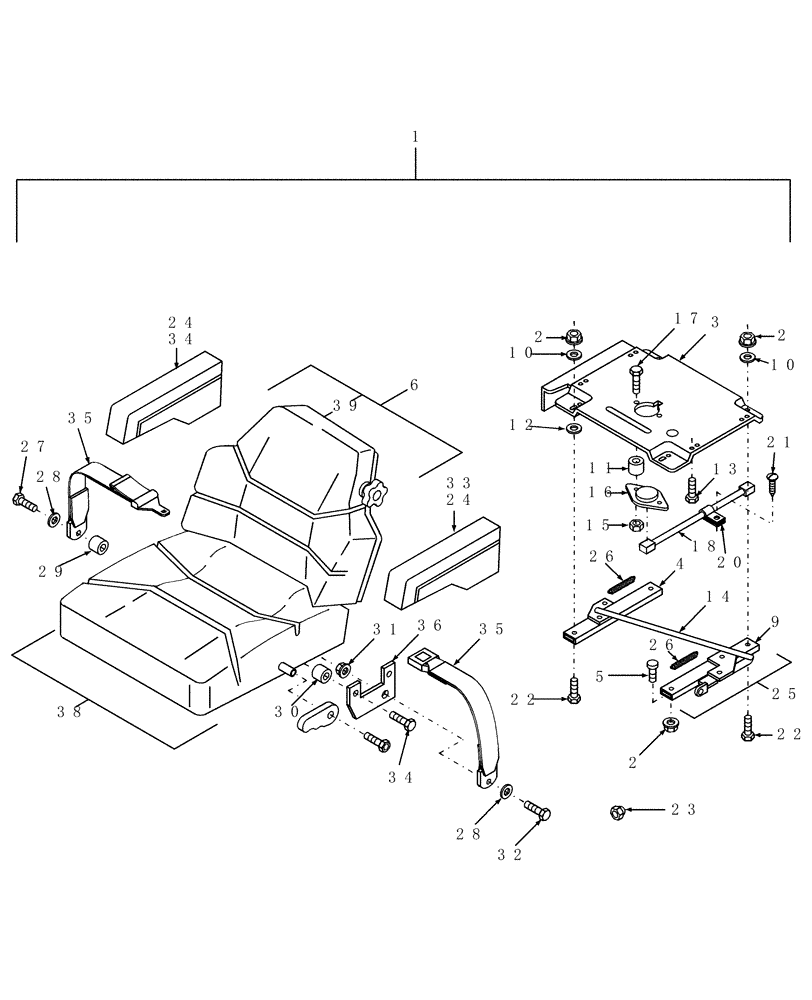

Запчасти Case IH WDX901 (020A) - SEAT, MECHANICAL SUSPENSION, UPPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86618601

SEAT ASSY.

W/ LH & RH Arm Rest

1шт.

WDX901-Only

1шт.

2

280736

NUT,5/16"-18, GC

8шт.

3

86641127

PLATE

Adapter

1шт.

4

NSS

NOT SOLD SEPARAT

Locking Slide, Part of Ref. 25

1шт.

5

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

6

86639484

CUSHION

Seat, Top, W/O Belts or Arm Rests

1шт.

7

NSS

NOT SOLD SEPARAT

Boot, Mechanical Suspension

1шт.

See Fig. "Mechanical Suspension, Lower"

1шт.

8

NSS

NOT SOLD SEPARAT

Clips, Part of Kit #9845758 (Not Shown)

22шт.

9

NSS

NOT SOLD SEPARAT

Locking Slide W/ Handle, Part of Ref. 25

1шт.

10

495-11047

WASHER,7/16", SAE

4шт.

11

86508380

SPACER

2шт.

12

495-11034

WASHER,5/16", SAE

4шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

Used to mount Seat to Adapter Plate and Adapter Plate Front to Locking Slides

1шт.

14

NSS

NOT SOLD SEPARAT

Slide Latch Wire, Part of Ref. 25

1шт.

15

425-104

NUT,1/4"-20, Cl 5

2шт.

16

86502159

KIT

Seat

1шт.

17

84468

SCREW,Slotted Truss Hd, 1/4" - 20 x 5/8"

G2

2шт.

18

9846601

WIRE HARNESS

Seat Switch

1шт.

19

NSS

NOT SOLD SEPARAT

Serial # Decal (Not Shown)

1шт.

20

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

1шт.

21

86616035

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

1шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

23

NSS

NOT SOLD SEPARAT

Push Nut, Part of Kit 9845758

3шт.

24

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

Part of Arm Rest, Ref. 33 & 34 (Not Shown)

1шт.

25

86640351

KIT

Double Locking Slides Kit, Includes Ref. 4, 9, 14, & 26

1шт.

26

9845781

SPRING

Slide, Part of Ref. 25

1шт.

27

86512040

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

28

48917

WASHER

15/32" ID

2шт.

29

86636722

SPACER,12.62mm ID x 19.05mm OD x 15.75mm L

1шт.

30

696365

SPACER

2шт.

31

280980

NUT,7/16"-14, GC

1шт.

32

50217

BOLT

1шт.

33

1981818C1

ARMREST

LH, W/ Pin, (Ref. 24)

1шт.

34

9846602

ARMREST

RH, W/Pin, (Ref. 24)

1шт.

35

86530940

SAFETY BELT ,48.00 mm W

1шт.

36

86555665

BRACKET

1шт.

37

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

38

86639483

CUSHION

Pan, Seat

1шт.

39

86639817

BACKREST

Kit, Cover

1шт.
