Запчасти Case IH WDX1701 (038A) - SICKLE HEADER ADAPTER KIT - WDX1701, (PRIOR TO PIN HAJ0015090), HDX SERIES HEADERS (88) - ACCESSORIES

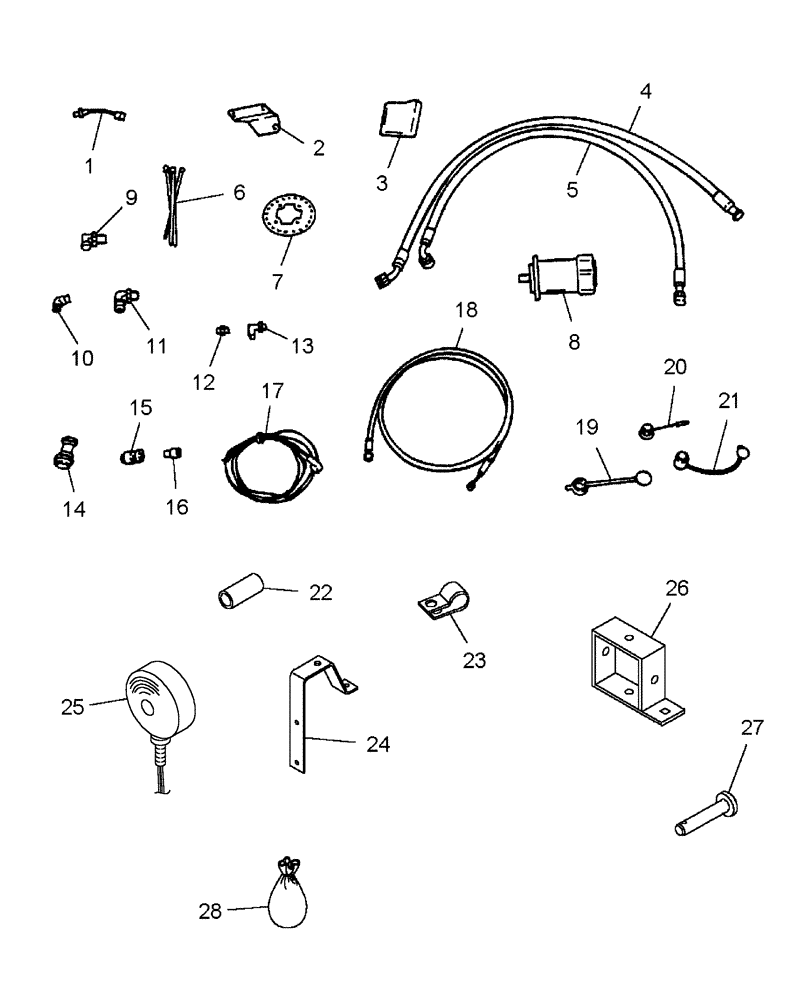

Схема запчастей Case IH WDX1701 - (038A) - SICKLE HEADER ADAPTER KIT - WDX1701, (PRIOR TO PIN HAJ0015090), HDX SERIES HEADERS (88) - ACCESSORIES
23
26
5
24
12
7
3
19
9
28
16
13
17
4
20
11
14
18
10
27
15
6
22
8
2
25
1
21

Артикул

Название

Примечание

Количество

86618020

ACCESSORIES

Kit, Sickle Header Adapter

1шт.

Includes the following parts & Instructions:

1шт.

For HDX Series Headers

1шт.

1

9825943

SENSOR

Magnetic

1шт.

2

86543336

SUPPORT

1шт.

3

86520217

SLEEVE

1шт.

4

9825900

FLEXIBLE HOSE,19.05mm ID x 1765.3mm L, SAE 100R12

Pressure, 69-1/2" Female Flat Face, Swivel, Straight - Female Flat Face, Swivel 45°

1шт.

5

86599522

HYDRAULIC HOSE,1.00" ID x 70.50" L, SAE 100R12 or 100R13

Return, 1" ID x 70 - 1/2" Long

1шт.

6

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

3шт.

7

86640841

DISC

1шт.

8

86516482

HYDRAULIC MOTOR

HD - Refer to Fig. 038B-1

1шт.

For HDX Series Headers

1шт.

8

86643697

REMAN-HYD MOTOR

Remanufactured HYDRAULIC MOTOR - N.A. Only

1шт.

8

86643698

CORE-MOTOR HYDRAULIC

Return No, HYDRAULIC MOTOR - N.A. Only

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

9

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

45° Includes: O-Rings

1шт.

10

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

For Face seal

1шт.

11

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Includes: Ref. 10, O-Rings

1шт.

12

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

13

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

Includes: O-Rings

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Face Seal

1шт.

14

86564734

COUPLING

1шт.

15

86544945

QUICK MALE COUPLING

Male

1шт.

16

9820148

COUPLING,1-1/16" - 12

Male

1шт.

17

86531286

WIRE HARNESS

Header Speed - Includes: these parts

1шт.

17

86547811

GUIDE PIN

HD16

1шт.

17

9861408

CAP

#3 Receptacle

1шт.

17

9623561

COUPLING

Ring 3

1шт.

17

900364

TERMINAL CONNECTOR

E18

2шт.

17

795231

TERMINAL CONNECTOR,Female, 16 SAE

Plug, Includes: 9623561 Ring

1шт.

18

86525818

HOSE

Case Drain, 3/8" ID x 77" Long - 37° Flare, Female Swivel, Straight, UNF - 37° Flare, Female Swivel, 45° Tube Elbow, 9/16" - 18 UNF

1шт.

19

9618037

DUST CAP

1шт.

20

86001464

DUST CAP

Male Coupling

1шт.

21

9618038

DUST CAP

1шт.

22

86627927

SPACER

38.1mm ID x 67mm Long

2шт.

23

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

4шт.

24

86554704

SUPPORT

Light

1шт.

Not in Sickle Head Kit

1шт.

25

86621618

WARNING LIGHT

Amber - Refer to Component Breakdown

1шт.

Not in Sickle Head Kit

1шт.

26

86631247

BRACKET

2шт.

Not in Sickle Head Kit

1шт.

27

255622

PIN

2шт.

Not in Sickle Head Kit

1шт.

28

Miscellaneous Hardware - see below

1шт.

28

425-1512

JAM NUT,Jam, 3/4"-10, G5

2шт.

28

492-11100

LOCK WASHER,1"

2шт.

28

495-11106

WASHER,1", SAE

2шт.

28

413-16144

BOLT,Hex, 1" - 8 x 9", Gr 5

2шт.

28

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

1шт.

Not in Sickle Head Kit

1шт.

28

425-1016

NUT,1"-8, G5

2шт.

28

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

Выбрано товаров: 59
