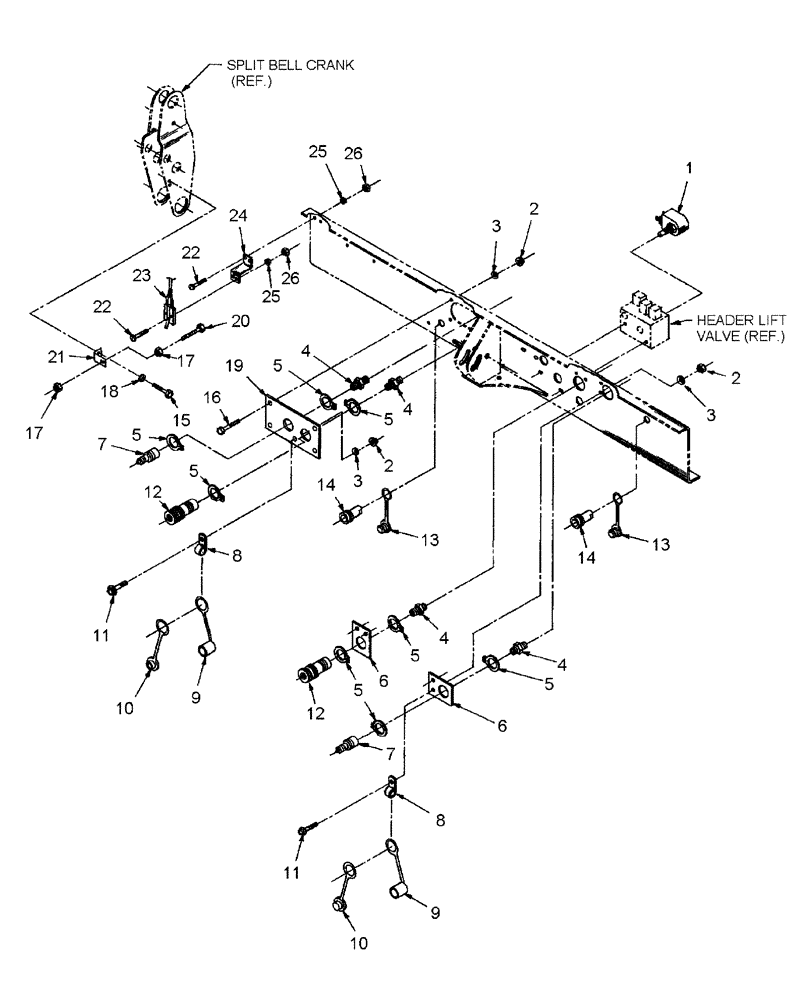

Запчасти Case IH WDX1701 (038) - QUICK ATTACH (58) - ATTACHMENTS/HEADERS

1

86509018

CONTROL VALVE

Solenoid

1шт.

2

425-286

FLANGE NUT,Flg, 3/8"-16, G5

9шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

9шт.

4

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

4шт.

5

100-11175

SNAP RING,#175, Ext

8шт.

6

86634284

MOUNTING PLATE

Quick Coupler

2шт.

7

86516547

NIPPLE

2шт.

8

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

9

9618037

DUST CAP

2шт.

10

9618038

DUST CAP

2шт.

11

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

5шт.

12

106029

COUPLING

2шт.

13

9703254

PLUG

Dust

2шт.

14

86513961

COUPLING

1/2"

2шт.

15

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

17

425-104

NUT,1/4"-20, Cl 5

2шт.

18

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

86634283

PLATE

Mounting, Quick Coupler

1шт.

20

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

21

86634286

ANGLE

1шт.

22

440-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

4шт.

23

86518733

SWITCH

SPST, N.O.

1шт.

24

86634285

SUPPORT

1шт.

25

492-11010

LOCK WASHER,#10

4шт.

26

225-14110

NUT,#10-24

4шт.
