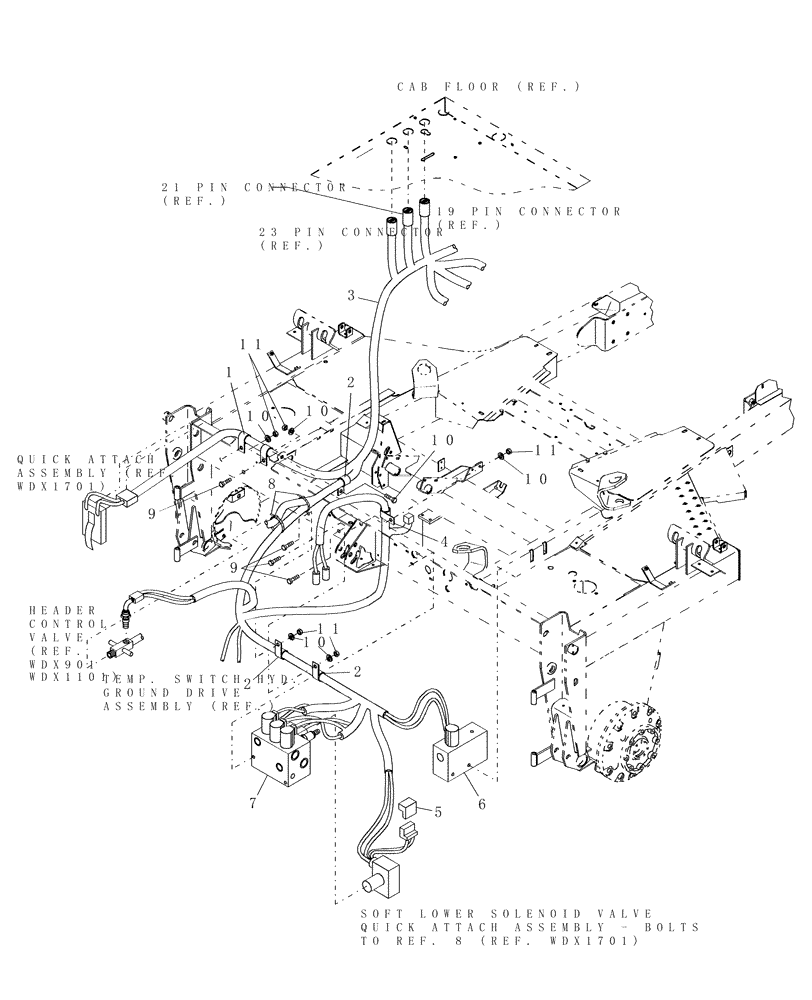

Запчасти Case IH WDX1701 (022) - ELECTRICAL FRAME, FRONT (55) - ELECTRICAL SYSTEMS
(ref.
quick attach
temp. switch hyd.
to ref. 8 (ref. wdx1701)
5
wdx1101)
(ref.)
2
cab floor (ref.)
assembly (ref.)
10
3
11
(ref.)
11
9
wdx901
11
soft lower solenoid valve
23 pin connector
4
1
wdx1701)
2
10
quick attach assembly - bolts
header
21 pin connector
10
control
10
ground drive
6
valve
9
2
7
10
(ref.)
8
assembly (ref.
19 pin connector
№
Артикул
Название
Примечание
Количество
1
515-2195
CLAMP,3/8", Insul, 1/4" Bolt
2шт.
3
86626486
WIRE HARNESS
Main Frame
1шт.
4
515-23143
CLAMP,9/16", Insul, 3/8" Bolt
1шт.
5
773464
DIODE
1A, Style 30
1шт.
6
86548795
CONTROL VALVE
2-Speed - Refer to Fig. 023
1шт.
7
86618646
VALVE BLOCK
Header Lift, Refer To Fig. 039B
1шт.
8
263117
CABLE TIE,292.1mm L, Nylon, Black
CABLE STRAP
2шт.
9
413-416
BOLT,Hex, 1/4" - 20 x 1", Gr 5
6шт.
10
322357
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
6шт.
11
425-104
NUT,1/4"-20, Cl 5
6шт.
Выбрано товаров: 11
