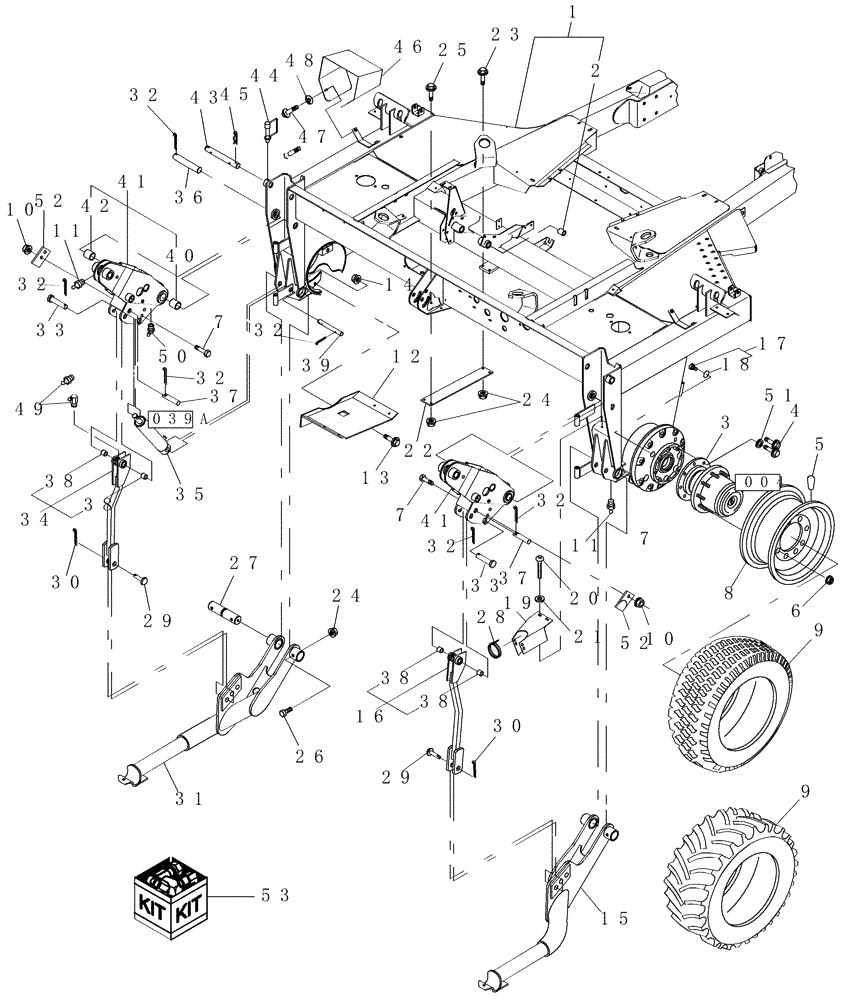

Запчасти Case IH WDX1701 (003) - HEADER LIFT, WHEELS & TIRES (44) - WHEELS

1

86636471

FRAME ASSY

Main, Includes: Ref. 2

1шт.

2

86628558

BUSHING,25.45mm ID x 28.68mm OD x 31.75mm L

2шт.

3

86621648

GEARBOX

Planetary Gear, 41.42:1, Refer to Component Breakdown

2шт.

4

86521620

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5

16шт.

5

387897R91

VALVE STEM

2шт.

5

86507333

VALVE STEM

Tubeless Tire, For Use With 8 Bolt Wheels

2шт.

6

425-2910

FLANGE NUT,Flg, 5/8"-18, G5

16шт.

7

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

2шт.

8

86631066

RIM

WHEEL 16L x 26, 8 Bolt, Use With 18.4 x 26 Tires

2шт.

9

PL

PROCURE LOCALLY

Tire, Turf 16.9 x 24

1шт.

9

PL

PROCURE LOCALLY

Tire, Cleat 16.9 x 24

1шт.

9

86621463

TYRE/TIRE

Cleat, 18.4 x 26, R4, 10 Ply

1шт.

10

231-5345

FLANGE NUT,Flg, 5/16"-18

2шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

12

86625351

SHOE

2шт.

13

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

4шт.

14

425-288

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

15

86625557

ARM ASSY.

LH

1шт.

16

86625546

LINK

LH

1шт.

17

214389

PLUG,3/4" - 16 ORB

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

19

86556618

SHIELD

2шт.

20

637964

SELF-TAP SCREW,Hex, 3/8" - 16 x 3/4"

HS, 3/8"-16 x 3/4"

4шт.

21

495-21044

WASHER,3/8"

4шт.

22

86625349

PLATE

1шт.

23

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

24

425-286

FLANGE NUT,Flg, 3/8"-16, G5

16шт.

25

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

26

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

27

86543613

PIN,50.8mm OD x 210mm L

2" x 8-1/4"

2шт.

28

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

29

514112

PIN

1" x 2-3/4"

2шт.

30

432-1224

COTTER PIN,3/16" x 1-1/2"

2шт.

31

86625559

ARM ASSY.

RH

1шт.

32

136521

COTTER PIN,5.7mm OD x 44.45mm L

Hardened, 1/4" x 1-3/4"

8шт.

33

86596512

PIN,18.95mm OD x 76.2mm L

3/4" x 3"

2шт.

34

86625547

LINK

RH

1шт.

35

86621654

HYDRAULIC CYLINDER

Refer to Fig. 039A

2шт.

Prior to PIN HCA0025000

1шт.

35

87018059

CYLINDER ASSY.

Monarch, Refer to Fig. 039A[1]

2шт.

After PIN HCA0025001

1шт.

36

9809278

SHAFT

2шт.

37

86554581

SHAFT

2шт.

38

86540300

BUSHING

4шт.

39

86546421

PIN

2шт.

40

86540292

BUSHING,34.92mm ID x 44.45mm OD x 38.1mm L

4шт.

41

86625551

ARM ASSY.

2шт.

42

262173

BUSHING,31.84mm ID x 38.2mm OD x 31.75mm L

2шт.

43

86575970

PIN ASSY.

2шт.

44

647695

PIN,7.94mm OD

Snap

2шт.

45

38-11620

PIN,1/4" x 1 1/4", Slotted

2шт.

46

86625553

SHIELD

2шт.

47

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

48

492-11031

LOCK WASHER,5/16"

4шт.

49

219-87

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

50

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

2шт.

51

130358

WASHER,16.28mm ID x 38.35mm OD x 4.11mm Thk

Hardened, 5/8"

16шт.

52

87012449

CLIP

2шт.

53

87011858

SPACER

Wheel

2шт.

Not shown

1шт.

Used only with 18.4 x 26 tire option

1шт.

Component of wheel spacer bundle, W0

1шт.
