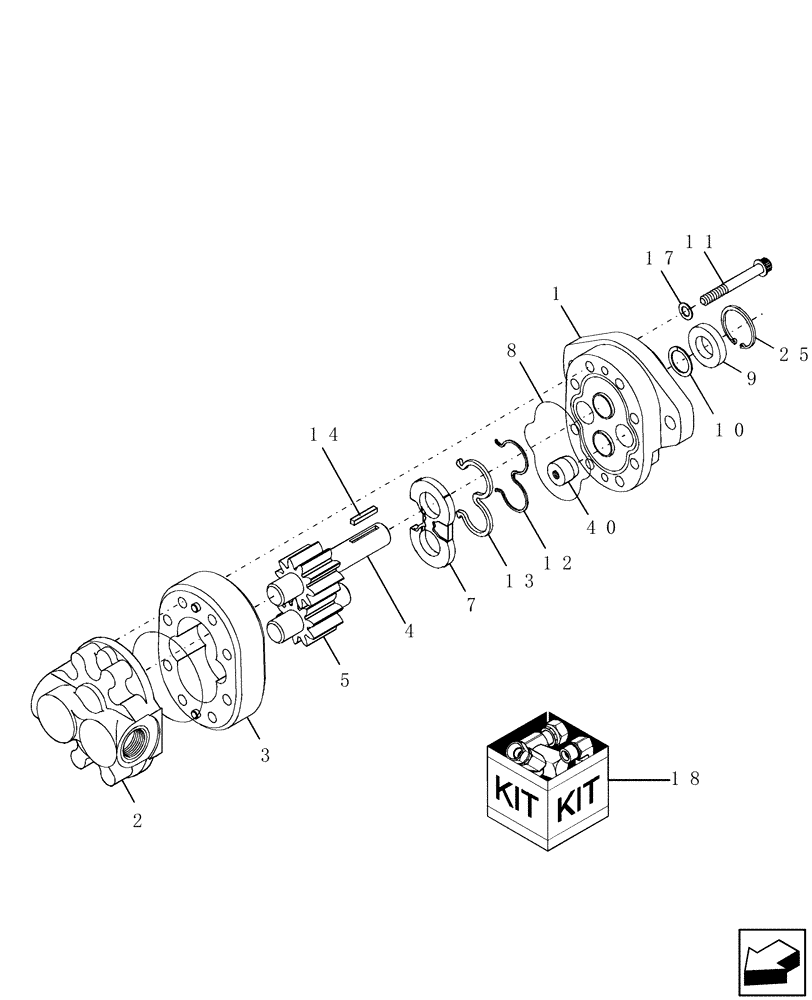

Запчасти Case IH WDX1701 (117[1]) - HYDRAULIC REEL DRIVE PUMP, 1.2 A (35) - HYDRAULIC SYSTEMS

86705514

HYDRAULIC PUMP,19.7 CC

1.2A

1шт.

1

NSS

NOT SOLD SEPARAT

Plate, Front

1шт.

2

86528323

PLATE

Back

1шт.

3

86529095

BODY

1шт.

4

NSS

NOT SOLD SEPARAT

Gear, Drive

1шт.

5

NSS

NOT SOLD SEPARAT

Gear, Idler

1шт.

7

NSS

NOT SOLD SEPARAT

Wear Plate

1шт.

8

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

9

512071

SEAL,19mm ID x 34.98mm OD x 6.73mm Thk

1шт.

10

279417

WASHER

1шт.

11

326109

12 PT SCREW

Cap, 12 Pt Hd, 5/16"-18 x 2-1/2"

8шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Backup

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

86512865

KEY

1/8" Sq x 1"

1шт.

17

NSS

NOT SOLD SEPARAT

Washer, Special

4шт.

18

86529016

SEAL KIT

Includes: Ref. 7 - 10, 12, 13, & 17

1шт.

25

100-21137

SNAP RING,1.375", Int, #137

1шт.

40

NSS

NOT SOLD SEPARAT

Plug

1шт.
