Запчасти Case IH WDX1701 (050B) - PISTON PUMP (35) - HYDRAULIC SYSTEMS

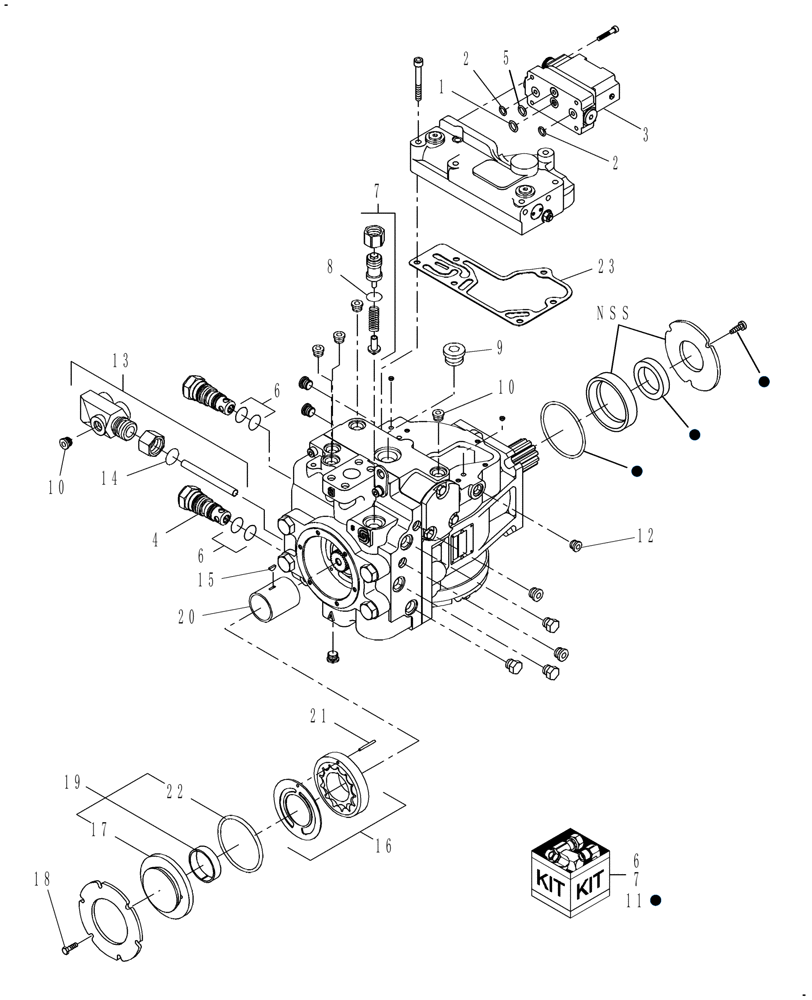

Схема запчастей Case IH WDX1701 - (050B) - PISTON PUMP (35) - HYDRAULIC SYSTEMS
7
1
23
18
17
21
12
14
5
nss
8
2
4
6
10
2
6
3
15
19
10
6
16
20
11
7
13
22
9

Артикул

Название

Примечание

Количество

86521516

HYDRAULIC PUMP,100 CC

100 CC; Includes: Entire Figure As Shown

1шт.

87298010

REMAN-HYD PUMP

Reman for New PN 86521516

1шт.

87298011

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

86837702

O-RING,0.426" ID x 0.566" OD x 0.07"

1шт.

2

86837701

O-RING,0.364" ID x 0.504" OD x 0.07"

VIT 90 -012

2шт.

3

86556477

CONTROL VALVE

Pilot

1шт.

4

9805326

HYDRAULIC VALVE

Multi-Function

2шт.

5

86837697

O-RING,0.364" ID x 0.504" OD

VIT 75 -012

1шт.

6

9803117

KIT

2шт.

Components Not sold separately

1шт.

7

9803123

KIT

CPRV-PV20 BAR, Includes Ref. 8

1шт.

Components Not sold separately

1шт.

8

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9

9841223

PLUG,1-1/16" - 12 ORB

1шт.

10

9625178

PLUG,9/16" - 18 ORB

1шт.

11

9803124

SEAL KIT

1шт.

Components Not sold separately

1шт.

12

166240

PLUG

3шт.

13

86556376

HYD CONNECTOR

Kit, Remote Fitting

1шт.

Components Not sold separately

1шт.

14

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

15

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

1шт.

16

86564550

PUMP

Charge

1шт.

17

86564548

BEARING HALF

Journal

1шт.

18

854-8035

SCREW,Hex Skt, M6 x 1 x 35mm, Cl 12.9

6шт.

19

87012443

COVER ASSY

Charge Pump

1шт.

20

87012445

COUPLING

Charge

1шт.

21

87012444

SPECIAL PIN

1шт.

22

86019294

O-RING,0.07" Thk x 3.739" ID, -44, Cl 6, 90 Duro

1шт.

23

86019296

GASKET

1шт.

Выбрано товаров: 30
