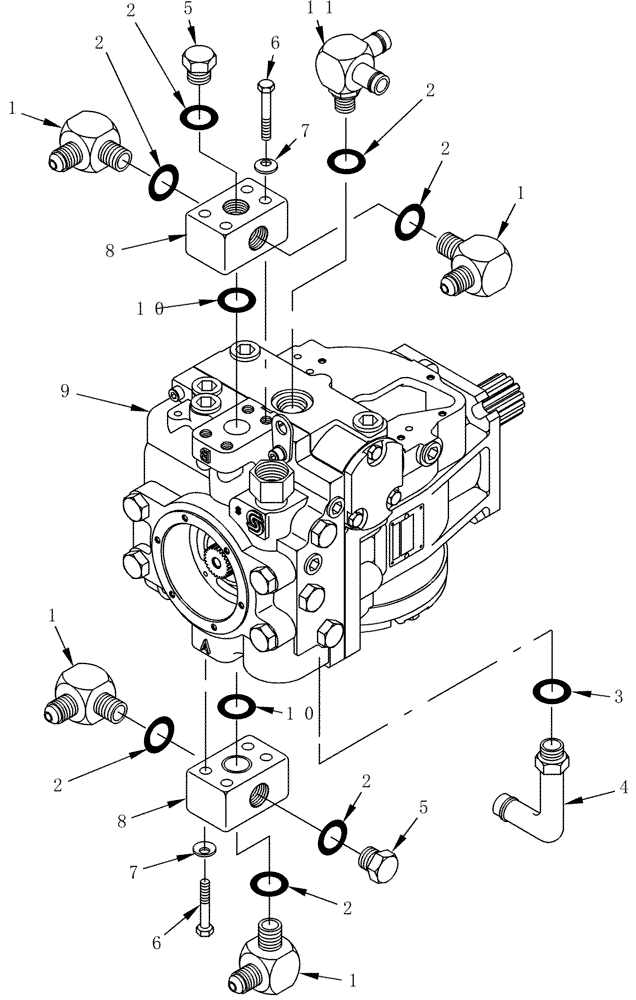

Запчасти Case IH WDX1701 (050) - PISTON PUMP (35) - HYDRAULIC SYSTEMS

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 2

4шт.

2

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

7шт.

3

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

4

86539140

ELBOW

90°

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

2шт.

6

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

8шт.

7

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

8

86532630

MANIFOLD

2шт.

9

86521516

HYDRAULIC PUMP,100 CC

Piston, Refer to Fig. 050B

1шт.

9

87298010

REMAN-HYD PUMP

Reman for New PN 86521516

1шт.

9

87298011

CORE-HYDRAULIC PUMP

Return Number

1шт.

10

238-5219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

2шт.

11

86538885

INSERT

Beaded, 90°

1шт.
