(049[02]) - HYDRAULIC FILTER CIRCUIT

Запчасти Case IH WDX1701 (049[02]) - HYDRAULIC FILTER CIRCUIT (35) - HYDRAULIC SYSTEMS

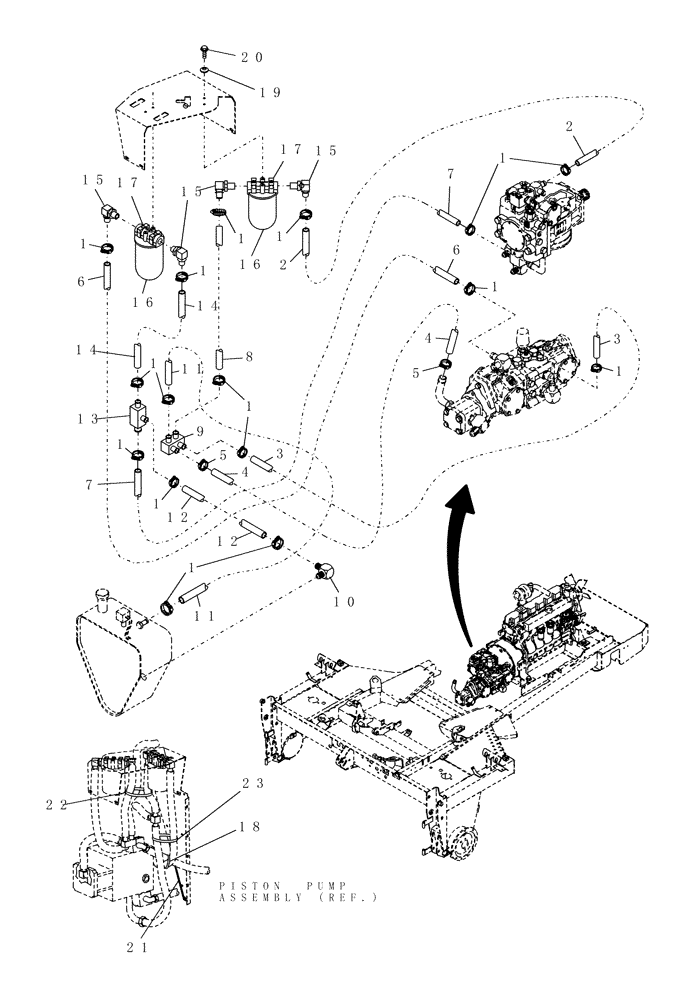

Схема запчастей Case IH WDX1701 - (049[02]) - HYDRAULIC FILTER CIRCUIT (35) - HYDRAULIC SYSTEMS
1
9
assembly (ref.)
3
1
1
21
3
13
5
2
1
7
1
6
17
2
1
piston pump
5
16
15
1
6
1
12
1
7
11
12
17
1
10
15
19
11
1
20
8
18
15
4
4
14
23
16
14
1
22
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

82012725

HOSE CLAMP,#44, M32-44

16шт.

2

84022232

HOSE

1" ID x 1-5/8" OD x 29-1/2"

1шт.

3

9621480

FLEXIBLE HOSE,1.00" ID x 23.50", SAE 100R3

Pump

1шт.

4

86514290

HOSE,19.00 mm ID x 520.00 mm, SAE 100R3

1шт.

5

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

6

86527703

HOSE,1.00" ID x 45.00", SAE 100R4

1шт.

7

799835

HOSE,1.00" ID x 25.00", SAE 100R3, SAE 30R1 Type 2 or SAE 30R2 Type2

1шт.

8

9801676

HOSE,1.00" ID x, 19.00"

1шт.

9

86530267

MANIFOLD

1шт.

10

782210

ELBOW

90°

1шт.

11

799835

HOSE,1.00" ID x 25.00", SAE 100R3, SAE 30R1 Type 2 or SAE 30R2 Type2

1шт.

12

640801

HOSE,1.00" ID x 9.25", SAE 100R3

1шт.

13

86530266

MANIFOLD

1шт.

14

86012341

INTAKE AIR HOSE,25.40 mm ID x 375.00 mm, SAE 100 R4

1шт.

15

9826753

INSERT

Beaded 90°

4шт.

16

86632018

HYDRAULIC OIL FILTER

2шт.

17

86514933

HOUSING

Head

2шт.

18

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

19

492-11031

LOCK WASHER,5/16"

4шт.

20

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

21

86516805

SOFT TRIM,31-3/4" L

.390" x .520" x 31-3/4"

1шт.

22

527350

STRAP

1/2" x 20"

1шт.

23

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.
