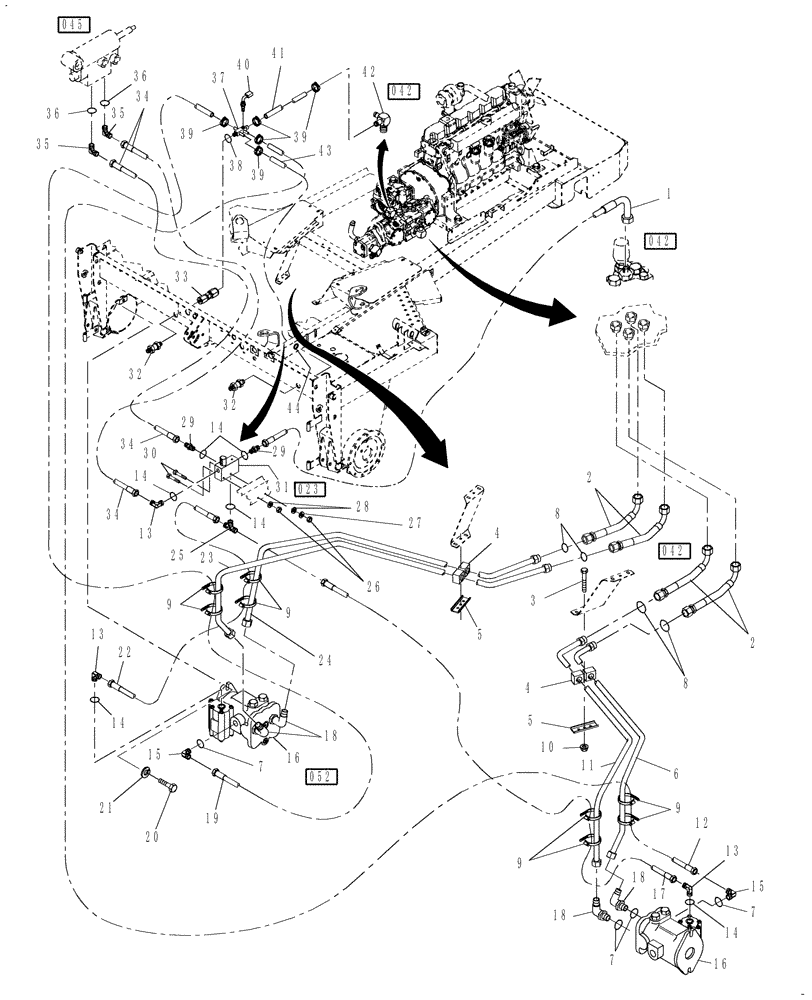

Запчасти Case IH WDX1701 (041) - HYDRAULIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

1

9821457

HYDRAULIC HOSE,.375” ID x 84” L

3/4" x 84" Long

1шт.

2

9810802

HOSE,19.05mm ID x 647.7mm L

3/4" x 25-1/2" Long

4шт.

O-Rings are on Fig. 042

1шт.

3

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

4

9846668

GROMMET

4шт.

5

9846409

CHANNEL

2шт.

6

86558656

HYD TUBE

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3шт.

8

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

8шт.

9

529070

CABLE TIE,368.3mm L

CABLE STRAP

8шт.

10

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

11

86607376

HYD TUBE

1шт.

12

86536948

HOSE

1/2" x 80" Long

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 14

3шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

15

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

Includes Ref. 7

2шт.

16

86624500

HYDRAULIC MOTOR

Wheel Drive, Variable Speed, Refer to Component Breakdown

2шт.

87349714R

REMAN-HYD MOTOR

WDX1701, 11/01-11/04,

2шт.

87349714C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

17

9821460

FLEXIBLE HOSE,9.65 mm ID x 1041.40 mm, SAE 100 R1

1шт.

18

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

Includes: Ref. 7 & 8

4шт.

19

86536948

HOSE

1/2" x 55" Long

1шт.

20

86576657

12 PT SCREW,1/2" - 13 x 1.62", Gr 8

Cap, 12 Pt Hd, G8, 1/2"-13 x 1-5/8"

4шт.

21

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2")

4шт.

22

9821459

FLEXIBLE HOSE,9.65 mm ID x 2489.20 mm, SAE 100 R1

1шт.

23

86607377

HYD TUBE

1шт.

24

86558657

HYD TUBE

1шт.

25

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 14

1шт.

26

425-104

NUT,1/4"-20, Cl 5

2шт.

27

495-21031

WASHER,1/4"

1шт.

28

492-11025

LOCK WASHER,1/4"

2шт.

29

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 14

2шт.

30

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

31

86548795

CONTROL VALVE

Spool, 2 Speed

1шт.

32

9842983

HYD CONNECTOR

Bulkhead

1шт.

33

86534517

HYD CONNECTOR

10, 37° Flare

1шт.

34

86513233

HOSE,0.25" ID x 34.00", SAE 100R1

2шт.

35

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes: Ref. 36

2шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

37

86582823

FITTING

Includes: Ref. 36

1шт.

38

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

39

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

5шт.

40

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

41

86536969

HOSE,0.75" ID x 76.00", SAE 100R3(HT)

1шт.

42

86529984

ELBOW

Hydraulic, 90° Double Elbow

1шт.

43

86605200

HOSE,12.70 mm ID x 1270.00 mm, SAE 100R6

1шт.

44

86534495

GROMMET

1шт.
