Запчасти Case IH WDX1701 (040A[01]) - HEADER SPRINGS & ADJUSTABLE HEADER FLOAT KITS, SINGLE & DUAL (35) - HYDRAULIC SYSTEMS

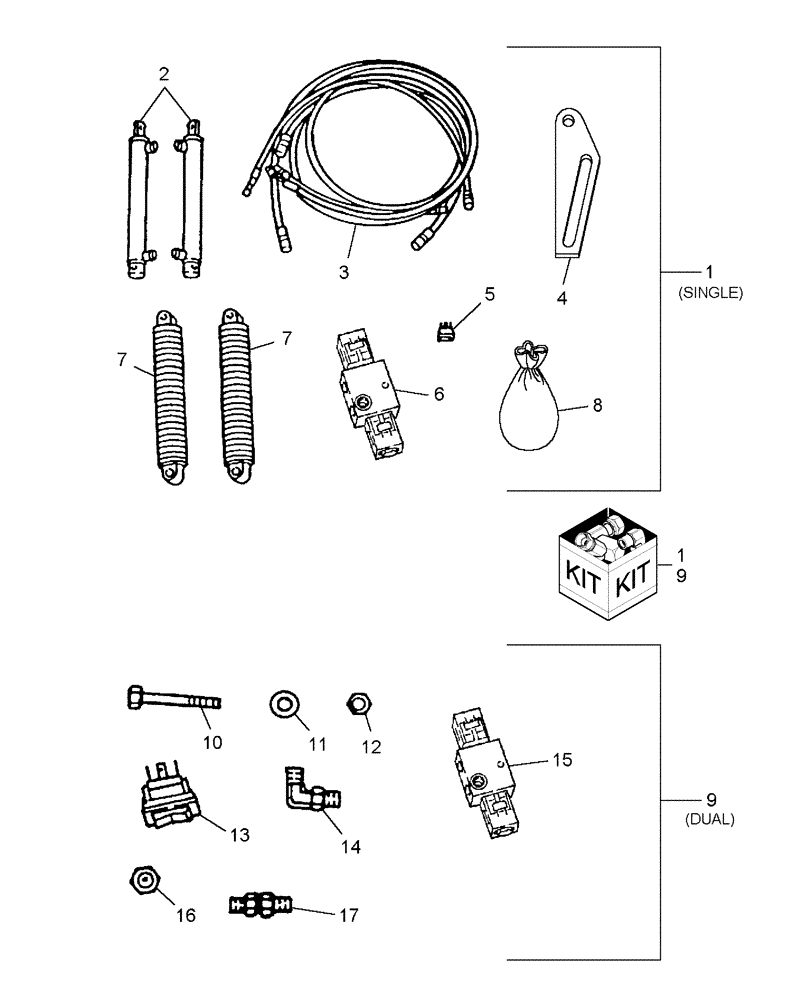

Схема запчастей Case IH WDX1701 - (040A[01]) - HEADER SPRINGS & ADJUSTABLE HEADER FLOAT KITS, SINGLE & DUAL (35) - HYDRAULIC SYSTEMS
13
15
4
7
1
1
12
11
6
17
9
3
14
5
2
7
16
10
8

Артикул

Название

Примечание

Количество

1

W0

ORDER WHOLEGOODS

Kit, Adjustable Header Float, Single, W0 pn was ( 715323016 )

1шт.

Includes: Refs. 2 thru 8 & Instructions

1шт.

2

86548520

HYDRAULIC CYLINDER

Refer To Fig. 040A-2

2шт.

2

87018185

HYDRAULIC CYLINDER,Double Acting, 19.05mm Rod, 223.77mm Stroke

Refer To Fig. 040A-3

2шт.

Replacement Part Only; Not Used In Kits Or Production

1шт.

3

9821685

FLEXIBLE HOSE,9.65 mm ID x 1600.00 mm, SAE 100 R2

Both Ends Straight

1шт.

3

9821684

HOSE,9.65 mm ID x 1854.20 mm, SAE 100 R2

Both Ends Straight

1шт.

3

86520437

HOSE

3/8" ID x 63" L - One End Straight, One End 45°

1шт.

3

86520438

HOSE

3/8" ID x 105" L - One End Straight, One End 45°

1шт.

4

86567495

STRAP

2шт.

5

445632

SWITCH

Rocker

1шт.

6

86503633

CONTROL VALVE

Includes:

1шт.

6

86509021

COIL

1шт.

6

86509020

CONTROL VALVE

1шт.

6

590907

NUT

Jam, 1/2"-30

2шт.

6

129998

PLUG,1/2" - 20 ORB

Incl. O-Ring

1шт.

6

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

6

86508168

SEAL KIT

1шт.

7

9809651

SPRING NUT

& Spring, Includes: Nut & Spring

2шт.

7

603968

SPRING NUT

Spring

4шт.

7

263852

SPRING

Extension

2шт.

8

Hardware, Includes:

1шт.

8

85700693

NUT,5/8" - 11, Gr C

4шт.

8

280129

NUT,1/4"-20

2шт.

8

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

4шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

495-21038

WASHER,5/16"

1шт.

8

495-21031

WASHER,1/4"

2шт.

8

432-816

COTTER PIN,1/8" x 1"

8шт.

8

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

8

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

8

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

8

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

8

256112

SPACER

2шт.

8

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

1шт.

8

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

8

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

2шт.

8

86643219

CLAMP,Tube, 3/4"

3/4" Tube

2шт.

8

9846669

HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male

Straight Thread Includes: O-Ring

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

4шт.

8

218-5243

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

2шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

86520095

PIN

4шт.

8

495-21094

WASHER,7/8"

8шт.

9

W0

ORDER WHOLEGOODS

Kit, Dual Adjustable Header Float (716538016 WO pn )

1шт.

Includes: Refs. 10 - 17 & Instructions

1шт.

10

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

11

495-21038

WASHER,5/16"

1шт.

12

280736

NUT,5/16"-18, GC

1шт.

13

445632

SWITCH

Rocker

1шт.

14

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

86503633

CONTROL VALVE

Identical to Ref. 6

1шт.

16

218-754

CAP,37 Degree, 9/16"-18

1шт.

17

9846669

HYD CONNECTOR,9/16" - 18 Male x 9/16" - 18 Male

Straight Thread, Includes: O-Ring

1шт.

17

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
