Запчасти Case IH WDX1701 (040[03]) - HYDRAULIC CYLINDER, TILT, 86633954 (35) - HYDRAULIC SYSTEMS

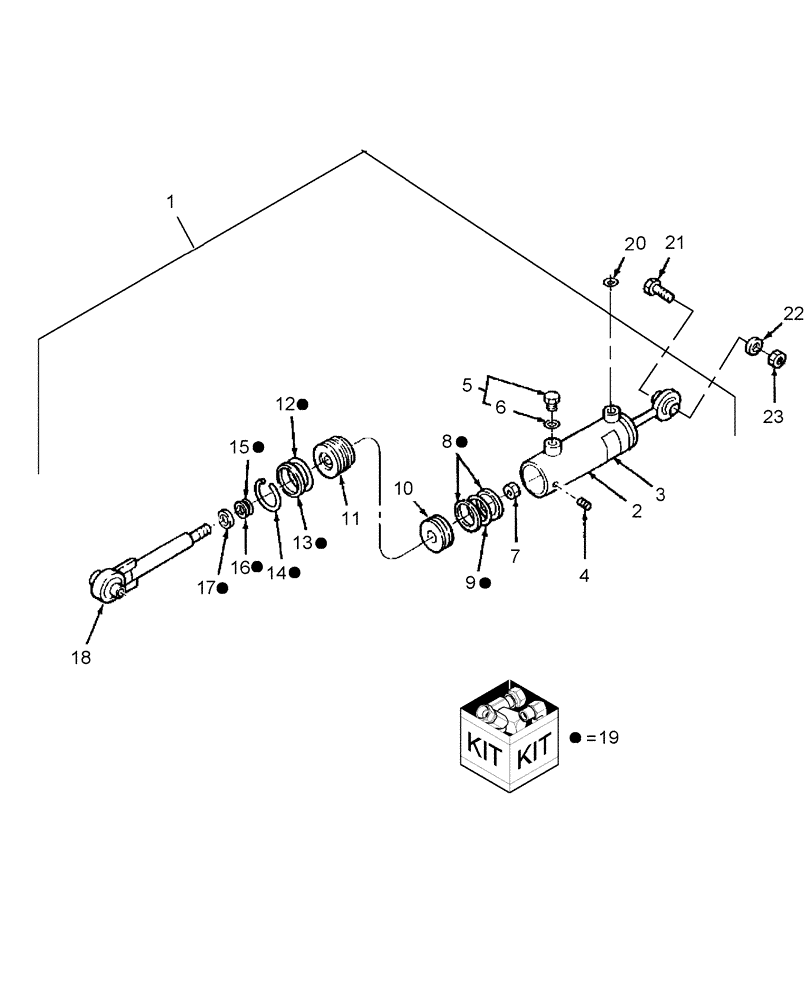

Схема запчастей Case IH WDX1701 - (040[03]) - HYDRAULIC CYLINDER, TILT, 86633954 (35) - HYDRAULIC SYSTEMS
5
7
21
20
18
10
1
14
9
15
17
22
23
8
13
12
11
6
19
5
2
16
3

Артикул

Название

Примечание

Количество

1

86633954

HYDRAULIC CYLINDER

Tilt

1шт.

1

87058437R

REMAN-HYD CYLINDER

WDX901 (12/01-11/04), WDX1101 (10/01-11/04), WDX1701 (11/01-11/04), All CASE IH SELF PROPELLED WINDROWER TRACTOR, Tilt, Reman for New PN 86633954

1шт.

1

87058437C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

86541453

DECAL

Tilt Gauge

1шт.

4

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

5

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 6

2шт.

7

88130

NUT,1/2"-20, GC

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

8

511297

SEAL,41.22mm ID x 50.8mm OD x 1.93mm Thk

1.638" ID x .064" Thk

2шт.

9

238-5326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 5, 75 Duro

1шт.

10

769555

PISTON

1шт.

12

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

11

769556

CYLINDER HEAD

1шт.

13

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

14

512016

SNAP RING

Int, 2.125"

1шт.

15

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

16

121857

WASHER

Backup, .765" ID x .048" Thk, Ref. 37

1шт.

17

514100

OIL SEAL

Wiper

1шт.

18

86541531

ROD

1шт.

19

784339

REPAIR KIT

Includes: Refs. 8, 9 & 12 thru 17

1шт.

21

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

2шт.

If Cylinder Is Secured By Pins Instead Of Bolts, See Fig. 001, Ref. 18, 86510381

1шт.

20

261066

ORIFICE,9/16" - 18, 0.813" Orifice

.032"

2шт.

22

492-11075

LOCK WASHER,3/4"

2шт.

23

425-1012

NUT,3/4"-10, G5

2шт.
