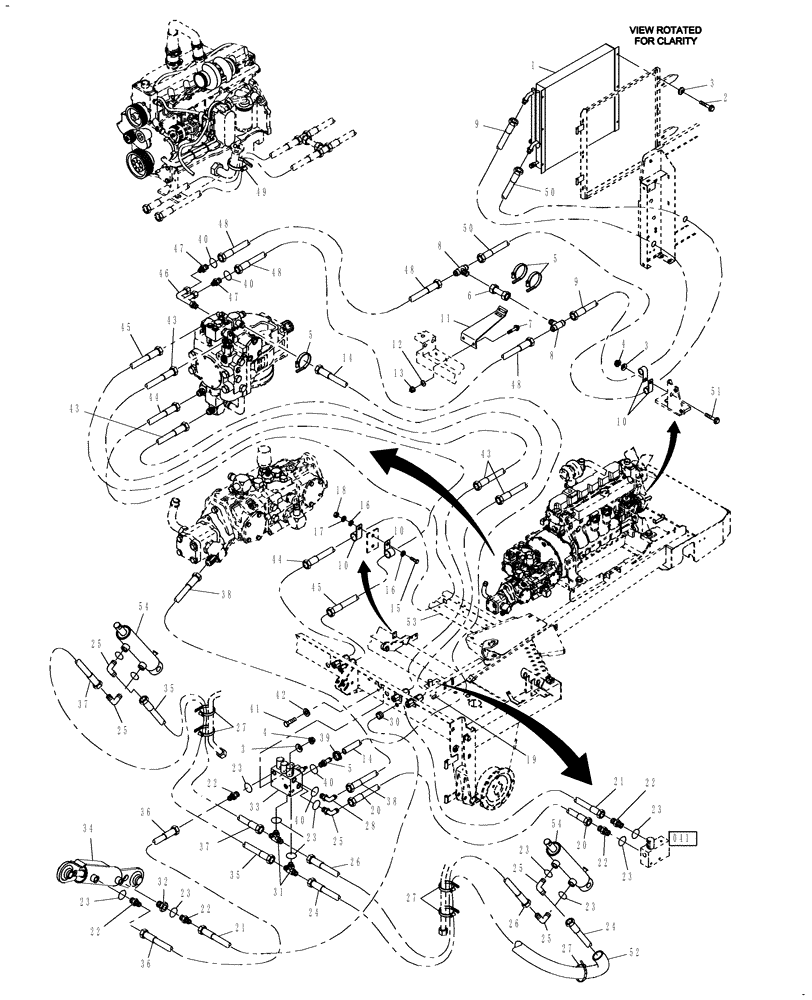

Запчасти Case IH WDX1701 (039[02]) - HYDRAULIC HEADER LIFT (35) - HYDRAULIC SYSTEMS

1

86521515

OIL COOLER

Condensor

1шт.

2

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

3

492-11031

LOCK WASHER,5/16"

9шт.

4

425-285

FLANGE NUT,Flg, 5/16"-18, G5

3шт.

5

9706921

HOSE CLAMP,12.7mm - 35mm

Hose

4шт.

6

636715

HYDRAULIC VALVE

1шт.

7

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

8

218-556

TEE,1 1/16"-12, 37 Degree x 3/4"-14, NPTF Br

2шт.

9

86540229

FLEXIBLE HOSE

3.4" ID x 1-1/4" OD x 75", Female Swivel, 37° Flare

1шт.

10

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

11

86540242

BRACKET

1шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

13

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

14

86536969

HOSE,0.75" ID x 76.00", SAE 100R3(HT)

1шт.

15

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

16

495-21031

WASHER,1/4"

2шт.

17

492-11025

LOCK WASHER,1/4"

1шт.

18

425-104

NUT,1/4"-20, Cl 5

1шт.

19

617215

MOLDING

, Serial Range: Cut-Fit

1шт.

20

9821458

FLEXIBLE HOSE,9.65 mm ID x 457.20 mm, SAE 100 R1

Female Swivel, 37° Flare

1шт.

21

9821461

FLEXIBLE HOSE,9.65 mm ID x 990.60 mm, SAE 100 R1

Female Swivel, 37° Flare

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 23

5шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

5шт.

24

86544242

HOSE,9.65 mm ID x 1651 mm

Female Swivel, 37° Flare

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 23

5шт.

26

9821469

HOSE,9.65 mm ID x 2032.00 mm, SAE 100 R2

80", Female Swivel

1шт.

27

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

28

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Includes Ref. 29

1шт.

29

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

30

237915

GROMMET

7/8" ID x 1-5/8" OD

1шт.

31

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 23

2шт.

For Draper Head Operation, See Figure Note

1шт.

32

261066

ORIFICE,9/16" - 18, 0.813" Orifice

.032"

1шт.

33

86618646

VALVE BLOCK

Manifold, Lift, Refer To Component Breakdown

1шт.

34

86633954

HYDRAULIC CYLINDER

Tilt, Refer to Fig. 040(03)

1шт.

34

87058437R

REMAN-HYD CYLINDER

WDX1701 CASE IH SELF PROPELLED WINDROWER TRACTOR, Tilt, Prior to PIN (11/01-11/04), Reman for New PN 86633954

1шт.

34

87058437C

CORE-HYD CYLINDER

Return Number

1шт.

Prior to PIN

1шт.

34

87018040

HYDRAULIC CYLINDER

Tilt, Monarch, Refer to Fig. 040(04)

1шт.

34

87058437R

REMAN-HYD CYLINDER

WDX1701 CASE IH SELF PROPELLED WINDROWER TRACTOR, Tilt, Monarch, After PIN (11/01-11/04), Reman for New PN 87018040

1шт.

34

87058437C

CORE-HYD CYLINDER

Return Number

1шт.

After PIN

1шт.

Used after July 1, 2003

1шт.

35

86544243

HOSE,9.65 mm ID x 2108.2 mm

Female, 37° Flare

1шт.

36

9821682

FLEXIBLE HOSE,9.65 mm ID x 609.60 mm, SAE 100 R2

Female, 37° Flare

1шт.

37

9821474

HOSE,9.65 mm ID x 1524.00 mm, SAE 100 R2

3/8" ID x 7/8" OD x 60", Female,/Male

1шт.

38

86546420

FLEXIBLE HOSE,1473.2 mm x 12.70, SAE 100R2

Female Swivel, 37°

1шт.

39

766464

HYD CONNECTOR

Includes: Ref. 40

1шт.

40

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3шт.

41

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

2шт.

42

495-21038

WASHER,5/16"

2шт.

43

86535216

HOSE,0.75" ID x 80.00"

Female Swivel, 37° Flare

2шт.

44

86546666

FLEXIBLE HOSE,1682.75 mm x 19.05, SAE 100R2 TYPE AT

Female Swivel, 37° Flare

1шт.

45

86546665

FLEXIBLE HOSE,1778 mm x 19.05, SAE 100R12

Female Swivel, 37° Flare

1шт.

46

86556376

HYD CONNECTOR

Remote Filtration

1шт.

47

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Includes: Ref. 40

2шт.

48

86536974

FLEXIBLE HOSE,609.60 mm x 19.05, SAE 100R3(HT)/SAE 100R1 TYPE AT (HT)

Female Swivel, 37° Flare

2шт.

49

529070

CABLE TIE,368.3mm L

CABLE STRAP

3шт.

50

86536975

FLEXIBLE HOSE

3/4" ID x 1-1/4" OD x 60-1/2", Female Swivel, 37° Flare

1шт.

51

86521612

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

1шт.

52

794839

PROTECTING COVER

Braided Nylon

1шт.

53

617215

MOLDING

72" Long, Serial Range: Cut-Fit

1шт.

54

86621654

HYDRAULIC CYLINDER

Lift, Refer to Fig. 039A

2шт.

Prior to PIN HCA0025000

1шт.

54

87018059

CYLINDER ASSY.

Lift, Monarch, Refer to Fig. 039A[1]

2шт.

After PIN HCA0025001

1шт.
