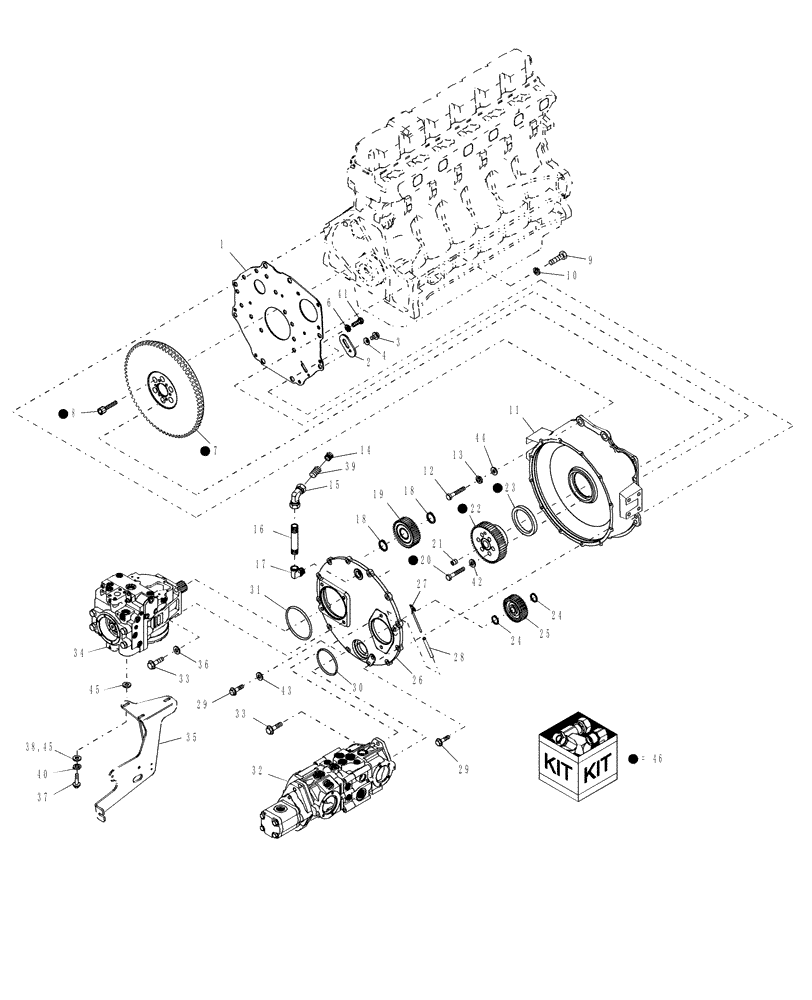

Запчасти Case IH WDX1701 (053) - FLYWHEEL & GEARBOX (14) - MAIN GEARBOX & DRIVE

1

83998895

PLATE

Engine Rear

1шт.

2

81804217

COVER

1шт.

3

86521551

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

4

492-11031

LOCK WASHER,5/16"

1шт.

5

413-714

BOLT,Hex, 7/16" - 14 x 7/8", Gr 5

2шт.

6

492-11044

LOCK WASHER,7/16"

2шт.

7

86552507

ENGINE FLYWHEEL

Includes: Ring Gear

1шт.

7

86627869

ENGINE FLYWHEEL

Includes: Ring Gear

1шт.

Used W/Kit 87046300

1шт.

7

83949153

RING GEAR

1шт.

8

D9NN6379AB

SCREW

Socket Head, 9/16" x 2"

6шт.

9

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

4шт.

10

492-11062

BEARING WASHER,5/8"

4шт.

11

86543187

HOUSING

Flywheel

1шт.

12

86565805

HEX SOC SCREW,3/4" - 16 x 2.12"

2шт.

13

492-11075

LOCK WASHER,3/4"

2шт.

14

46566

BREATHER

1шт.

15

88765

ELBOW

3/4" - 45°

1шт.

16

509987

PIPE

Pipe. 3/4" x 6"

1шт.

17

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

18

100-11175

SNAP RING,#175, Ext

2шт.

19

86521846

GEAR

32T

1шт.

20

61-33848

HEX SOC SCREW,3/8"-16 x 3"

6шт.

20

61-35044

HEX SOC SCREW,1/2" - 13 x 2-3/4"

6шт.

Used W/Kit 87046300

1шт.

21

591780

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

1шт.

22

86626776

GEAR

47T, Kit, Includes: (1) Gear 47 T, Ref's 20 (6), 21(1) & 42 (6)

1шт.

22

86627867

GEAR

Gear, 47T

1шт.

Used W/Kit 87046300

1шт.

23

9790499

OIL SEAL,95.25mm ID x 117.65mm OD x 12.7mm Thk

1шт.

24

100-1198

SNAP RING,#98, Ext

2шт.

25

87600186

GEAR

29T, For Windrowers

1шт.

26

86522661

COVER

Gear Box

1шт.

27

87801533

DIPSTICK

Indicator, Oil Level

1шт.

28

86522662

TUBE,9.52 mm OD x 68.00 mm L

1шт.

29

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

12шт.

30

238-5045

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

1шт.

31

238-5250

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

32

86624409

HYDRAULIC PUMP

Tandem

1шт.

32

84261789R

REMAN-HYD PUMP

WDX901, WDX1101, WDX1701, Reman For New P/N's 84261789, 86624409,

1шт.

32

84261789C

CORE-HYDRAULIC PUMP

Return Number

1шт.

33

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

4шт.

34

86521516

HYDRAULIC PUMP,100 CC

Piston, Refer to Fig. 050B

1шт.

34

87298010

REMAN-HYD PUMP

Reman for New PN 86521516

1шт.

34

87298011

CORE-HYDRAULIC PUMP

Return Number

1шт.

35

86554138

BRACKET

Use Existing Hardware

1шт.

36

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

(1/2" ID x 1" OD)

6шт.

37

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

38

495-21038

WASHER,5/16"

3шт.

Prior to PIN

1шт.

39

9821756

PLUG

1шт.

40

492-11031

LOCK WASHER,5/16"

1шт.

41

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

2шт.

42

86596653

WASHER,10.3mm ID x 16.2mm OD x 1.91mm Thk

6шт.

43

48055

WASHER

1шт.

44

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

2шт.

45

252687

WASHER,0.34" ID x 0.75" OD x 0.09" Thk

6шт.

After PIN

1шт.

46

87046300

KIT

Flywheel; See S.B. 2005/03-P4

1шт.
