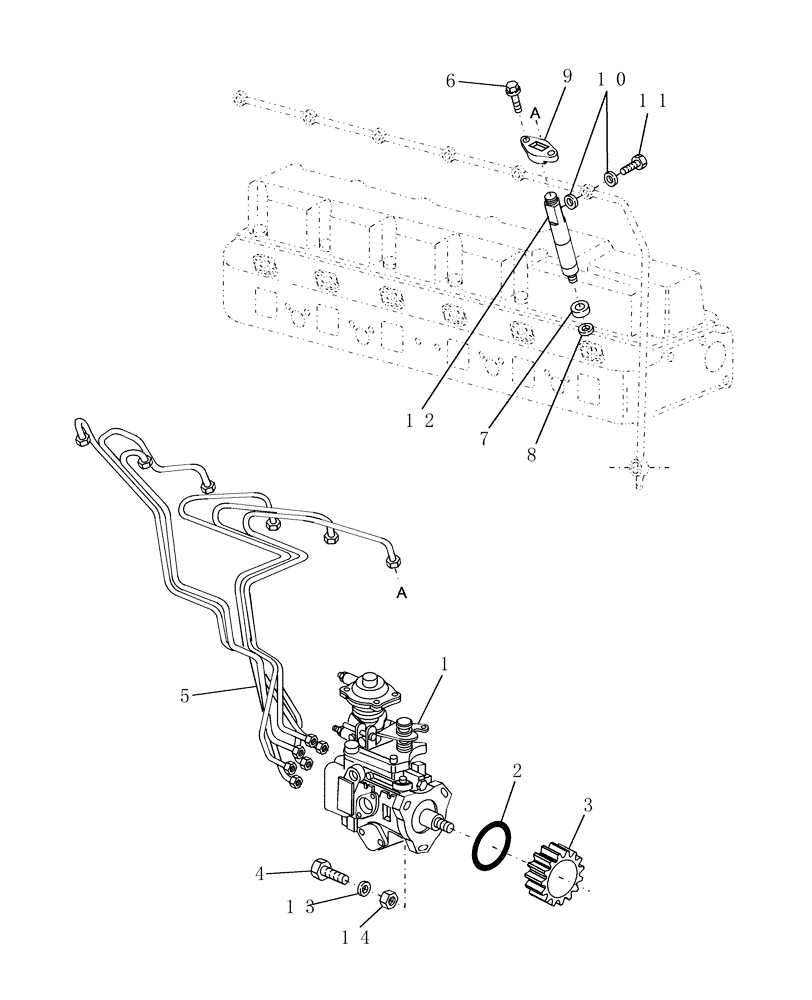

Запчасти Case IH WDX1701 (076) - ENGINE, FUEL INJECTION PUMP, INJECTORS & LINES (10) - ENGINE

1

87801140

FUEL INJECTION PUMP

166 HP Engine

1шт.

Components Not serviced; dealers must have serviced at specialized pump dealer

1шт.

2

14459381

O-RING,48.9mm ID x 2.62" Width

1шт.

3

87840107

DRIVING GEAR

1шт.

4

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

5

87801871

RIGID TUBE,385 mm L

1шт.

6

87840522

BOLT,Hex Flg, 5/16" - 18 x 1.38"

5/16"-18 x 1-3/8"

12шт.

7

F2NN9F596AA

SEAL,20.6mm ID x 31.8mm OD x 13.2mm Thk

6шт.

8

81873921

SEALING WASHER,7.4mm ID x 13.75mm OD x 1.6mm Thk

6шт.

9

E6HZ9N944A

BRACKET

6шт.

10

373816

COPPER WASHER,6.2mm ID x 9.9mm OD x 1mm Thk

12шт.

11

87800617

BOLT

6шт.

12

87840068

FUEL SYSTEM INJECTOR

6шт.

87840068R

REMAN-INJECT NOZZLE

WDX1701

6шт.

87840068C

CORE-NOZZLE, INJECT

Return Number

1шт.

13

14437585

O-RING,8.00mm ID x 1.50mm

3шт.

14

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.
