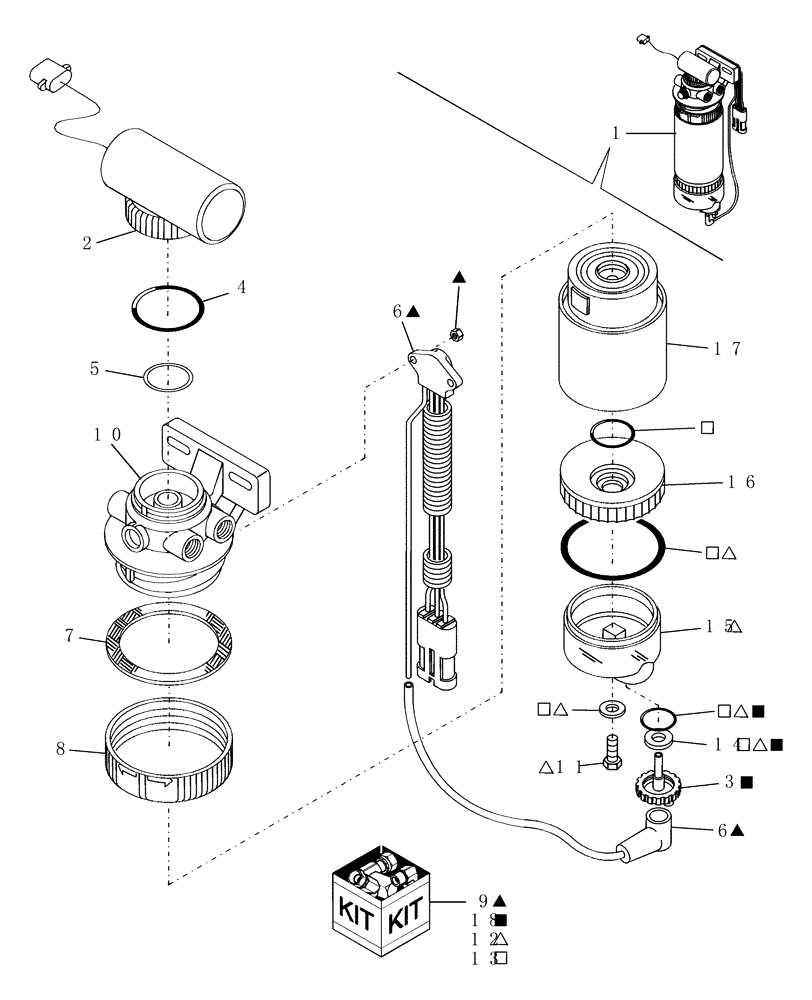

Запчасти Case IH WDX1701 (075) - ENGINE, FUEL SYSTEM, LIFT PUMP, FUEL/WATER SEPARATOR & FILTER (10) - ENGINE

1

87802331

FILTER ASSY

Fuel W/Integral Elec Lift Pump

1шт.

2

87327688

ELECTRIC PUMP

Kit

1шт.

Neutral Switch Ref. Not Used On WDX901 & WDX1101

1шт.

3

87800664

DRAIN VALVE

Drain

1шт.

4

87840174

O-RING

1шт.

5

87802128

O-RING

1шт.

6

87800663

KIT

Module Assy.

1шт.

7

87840171

SEAL

1шт.

8

87840170

LOCKING RING

1шт.

9

87801007

KIT

Water Sensor

1шт.

10

87802203

FUEL FILTER

1шт.

Includes: Refs. 4 & 5

1шт.

11

87801005

KIT

Draw

1шт.

12

87801005

KIT

Bowl Module

1шт.

13

87801004

SEAL KIT

Bowl Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Valve, Drain

1шт.

15

87840182

BOWL

Header

1шт.

16

NSS

NOT SOLD SEPARAT

1шт.

17

87802923

FUEL FILTER

30 Micron

1шт.

18

87801006

KIT

Drain Valve Sensor

1шт.
