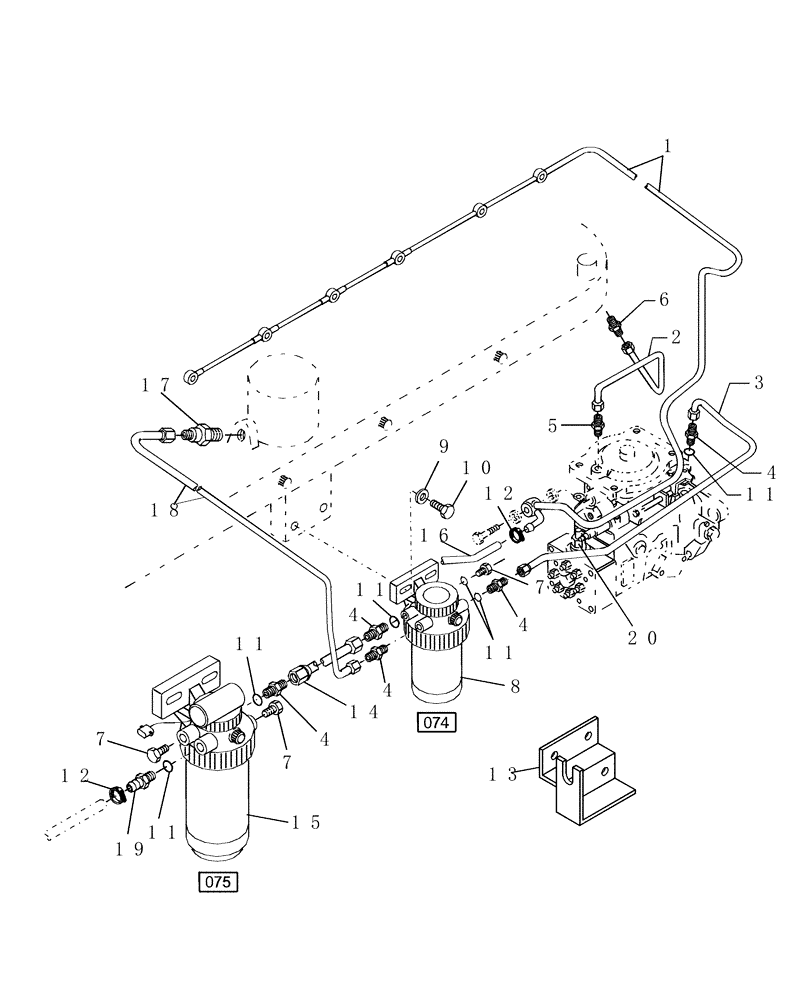

Запчасти Case IH WDX1701 (073) - ENGINE, INJECTION PUMP, SEPARATOR & LINES (10) - ENGINE

1

87841125

HYD TUBE,.25" OD

1шт.

2

87840757

RIGID TUBE,.187" OD

1шт.

3

87800521

FUEL TUBE,7.92 mm OD x 258.6, 54.3 mm L

1шт.

4

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

4шт.

5

390275S

FITTING

1шт.

6

87840209

FITTING

1шт.

7

87840656

PLUG

2шт.

8

87802168

FILTER ASSY

Refer to Fig. 074

1шт.

9

44877S36

WASHER,10.41mm ID x 19.05mm OD x 2.41mm Thk

3/8"

4шт.

10

302264S36

SCREW

HSH, 3/8"-16 x 1-1/2"

4шт.

10

302264S36

SCREW

Socket Head, Allen, 3/8"-16 x 1.75"

4шт.

12

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

13

86524426

SUPPORT

1шт.

14

87801397

FUEL TUBE,8.05 mm OD x 79 mm L

1шт.

15

87802331

FILTER ASSY

Fuel W/Integral Elec Lift Pump, Ref to Fig. 075

1шт.

16

690681

HOSE,7.94mm ID x 3352.8mm L, SAE 30R7

Cut to Fit

1шт.

17

87800843

THERMOSTART

1шт.

18

87801627

TUBE,4.75 mm OD x 178.3, 155.7 mm L

Intake Manifold Heater Inlet

1шт.

19

82012598

FITTING

1/2-20

1шт.

20

8190393

SOLENOID

Solenoid, Fuel Shut Off

1шт.

11

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

3шт.
