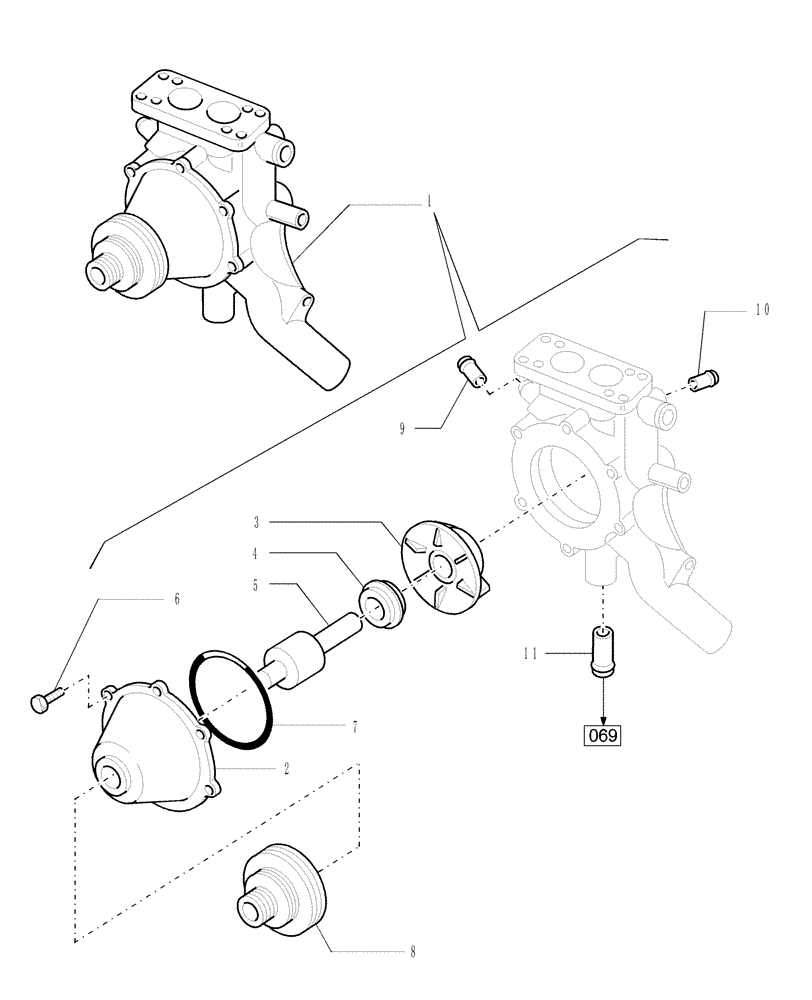

Запчасти Case IH WDX1701 (072) - ENGINE, WATER PUMP (10) - ENGINE

1

87801637

WATER PUMP

Includes: Ref. 2 - 11

1шт.

1

82847713R

REMAN-WATER PUMP

WDX1701, Reman For New P/N's 87801637 & 82847713,

1шт.

1

82847713C

CORE-WATER PUMP

Return Number

1шт.

2

82847714

COVER

Includes: Ref 3, 4, 5 & 8

1шт.

2

82847714R

REMAN-WATER PUMP

1шт.

2

82847714C

CORE-WATER PUMP

Return Number

1шт.

3

87840010

IMPELLER

1шт.

4

E9HN8A559AA

SEAL,15.88mm ID x 53.34mm OD x 21.84mm Thk

1шт.

5

E5HN8530BA

BEARING ASSY,47.63mm OD x 136.6mm L

1шт.

6

16287221

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

7

87840712

GASKET,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

1шт.

8

87801638

PULLEY,114.3mm OD

1шт.

9

87840365

TUBE,20 mm OD x 50 mm L

1шт.

10

87840710

TUBE,9.30 mm OD x 35 mm L

1шт.

11

87841218

TUBE,1" OD x 2.12" L

1шт.
