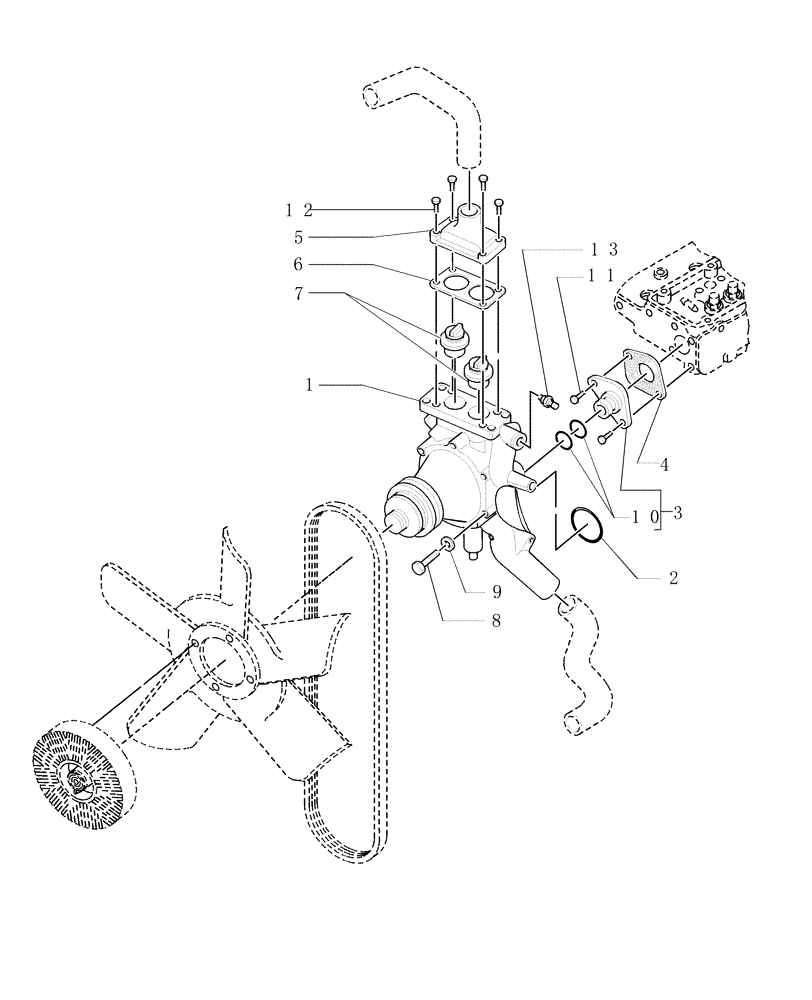

Запчасти Case IH WDX1701 (071) - ENGINE, WATER PUMP, FAN (10) - ENGINE

1

87801637

WATER PUMP

Refer to Fig. 072

1шт.

82847713R

REMAN-WATER PUMP

WDX1701, Reman For New P/N's 87801637 & 82847713,

1шт.

82847713C

CORE-WATER PUMP

Return Number

1шт.

2

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

3

F0NN8A544AA

FLANGE

1шт.

4

87800983

GASKET,0.4mm Thk

1шт.

5

81876917

HOUSING

1шт.

6

D8NN8255AA

GASKET

1шт.

7

87800842

THERMOSTAT

2шт.

8

413-780

BOLT,Hex, 7/16" - 14 x 5", Gr 5

1шт.

8

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

3шт.

9

492-11044

LOCK WASHER,7/16"

4шт.

10

14463881

O-RING,1.359" ID x 0.139" Width

2шт.

11

82853254

BOLT,Hex Flg, 7/16" - 14 x 1"

7/16"-14 x 1"

2шт.

12

56521S36

FLANGE BOLT

5/16"-18 x 1"

4шт.

13

9712608

TEMPERATURE SENDER,3/8" - 18

1шт.
