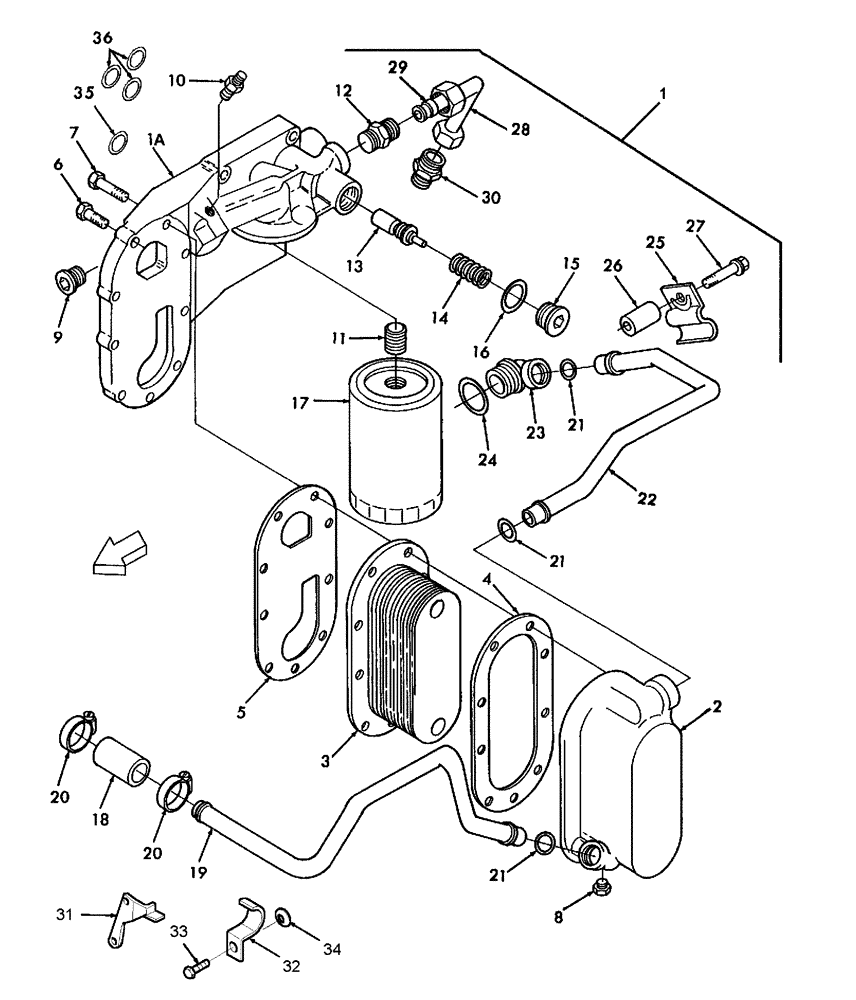

Запчасти Case IH WDX1701 (069) - ENGINE, OIL COOLER & FILTER (10) - ENGINE

1

87353931

OIL COOLER

Includes: Ref. 1A - 16

1шт.

1a

NSS

NOT SOLD SEPARAT

Support

1шт.

2

87840259

COVER

1шт.

3

E9HN6A640AA

OIL COOLER

Element & Plate

1шт.

4

NSS

NOT SOLD SEPARAT

Gasket, Serial Range: Cover-Plate

1шт.

Use Liquid Gasket

1шт.

5

NSS

NOT SOLD SEPARAT

Gasket, Plate to Support Hd.

1шт.

Use Liquid Gasket

1шт.

6

56543S36

SCREW

Hex Flange Hd., 3/8"-16 x 1-3/4"

7шт.

7

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

2шт.

8

88071

PLUG

Pipe, 1/8"-27

1шт.

9

87840S36

PLUG

Hex Socket, 3/4"-14 x .57"

3шт.

10

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

1шт.

11

E5HN6890AA

INSERT

1-12 x 1-1/2"

1шт.

12

F2NN6A863AA

HYD CONNECTOR

1шт.

13

F2NN6A809AA

VALVE PRESSURE RELIE

1шт.

14

F2NN6670BA

SPRING

Relief Valve

1шт.

15

E0NNF947DA

PLUG,1 1/16"-12 SAE

1шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

17

86980031

ENGINE OIL FILTER

Oil

1шт.

18

87840711

HOSE

Water Inlet

1шт.

19

87840695

RIGID TUBE,1" OD

Water Inlet

1шт.

20

81876821

CLAMP

Hose, Size 3

2шт.

21

NLS

NO LONGER SERVICED

3шт.

22

87802211

TUBE,1" OD

Water Outlet

1шт.

23

82020400

HYD CONNECTOR

Water Outlet

1шт.

24

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

1шт.

25

F2NN6B751BA

BRACKET

Tube Support

1шт.

26

F2NN6N765AA

SPACER,12.7mm ID x 25.4mm OD x 46mm L

Oil Cooler Tube Bracket

1шт.

27

56566S36

SCREW

Flange Hd. 7/16"-14 x 2-1/2"

1шт.

28

F2NN6N896AB

TUBE,0.625" OD x 3.96, 3.67" L

Relief Valve Vent Includes: Ref. 29

1шт.

29

F2NN6N910AA

FERRULE

2шт.

30

F2NN6A863AA

HYD CONNECTOR

1шт.

31

87841214

BRACKET

Oil Cooler Tube Support

1шт.

32

86556279

CLIP

1шт.

33

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

1шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

35

86629540

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

36

14463881

O-RING,1.359" ID x 0.139" Width

3шт.
