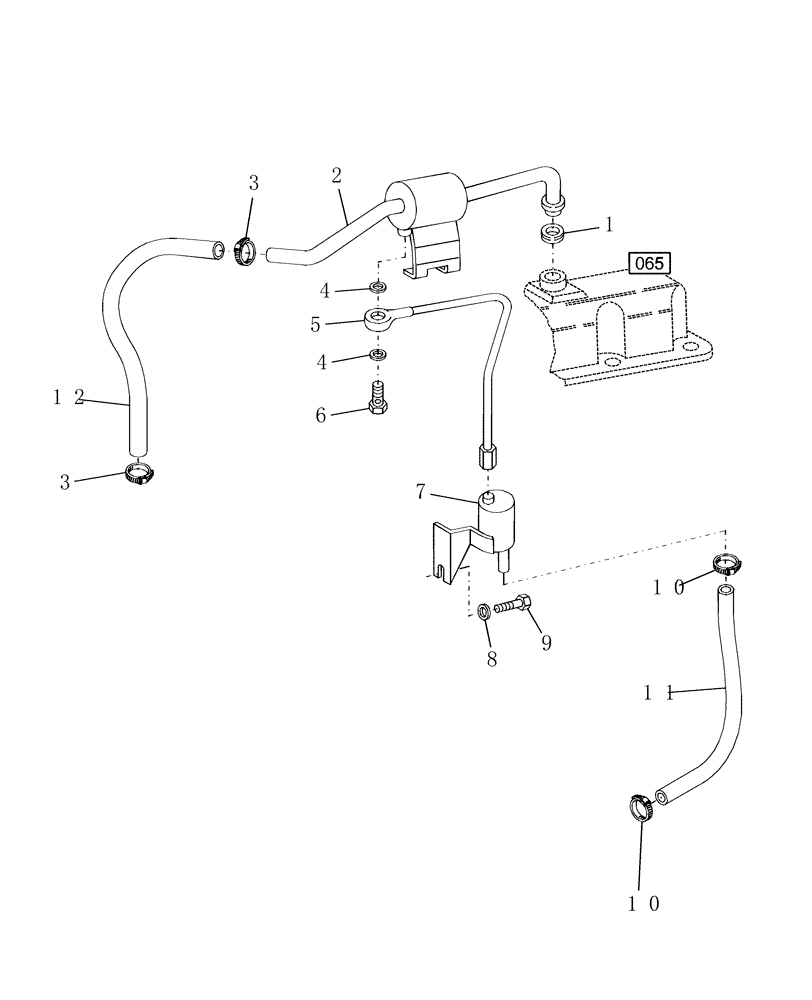

Запчасти Case IH WDX1701 (064B) - VALVE COVER BREATHER (10) - ENGINE

1

83958239

GROMMET

1шт.

2

87802011

BREATHER

1шт.

3

82012723

CLAMP

2шт.

4

87801445

COPPER WASHER,12.3mm ID x 17mm OD x 1.75mm Thk

2шт.

5

87802012

TUBE,8.05 mm OD x 204, 185 mm L

1шт.

6

87801024

BOLT,Oil Supply Tube Connector, M12 x 1.5 x 24mm, Cl 8.8

M12 x 1.5

1шт.

7

87802007

OIL SEPARATOR

1шт.

8

81825806

WASHER

1шт.

9

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

1шт.

10

10186590

CLAMP,11mm - 13mm

2шт.

11

87802014

TUBE,8mm ID x 360mm L

1шт.

12

518616

HYDRAULIC HOSE,1.00" ID x 40.00", SAE 30R2 TYPE2

1шт.
