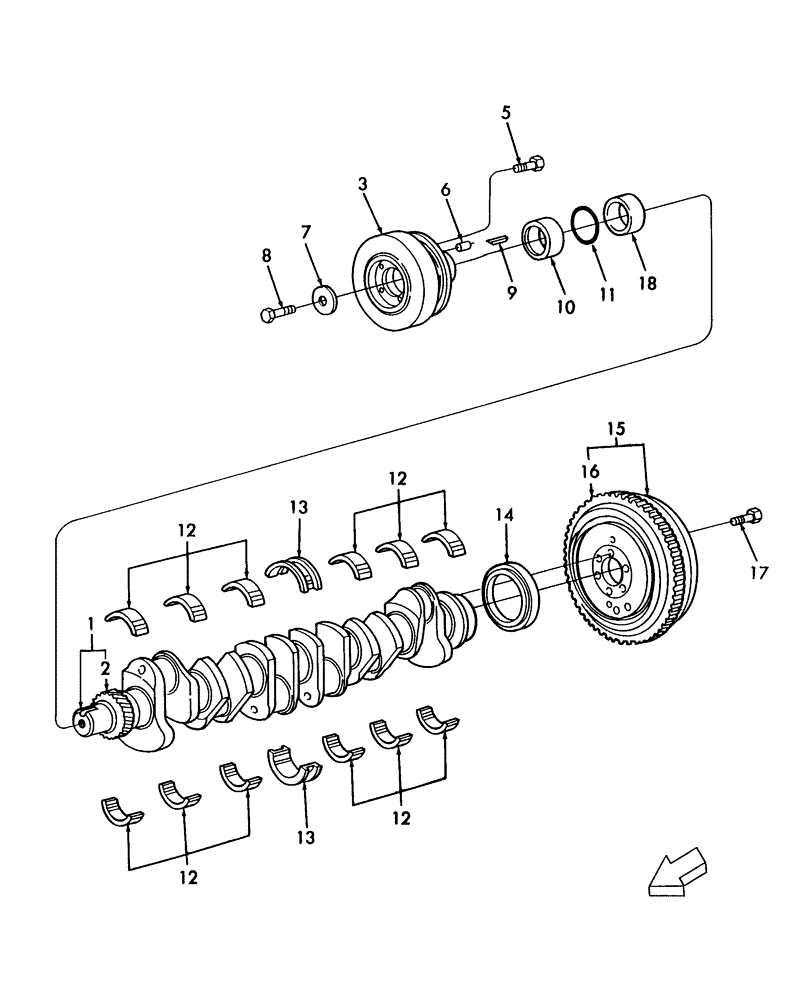

Запчасти Case IH WDX1701 (064) - ENGINE, CRANKSHAFT, BEARINGS & FLYWHEEL (10) - ENGINE
№
Артикул
Название
Примечание
Количество
1
87840156
CRANKSHAFT
1шт.
1
84203506R
REMAN-CRANKSHAFT
WDX1701 CASE IH SELF PROPELLED WINDROWER TRACTOR (11/01-11/04), Reman for New PN 87840156. Reman Crankshaft Does Not Come With Main or Rod Bearings Due to The Selection of Bearing Specific to Tapered Or Straight Connecting Rods. Bearing Will Need To Be Purchased After Reman Crankshaft Has Been Receiver And Journal/Bearing Size Determined.
1шт.
1
84203506C
CORE-CRANKSHAFT
Return Number
1шт.
2
E9HN6306AB
GEAR
1шт.
3
87802666
DAMPER,193.04mm OD
1шт.
5
56558S36
SCREW
7/16"-14 x 3/4"
8шт.
6
64780
DOWEL,1/4" x 1/2", HDN
1/4" x 1/2"
1шт.
7
83990589
WASHER,19.68mm ID x 59.689mm OD x 8.13mm Thk
Flat, 3/4"
1шт.
8
82895561
BOLT,Hex, 3/4" - 16 x 1 3/4", Gr 5
Cap, HH, G5, 3/4"-16 x 1-3/4"
1шт.
9
83956433
WOODRUFF KEY
Taper, 3/8" x 5/16" x 1.91"
1шт.
10
87800705
SPACER,44.5mm ID x 60.4mm OD x 25.98mm L
Crankshaft Pulley
1шт.
11
14459080
O-RING,0.103" Thk x 1.737" ID, -132, Cl 5, 75 Duro
1шт.
12
87790261
CRANKSHAFT BEARING
.002"
1шт.
12
87790262
CRANKSHAFT BEARING
.010" U/S
1шт.
12
87790263
CRANKSHAFT BEARING
.020" U/S
1шт.
12
87790264
CRANKSHAFT BEARING,THRUST WASHERS +.762mm
.030" U/S
1шт.
12
87790265
SET OF MAIN BRGS -
.040" U/S
1шт.
13
87790267
BEARING SET
Thrust, .002" U/S
1шт.
13
87790268
CRANKSHAFT BEARING
Thrust, .010" U/S
1шт.
13
87790269
CRANKSHAFT BEARING
Thrust, .020" U/S
1шт.
13
87790270
BEARING SET
Thrust, .030" U/S
1шт.
13
87790271
SET OF THRUST WASHER
Thrust, .040" U/S
1шт.
14
83955247
SEAL,120.6mm ID x 141.12mm OD x 11.81mm Thk
Rear Oil
1шт.
See Service Bulletins Attached
1шт.
14
87381732
SEAL,122mm ID x 142mm OD x 15mm Thk
See Service Bulletins Attached
1шт.
15
86552507
ENGINE FLYWHEEL
1шт.
16
83949153
RING GEAR
1шт.
17
83909956
BOLT,Hex, 9/16" - 18 x 1 5/8", Gr 8
Self-Locking, 9/16"-18 x 1-5/8"
8шт.
