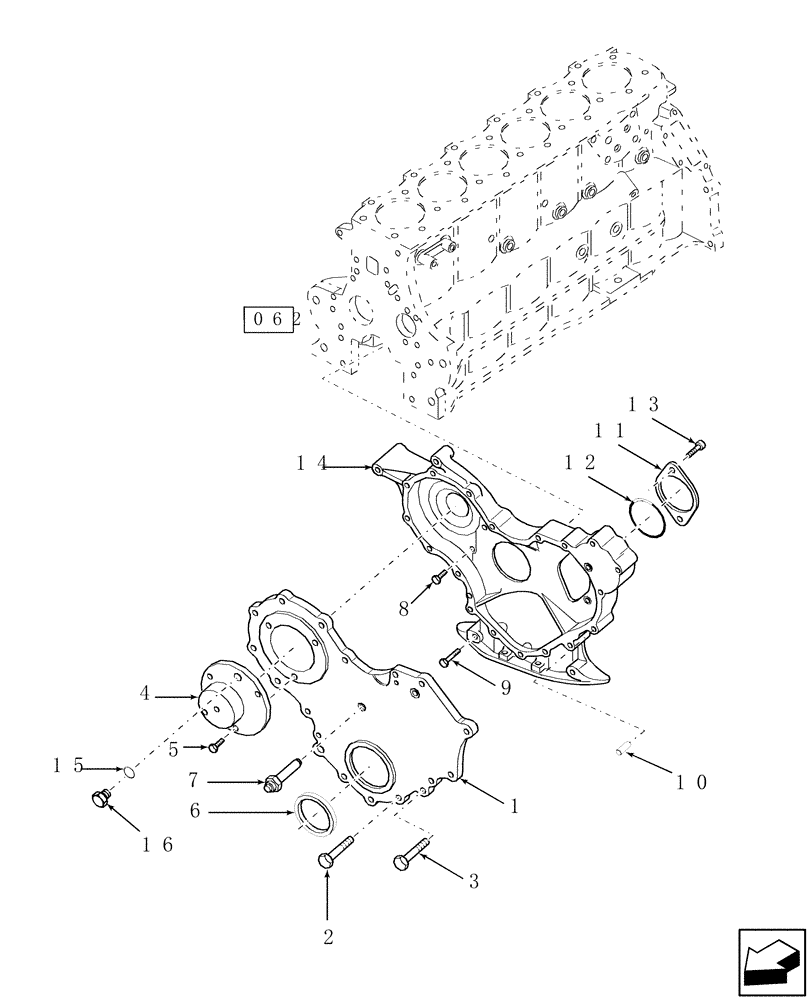

Запчасти Case IH WDX1701 (063A) - ENGINE BLOCK COVERS, FRONT (10) - ENGINE

1

87801142

COVER

Front

1шт.

2

81868740

BOLT

Flg Hd, 3/8"-16 x 1-1/4"

9шт.

3

82850968

FLANGE BOLT,Hex, 3/8" - 16 x 3 1/4"

3/8"-16 x 3-1/4"

7шт.

4

87801961

COVER

Injection Pump Timing

1шт.

5

83995273

FLANGE BOLT,Hex, 3/8" - 16 x 0.88"

Flg Hd, G5, 3/8"-16 x .88"

3шт.

6

87800696

SEAL

Crankshaft Front

1шт.

7

F2NN6023AA

POINTER

Timing

1шт.

8

83958244

LOCK BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16"-18 x 7/8"

4шт.

9

81868740

BOLT

Flg Hd, 3/8"-16 x 1-1/4"

2шт.

10

81808472

DOWEL

3/8" x 1-1/8"

2шт.

11

81803219

COVER

Power Steering

1шт.

12

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

13

83925618

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

14

87801141

COVER

Gearcase, Engine Front

1шт.

15

10281385

SEAL,16.3mm ID x 22mm OD x 0.22mm Thk

1шт.

16

10300714

PLUG,M16 x 1.5 x 14

1шт.
