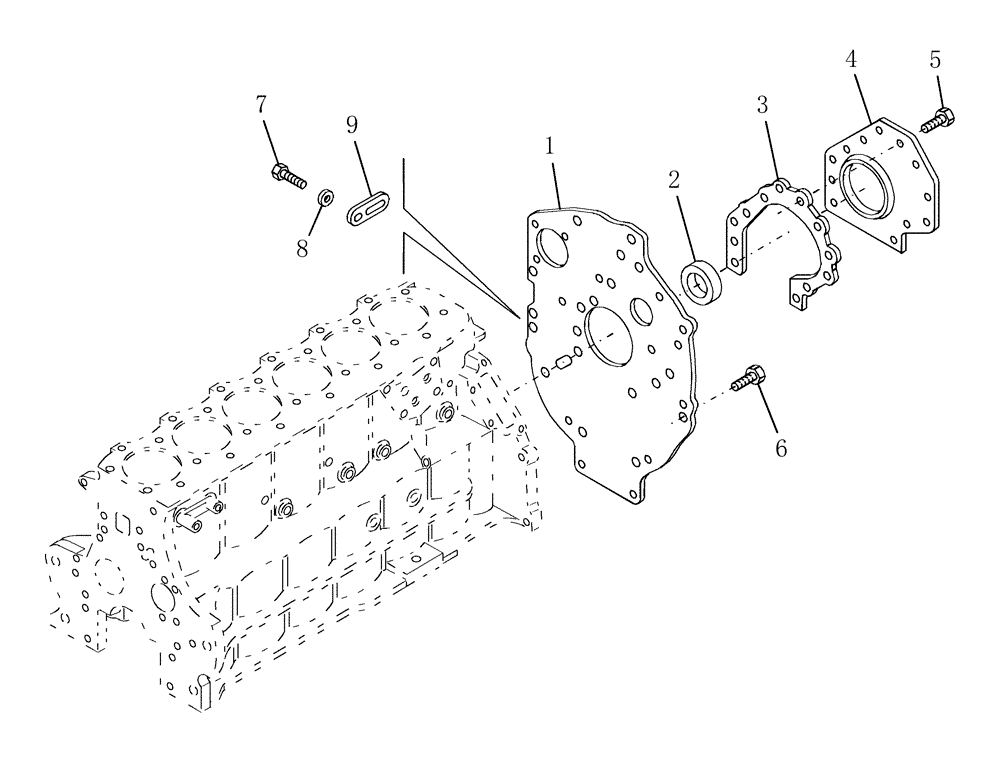

Запчасти Case IH WDX1701 (062[1]) - ENGINE BLOCK COVERS, REAR (10) - ENGINE

1

83998895

PLATE

1шт.

2

83955247

SEAL,120.6mm ID x 141.12mm OD x 11.81mm Thk

See Service Bulletins Attached

1шт.

3

87801610

GASKET,0.4mm Thk

1шт.

4

87801619

PLATE

1шт.

5

81876604

BOLT,Hex Flg, 5/16" - 18 x 5/8"

Hex Flg Hd, G5, 5/16"-18 x .62"

12шт.

6

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

8

492-11031

LOCK WASHER,5/16"

1шт.

9

81804217

COVER

1шт.
