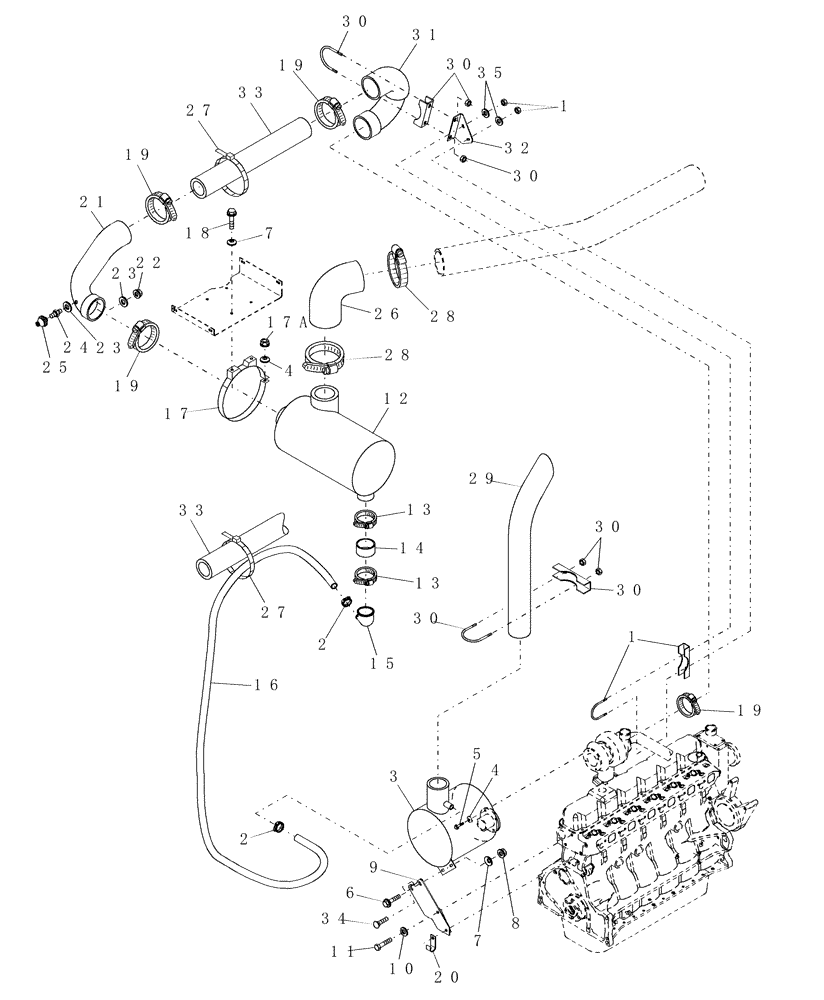

Запчасти Case IH WDX1701 (060) - AIR CLEANER & MUFFLER (10) - ENGINE

1

129172

CLAMP

1шт.

2

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

3

86535167

MUFFLER

1шт.

4

492-11031

LOCK WASHER,5/16"

6шт.

5

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

6

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

8

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

9

86535218

SUPPORT

1шт.

10

492-11044

LOCK WASHER,7/16"

2шт.

11

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

2шт.

12

86544086

HOUSING

Air, Refer to Fig. 061

1шт.

13

82012731

HOSE CLAMP,77mm - 95mm, Worm Gear

2-13/16"

2шт.

14

9806183

INTAKE AIR HOSE,76.00 mm ID x 45.00 mm, SAE J200

1шт.

15

9844803

ELBOW

1шт.

16

86500979

HOSE,25.40 mm ID x 1473.00 mm, SAE J20R3 Class D2

1шт.

17

9617458

BAND

2шт.

Use Ref. #17A and Lockwasher, 322358, Ref. #4 W/Existing Bolt

1шт.

17a

425-285

FLANGE NUT,Flg, 5/16"-18, G5

2шт.

18

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

4шт.

20

134577

CLIP,J

1шт.

Not on Units after 2001

1шт.

21

86535524

ELBOW

Intake

1шт.

22

85700693

NUT,5/8" - 11, Gr C

1шт.

23

495-21019

WASHER,#8

2шт.

24

799871

ADAPTER

Switch Mounting

1шт.

25

82003527

RESTRICTION SWITCH

Air

1шт.

26

86526516

ELBOW

1шт.

27

594116

CABLE TIE,5/16" W x 21.5" L

CABLE STRAP 5/16" x 21-1/2"

1шт.

28

337049

CLAMP,137mm - 150mm

2шт.

29

86588745

EXHAUST SYSTEM PIPE

1шт.

30

638960

CLAMP

2шт.

31

87043867

HOSE,101.60 mm ID x 260.30 mm, SAE J200

1шт.

32

86610667

BRACKET

1шт.

33

86522760

TUBE,101.60 mm OD x 690.00 mm L

1шт.

34

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

35

495-21038

WASHER,5/16"

2шт.
