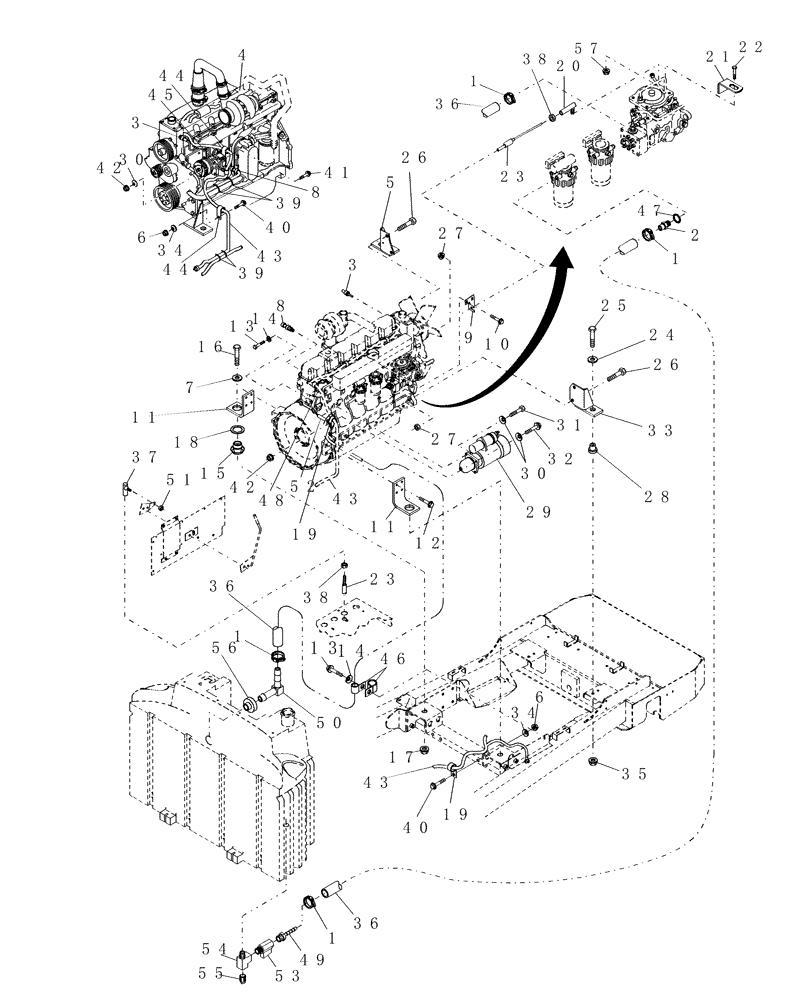

Запчасти Case IH WDX1701 (058[1]) - ENGINE ATTACHING PARTS (10) - ENGINE

1

82012717

HOSE CLAMP,11 x 17mm

4шт.

2

82012598

FITTING

Fuel Hose, 1/2-20

1шт.

3

9712608

TEMPERATURE SENDER,3/8" - 18

Water Temperature

1шт.

4

87802945

ENGINE

168 HP

1шт.

5

86634851

SUPPORT

RH

1шт.

6

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

7

86545287

WASHER,25.9mm ID x 101.6mm OD x 4.8mm thick

25.9mm I.D. x 101.6mm O.D. x 4.8mm Thick

2шт.

8

81869698

SENDER UNIT

Oil Pressure

1шт.

9

86634850

SUPPORT

1шт.

10

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

11

86634853

SUPPORT

2шт.

12

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

8шт.

13

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

1шт.

14

492-11044

LOCK WASHER,7/16"

1шт.

15

86550699

INSULATOR

2шт.

16

413-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

2шт.

17

231-41416

NUT,1"-8, GB

2шт.

18

9823910

WASHER

65mm I. D. x 95mm O.D. x 3.5mm Thick

2шт.

19

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

3шт.

20

86550597

BALL JOINT,1/4" -28 x 1

1шт.

21

86554265

ANGLE

1шт.

22

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

1шт.

23

710412

CABLE

1шт.

24

86545286

WASHER

5/8" I.D.

2шт.

25

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

2шт.

26

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

4шт.

27

86534279

FLANGE NUT,Flg, 3/4"-10, G8

4шт.

28

86550698

INSULATOR

2шт.

29

86628964

STARTER MOTOR

Refer to Fig 058A

1шт.

29

86628964R

REMAN-STARTER

1шт.

29

86628964C

CORE-STARTER

Return Number

1шт.

30

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

3шт.

31

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

32

86562215

FLANGE BOLT,3/8"-16 x 1.75", Cl 5

Flg Hd, G5, 3/8"-16 x 1-3/4"

1шт.

33

86634852

SUPPORT

LH

1шт.

34

492-11031

LOCK WASHER,5/16"

2шт.

35

85700693

NUT,5/8" - 11, Gr C

2шт.

36

690681

HOSE,7.94mm ID x 3352.8mm L, SAE 30R7

Cut to Fit

1шт.

37

103557

BALL JOINT

1шт.

38

425-114

NUT,1/4"-28, G5

2шт.

39

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

40

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

41

458-620

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

1шт.

42

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

43

86626489

WIRE HARNESS

Engine

1шт.

43

9609190

HYD CONNECTOR

1шт.

43

900363

TERMINAL

7шт.

43

900367

TERMINAL

Sealing

2шт.

44

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

2шт.

45

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

46

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

48

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

49

86599523

HYD CONNECTOR

1шт.

50

86537555

ELBOW

1шт.

51

231-4644

LOCK NUT,1/4"-28, GB

1шт.

52

617215

MOLDING

1шт.

53

86599520

RESTRICTOR VALVE

1шт.

54

86599519

3 WAY CONNECTION

3/8"

1шт.

55

NH772441

PLUG,Sq Hd, 3/8" NPTF, Brass

3/8"

1шт.

56

86537556

BUSHING

1шт.

57

86625070

NUT,Keps, w/LW,#10-32

1шт.

47

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.
