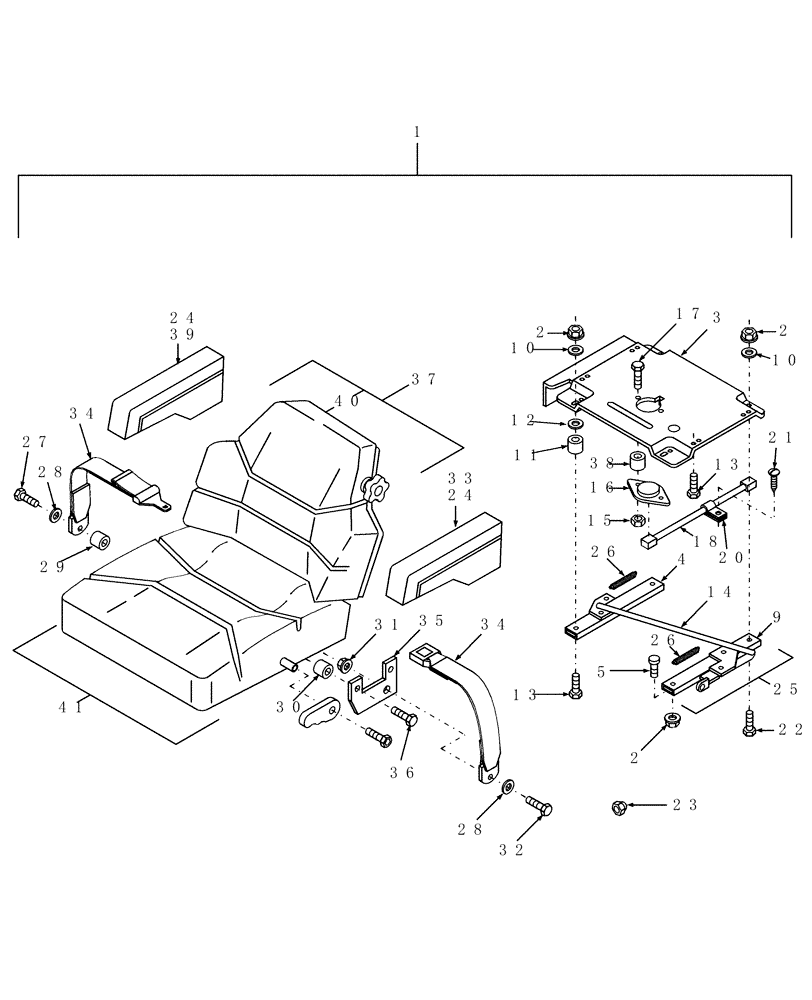

Запчасти Case IH WDX1701 (020) - SEAT, AIR SUSPENSION, UPPER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86618598

SEAT ASSY.

Complete

1шт.

WDX1101 & WDX1701 Only

1шт.

Includes: Upper & Lower, Pages 019 & 020

1шт.

1

86618599

SEAT ASSY.

Complete

1шт.

WDX901-Only

1шт.

2

280736

NUT,5/16"-18, GC

8шт.

3

86556250

ADAPTER

1шт.

WDX1101 & WDX1701 Only

1шт.

3

86641127

PLATE

Adapter

1шт.

WDX901-Only

1шт.

4

NSS

NOT SOLD SEPARAT

Locking Slide, Part of Ref. 25

1шт.

5

417-512

BOLT,Sq Hd, 5/16" - 18 x 3/4", Gr 2

4шт.

6

86555664

SUSPENSION

Air (Not Shown)

1шт.

See Fig. "Air Suspension, Lower"

1шт.

7

NSS

NOT SOLD SEPARAT

Boot, Air Suspension, Part of Kit 9845758, (Not Shown)

1шт.

See Fig. "Air Suspension, Lower"

1шт.

8

NSS

NOT SOLD SEPARAT

Clips, Part of Kit #9845758 (Not Shown)

22шт.

9

NSS

NOT SOLD SEPARAT

Locking Slide W/ Handle, Part of Ref. 25

1шт.

10

495-11034

WASHER,5/16", SAE

4шт.

11

143541

SPACER

2шт.

12

80140041

WASHER

6шт.

WDX1101 & WDX1701 Only

1шт.

12

495-11047

WASHER,7/16", SAE

4шт.

WDX901-Only

1шт.

13

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

6шт.

WDX1101 & WDX1701 Only

1шт.

Used to mount Seat to Adapter Plate and Adapter Plate Front to Locking Slides

1шт.

14

NSS

NOT SOLD SEPARAT

Slide Latch Wire, Part of Ref. 25

1шт.

15

425-104

NUT,1/4"-20, Cl 5

2шт.

16

86502159

KIT

Seat

1шт.

17

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

18

9846601

WIRE HARNESS

Seat Switch

1шт.

19

NSS

NOT SOLD SEPARAT

Serial Number Decal (Not Shown)

1шт.

20

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

1шт.

21

88568

SELF-TAP SCREW,Hex Hd, #10 x 5/8"

1шт.

22

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

2шт.

WDX1101 & WDX1701 Only

1шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

WDX901-Only

1шт.

23

9845758

KIT

Push Nut

3шт.

24

38-12424

LOCK PIN,3/8" x 1 1/2", Slotted

Part of Arm Rest, Ref. 33 (Not Shown)

1шт.

25

9845773

KIT

Double Locking Slides Kit, Includes Ref. 4, 9, 14, & 26

1шт.

WDX1101 & WDX1701 Only

1шт.

25

86640351

KIT

Locking Slides, Includes Ref. 4, 9, 14, & 26

1шт.

WDX901-Only

1шт.

26

9845781

SPRING

Part of Ref. 25

2шт.

27

86512040

BOLT,Hex, 7/16" - 20 x 2", Gr 8

1шт.

28

48917

WASHER

15/32" ID

2шт.

29

86636722

SPACER,12.62mm ID x 19.05mm OD x 15.75mm L

1шт.

30

696365

SPACER

2шт.

31

280980

NUT,7/16"-14, GC

1шт.

32

50217

BOLT

1шт.

33

1981818C1

ARMREST

LH, W/ Pin, (Ref. 24)

1шт.

34

86530940

SAFETY BELT ,48.00 mm W

1шт.

35

86555665

BRACKET

1шт.

36

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

37

86639486

BACKREST

1шт.

WDX1101 & WDX1701 Only

1шт.

37

86639484

CUSHION

Backrest

1шт.

WDX901-Only

1шт.

38

86508380

SPACER

Seat Presence Switch

2шт.

39

9846602

ARMREST

RH, W/ Pin, (Ref. 24)

1шт.

WDX901-Only

1шт.

40

86639818

BACKREST

Cover

1шт.

WDX1101 & WDX1701 Only

1шт.

40

86639817

BACKREST

Kit, Seat Cover

1шт.

WDX901-Only

1шт.

41

86639485

CUSHION, SEAT

1шт.

WDX1101 & WDX1701 Only

1шт.

41

86639483

CUSHION

Seat Pan

1шт.

WDX901-Only

1шт.

42

9845771

SERVICE KIT

Knob

1шт.

Not shown

1шт.
